Home >> Pontiac >> 1995 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications - Engine Mounts

Fastener Tightening Specifications - Engine Mounts

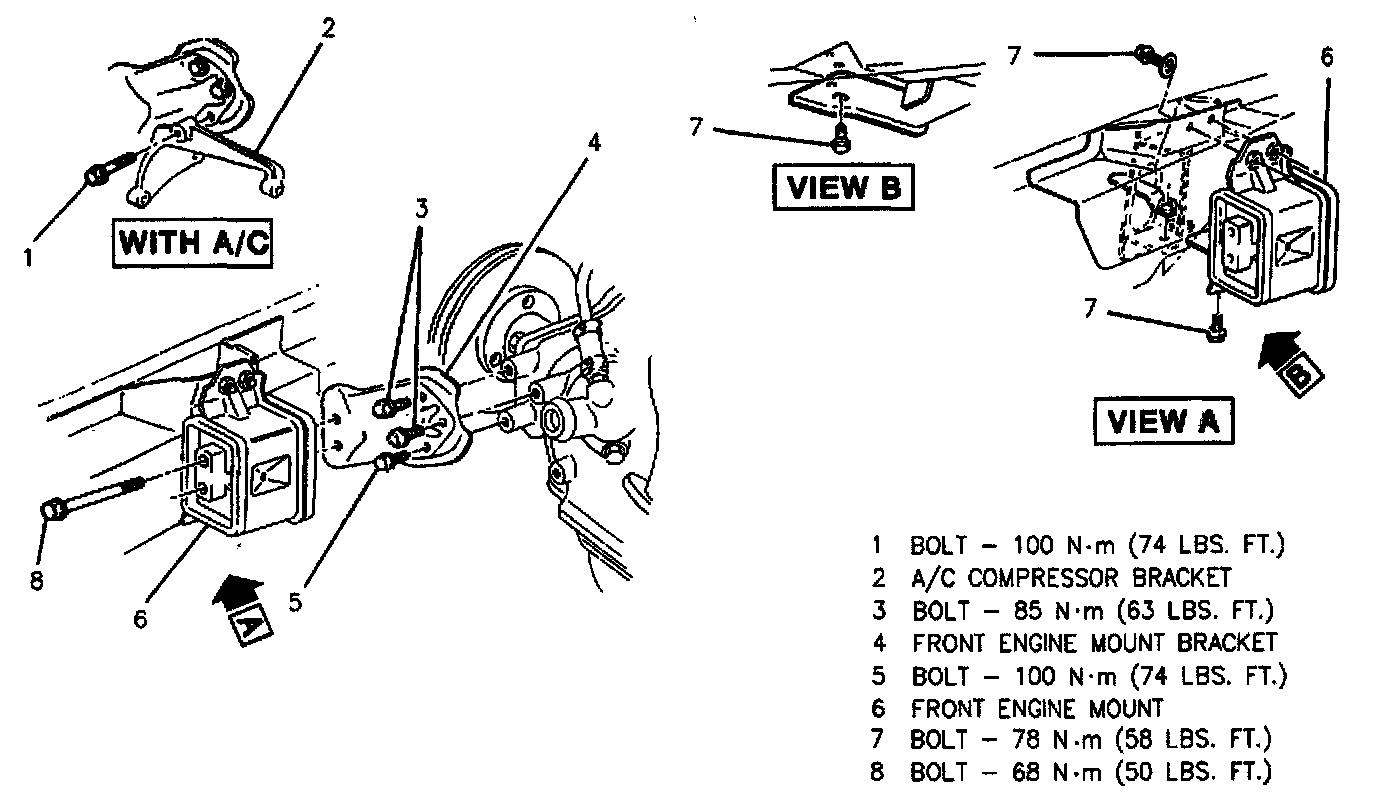

Engine Mount (Front) & Torque Specifications:

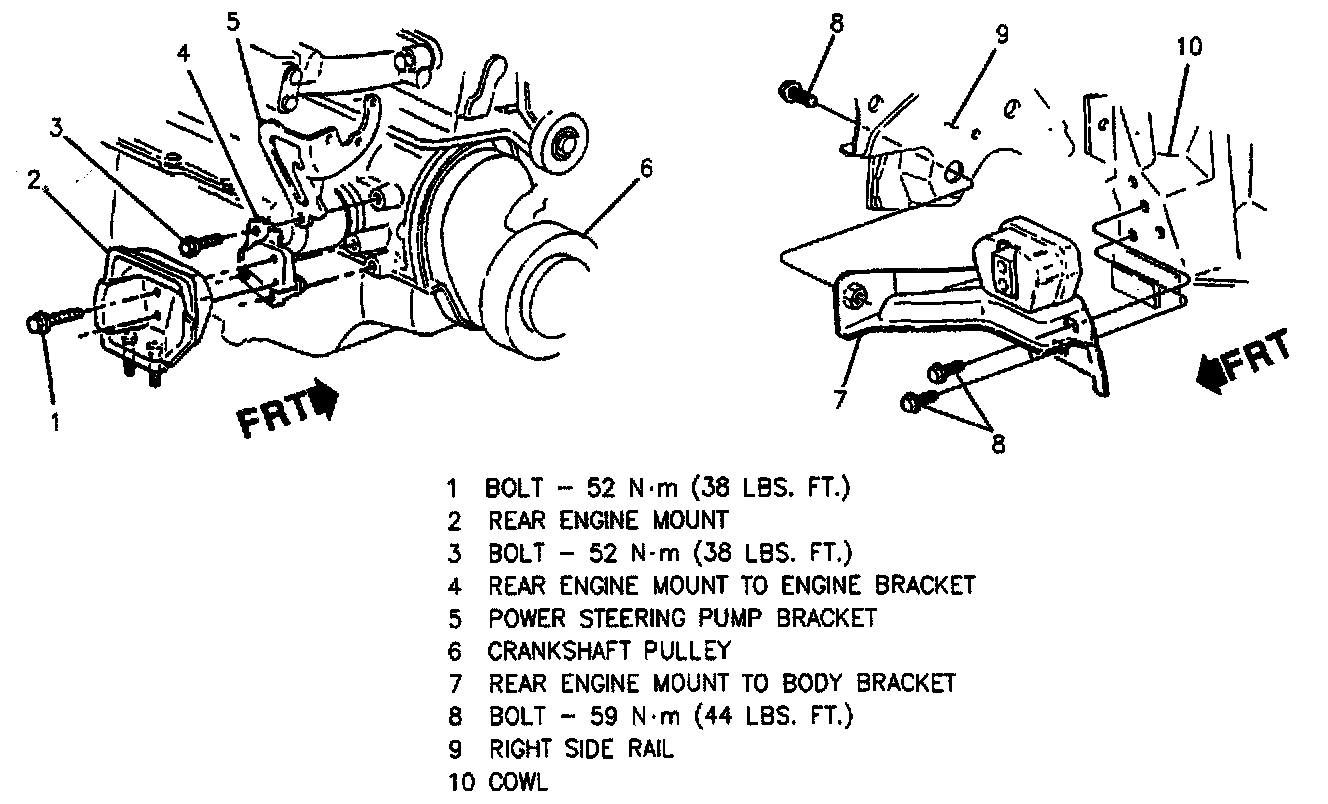

Engine Mount (Rear) & Torque Specifications:
