Engine Control Module

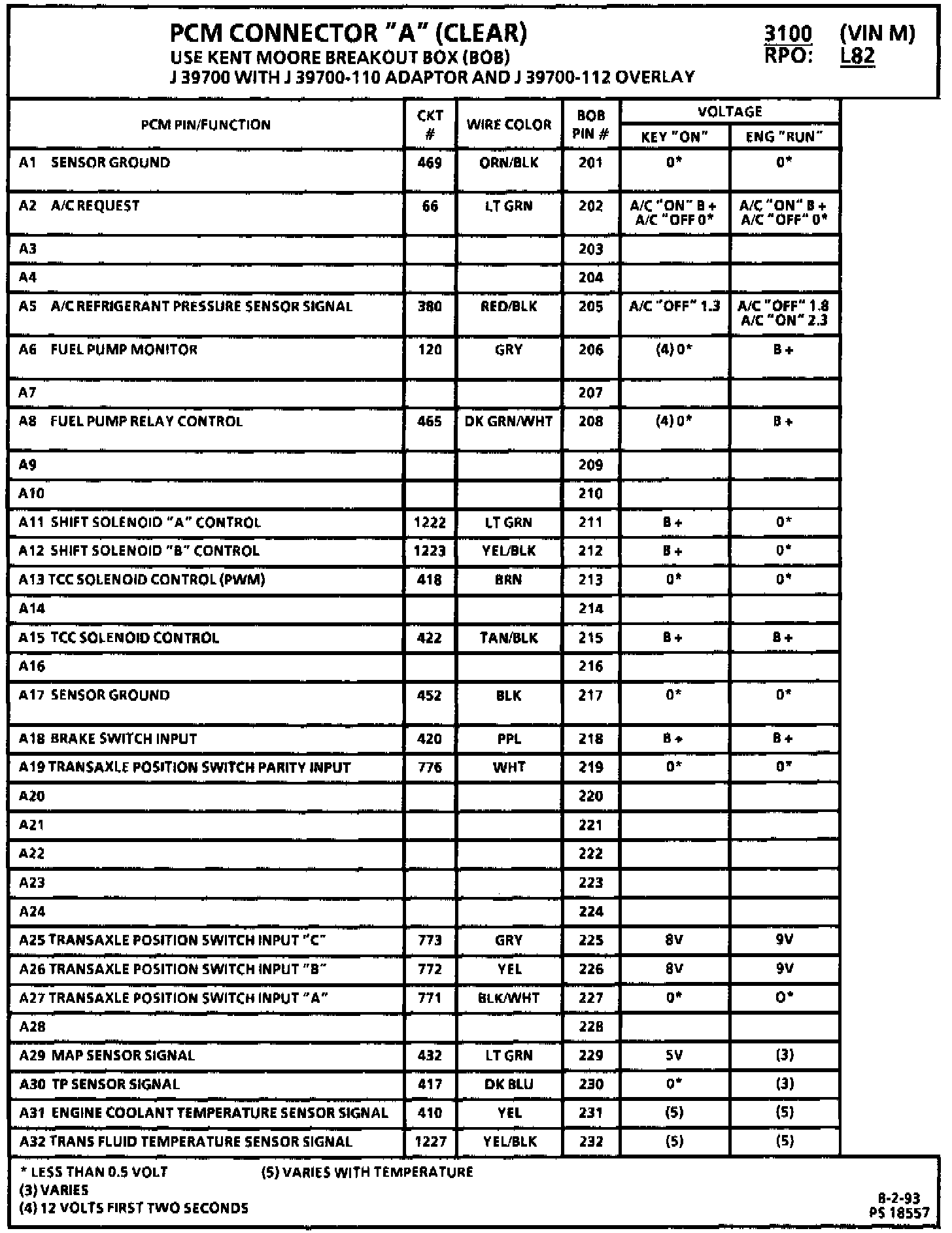

PCM Connector End View 1 Of 3:






PCM Connector A

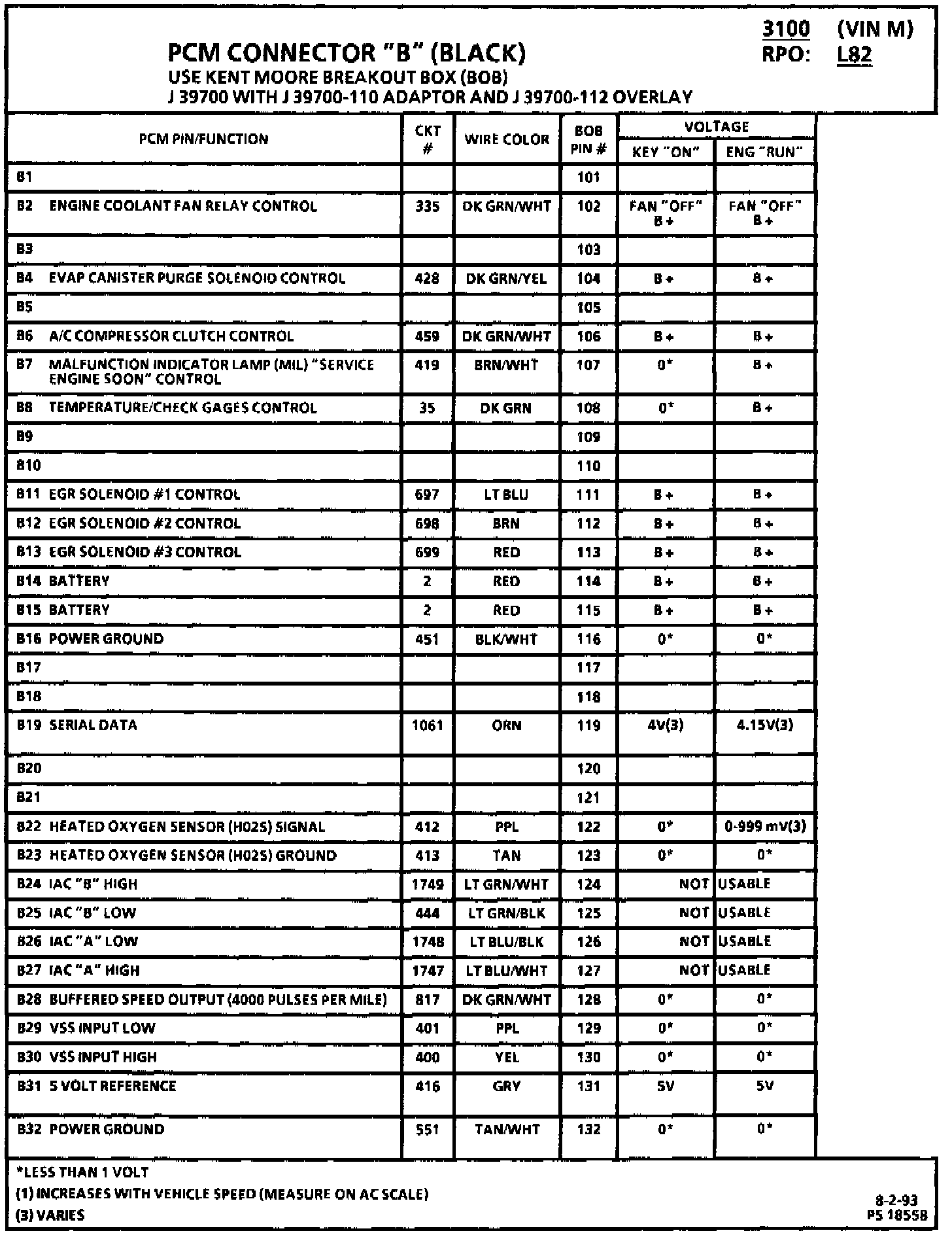

PCM Connector End View 2 Of 3:






PCM Connector B

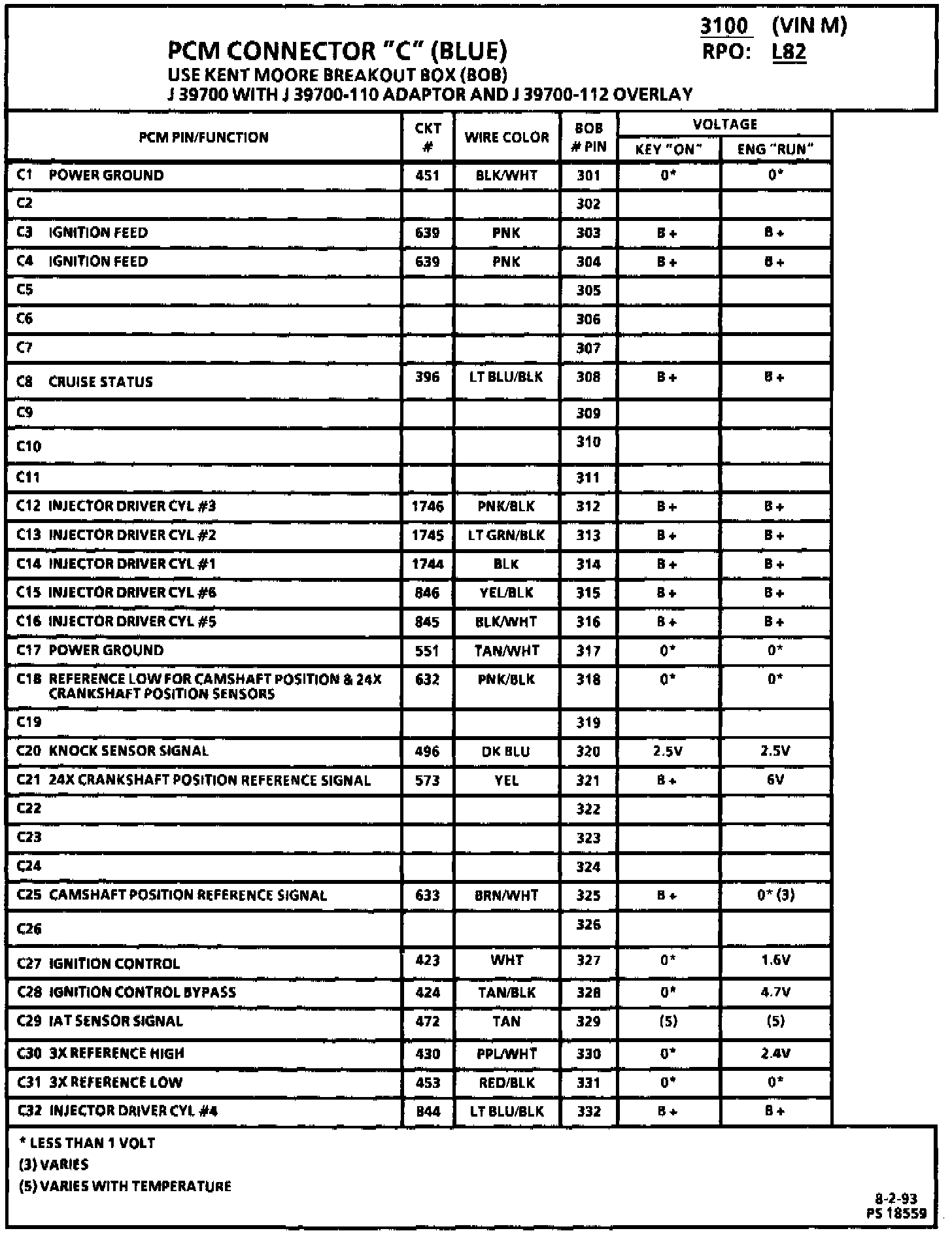

PCM Connector End View 3 Of 3:






PCM Connector C
