Home >> Pontiac >> 1983 >> T1000 L4-111 1.8L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Technical Service Bulletins >> All Technical Service Bulletins >> Computer Command Control - Updated Diagnostic Charts >> Chart "Code 12"

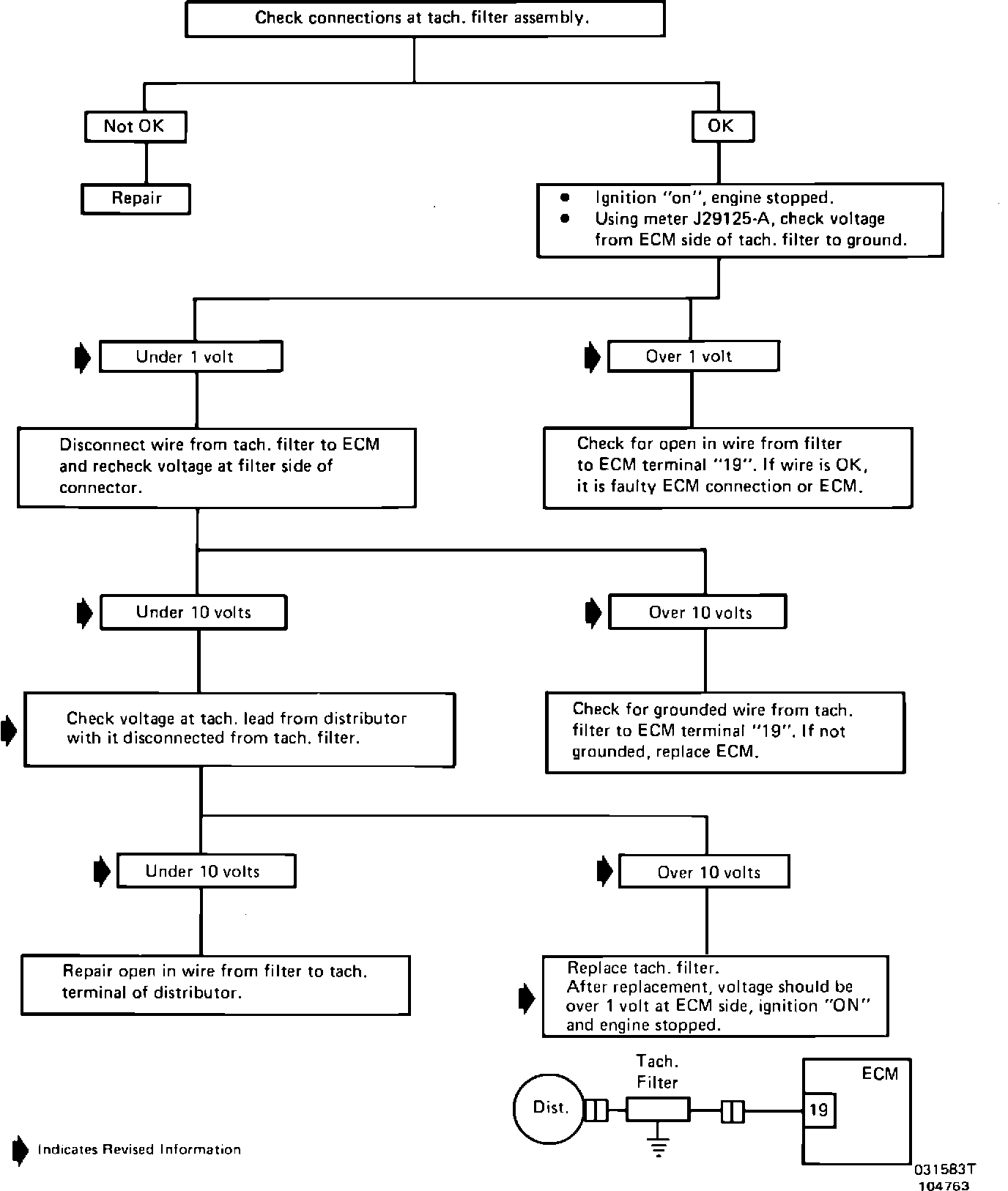

Chart "Code 12"

1983 CCC T CAR TROUBLE CODE 12NO DISTRIBUTOR REFERENCE PULSE TO THE ECM:
