Pontiac
>>
1982
>>
Grand Prix V8-350 5.7L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Glow Plug System
>>
Glow Plug Relay
>>
Locations

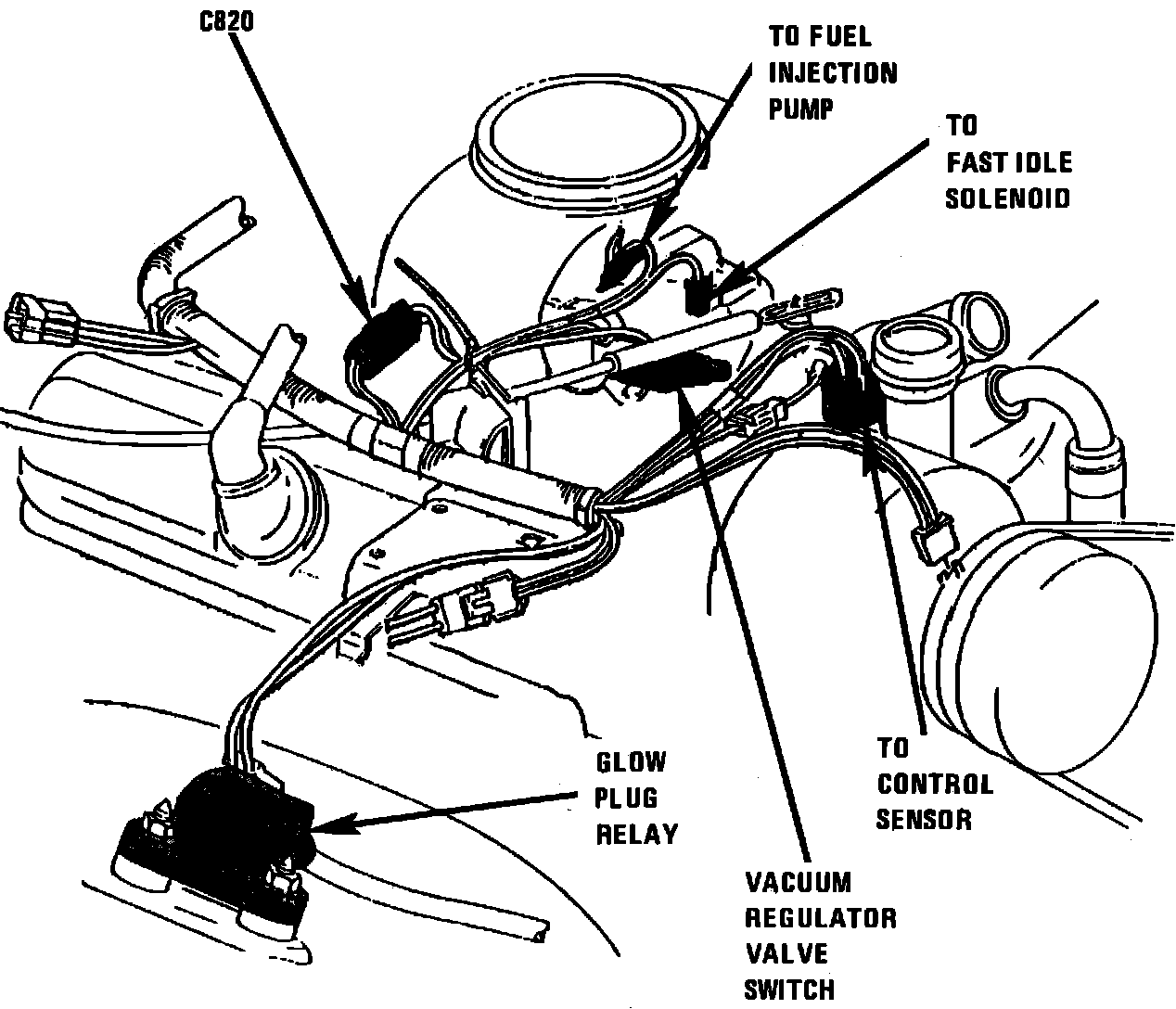

Glow Plug Relay: Locations
RH Side Of Engine Compartment.:
RH Wheelwell
Applicable to: 1982 Grand Prix & Bonneville w/Diesel Engine
