Oxygen Sensor: Locations

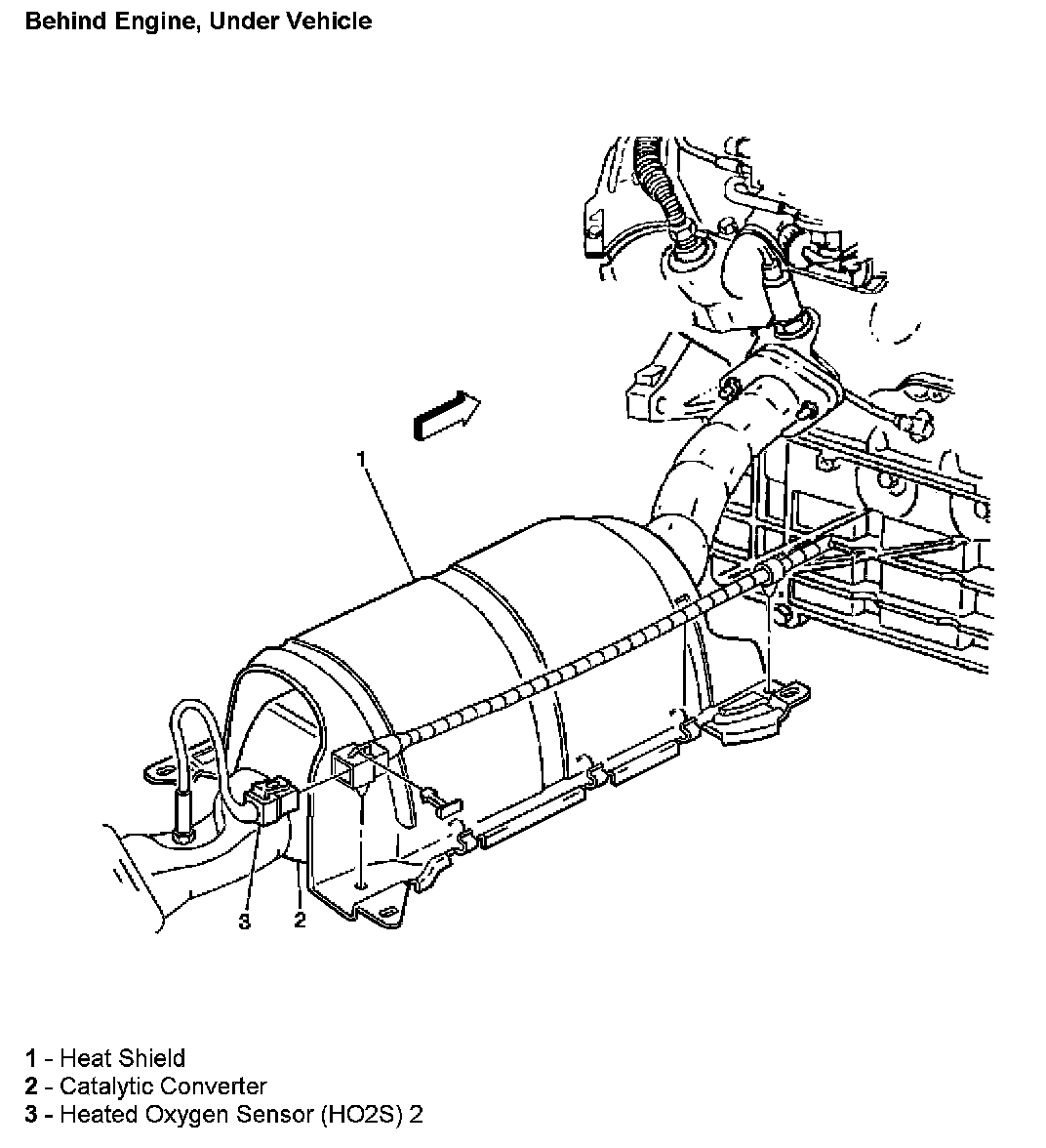

Behind Engine Under Vehicle:



Rear Of Engine:



Left Rear Of Engine:

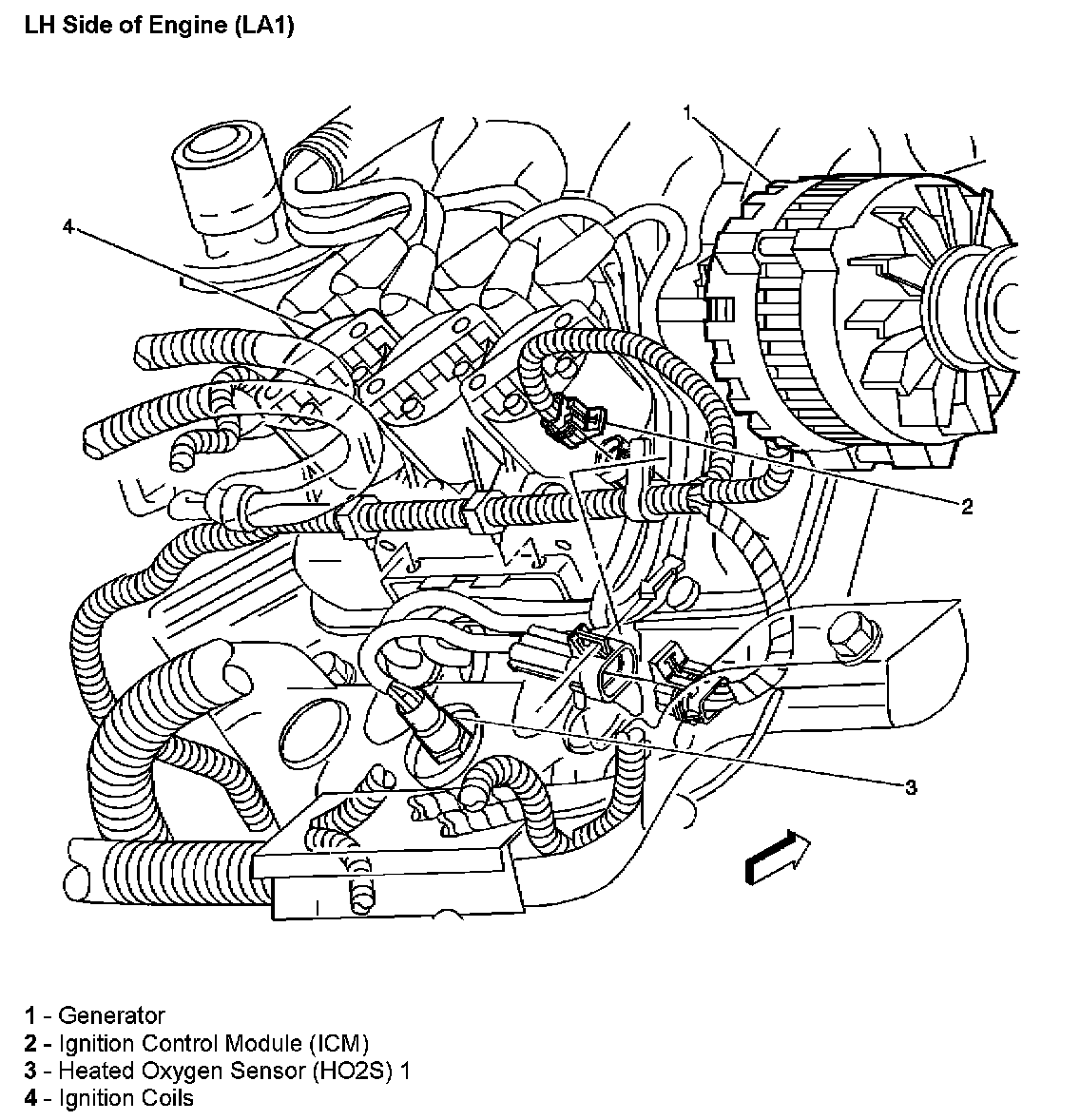

LH Side Of Engine:
