Home >> Pontiac Truck >> 2004 >> Montana AWD V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Locations

Ignition Control Module: Locations

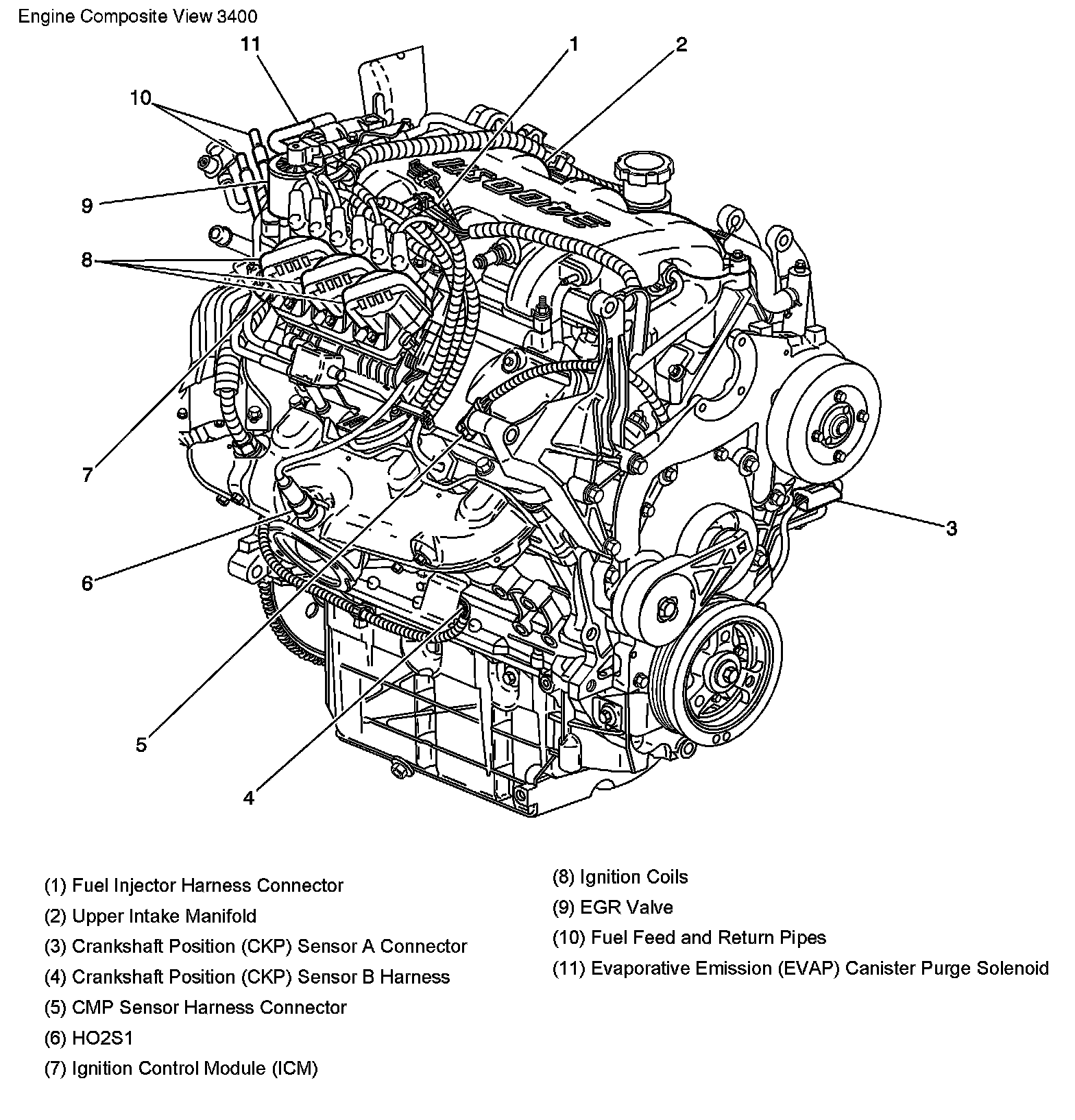

Engine Composite View 3400:

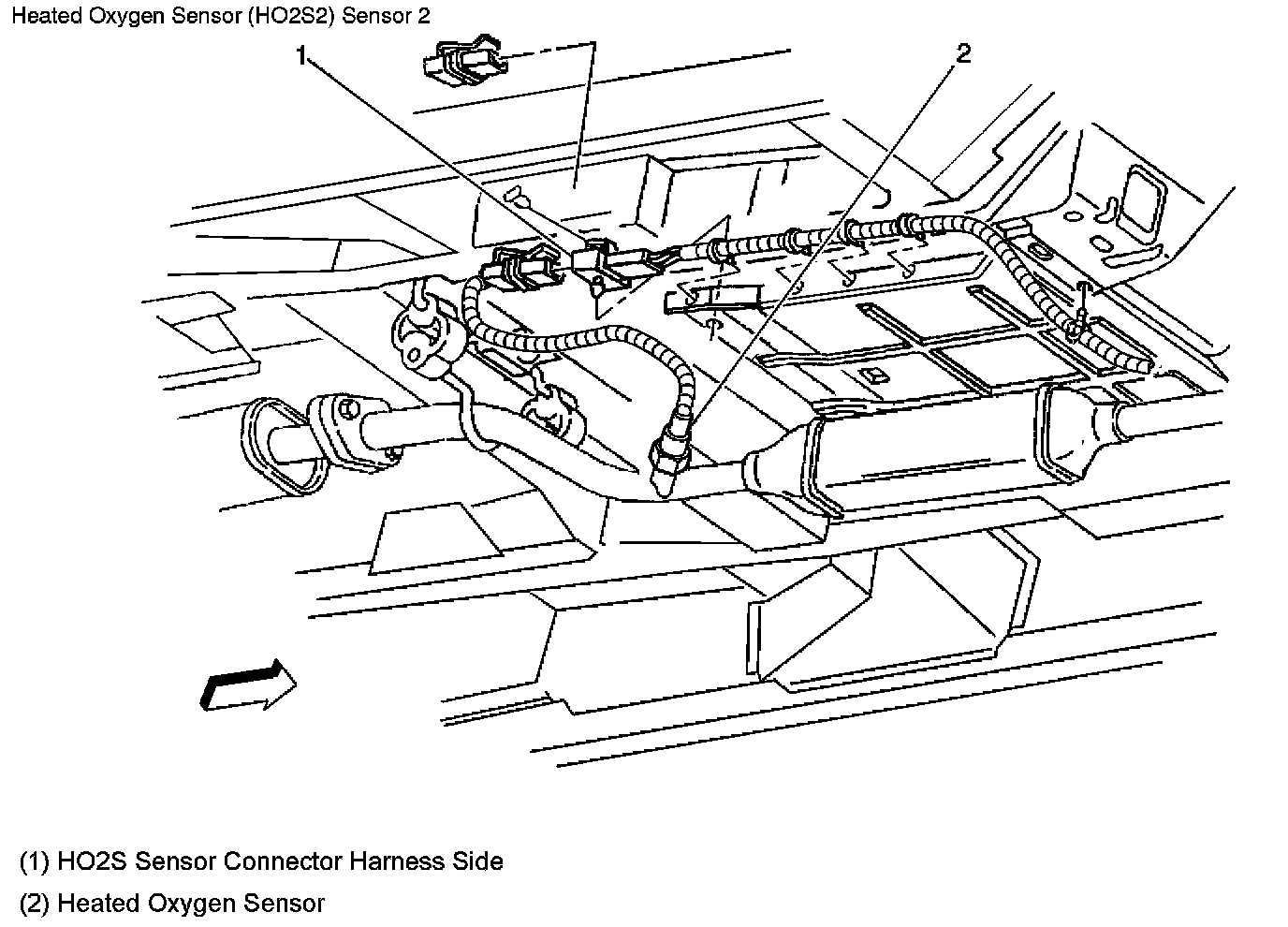

Heated Oxygen Sensor (HO2S2) Sensor 2:
