Home >> Pontiac Truck >> 2004 >> Aztek AWD V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

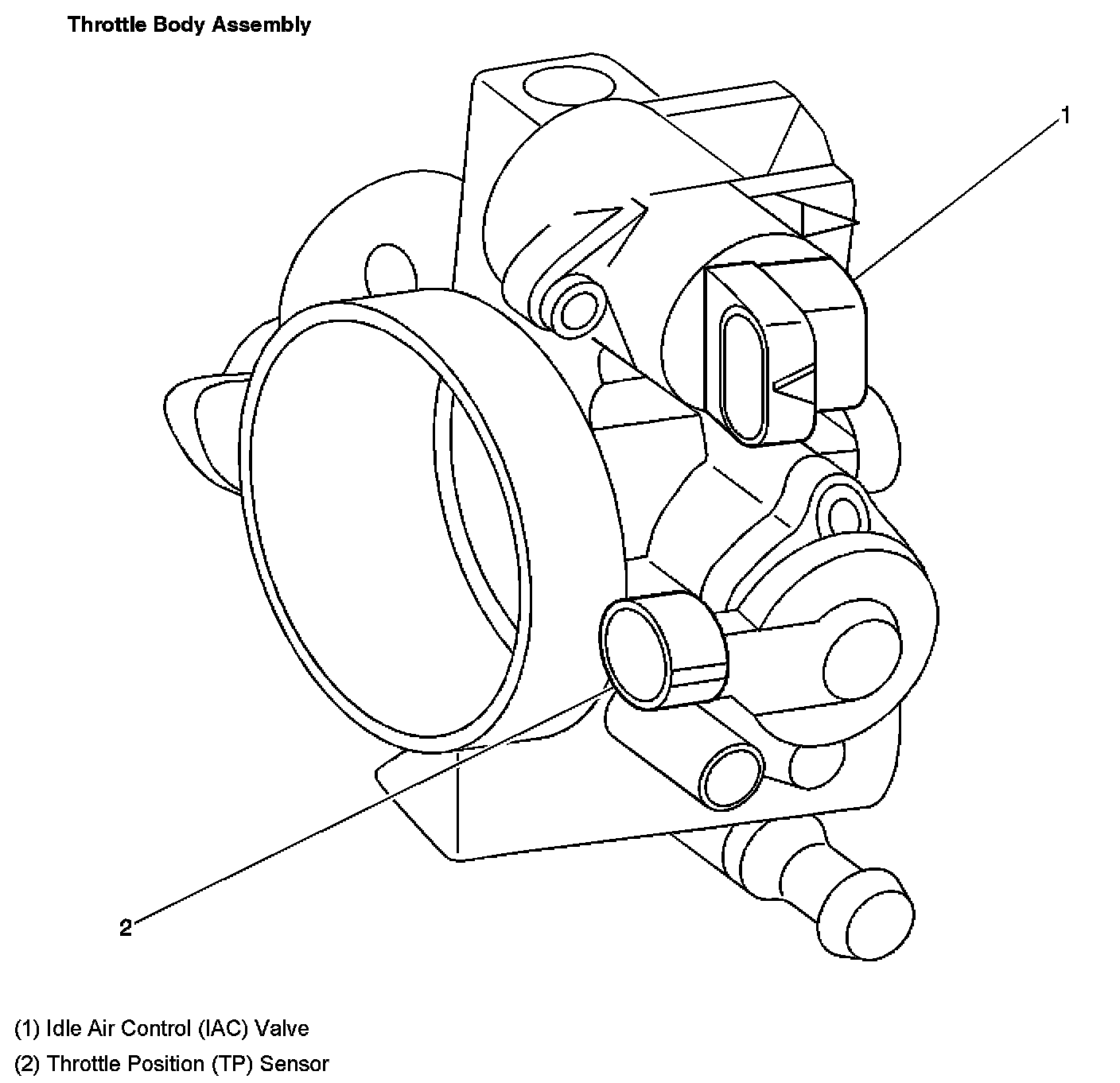

Throttle Body Assembly:

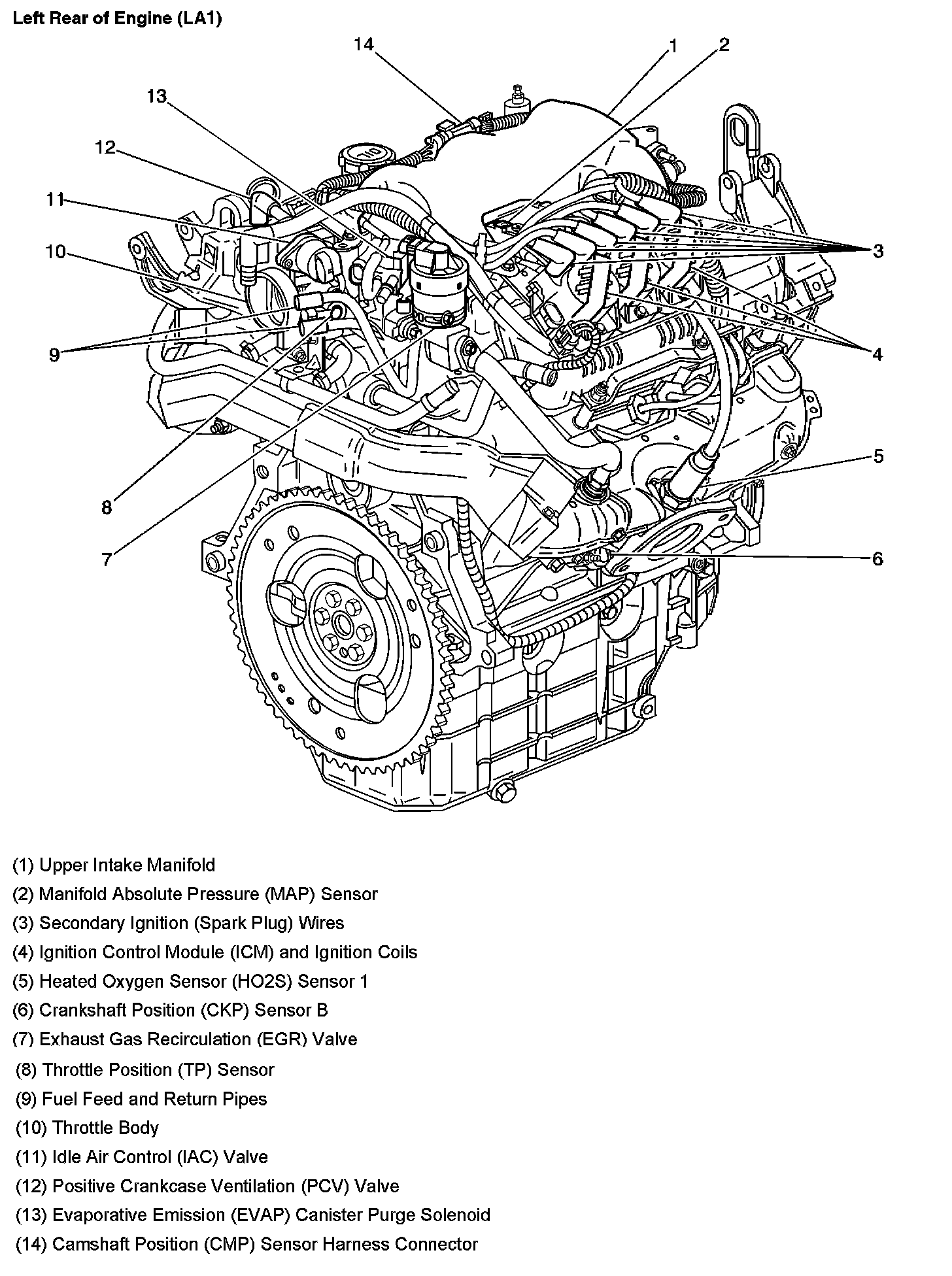

Left Rear Of Engine:
