Home
>>
Pontiac Truck
>>
2001
>>
Aztek V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Fuse Block-Center Console-Label
Fuse Block-Center Console-Label

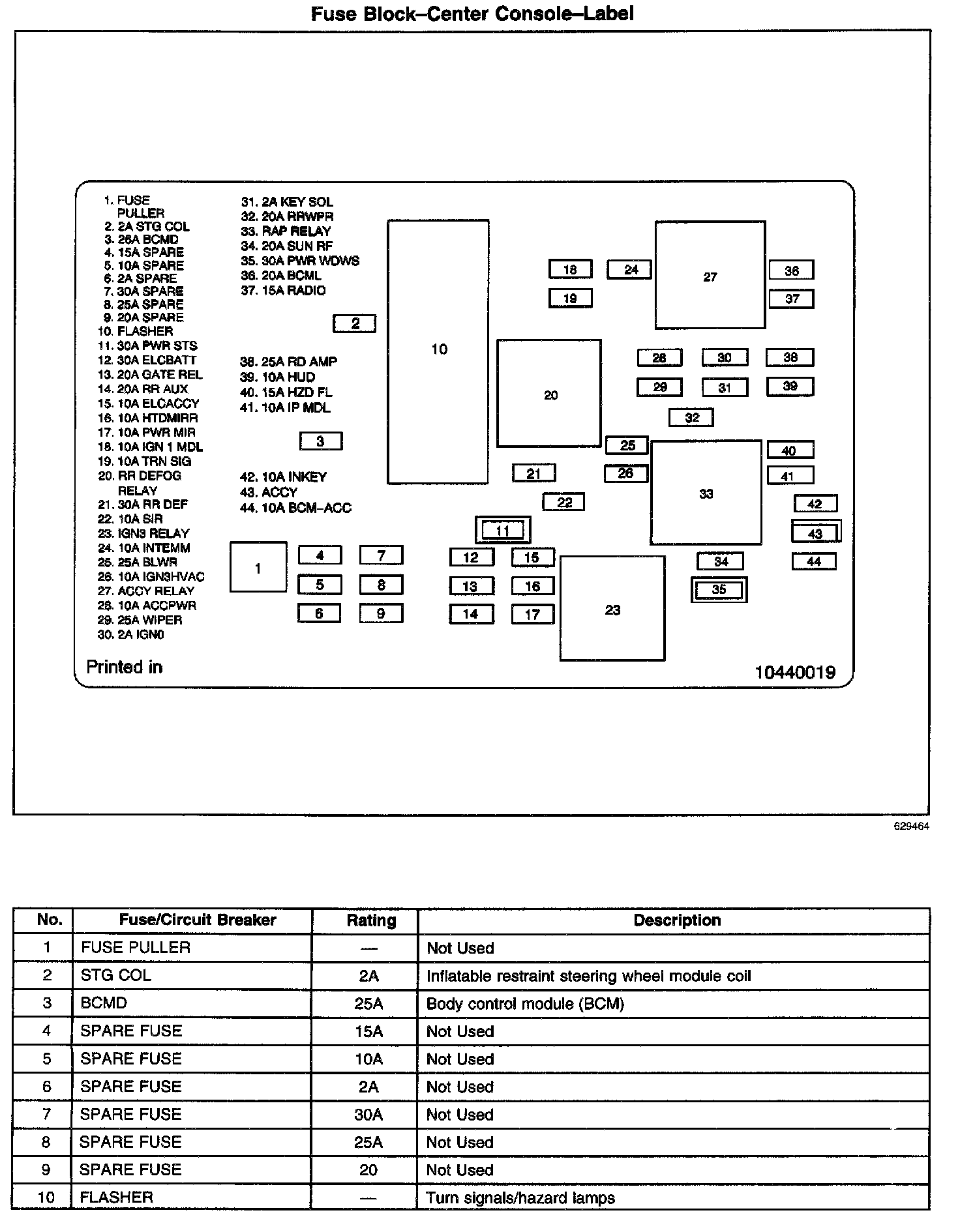

Fuse Block-Center Console-Label (Part 1 Of 3):

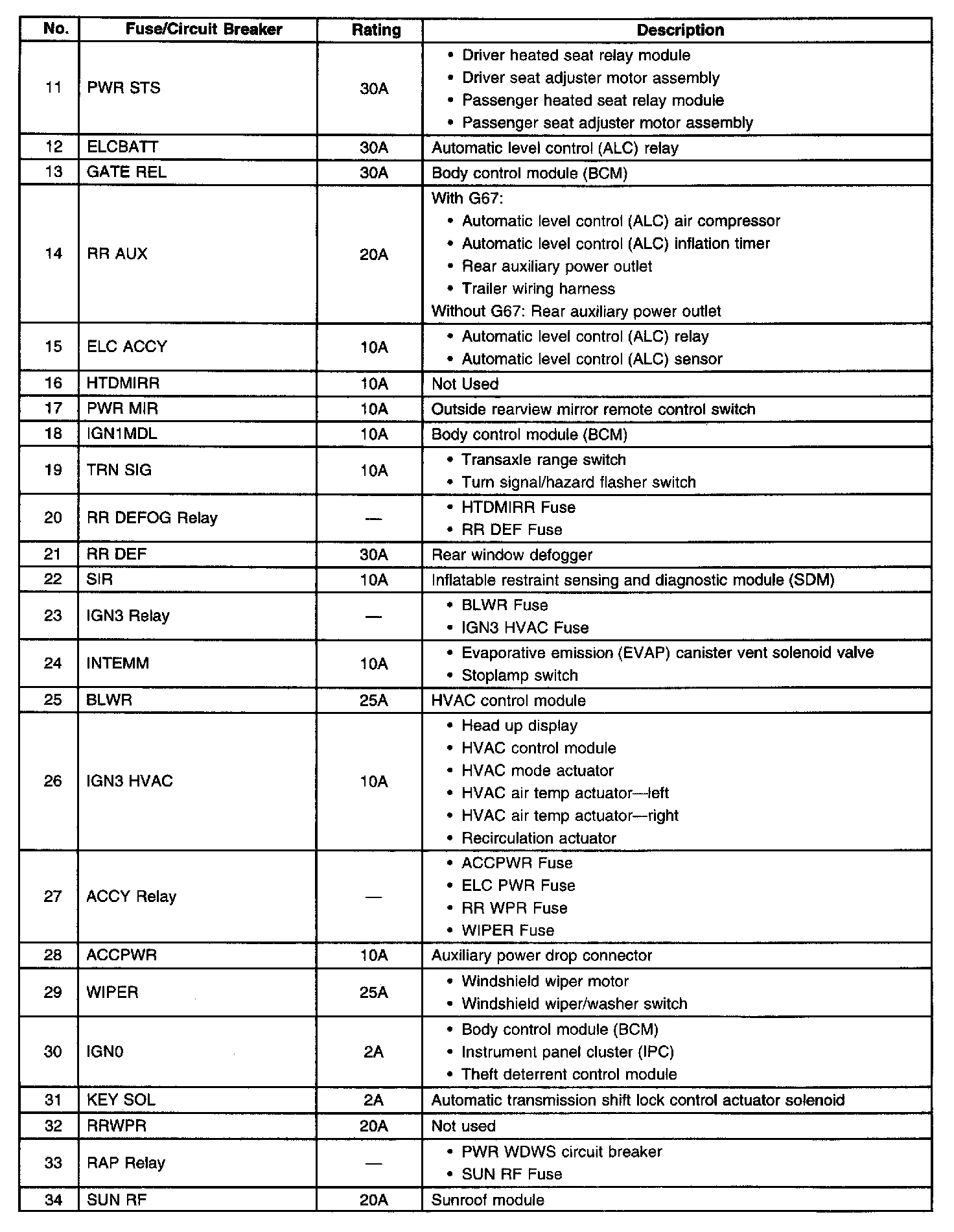

Fuse Block-Center Console-Label (Part 2 Of 3):

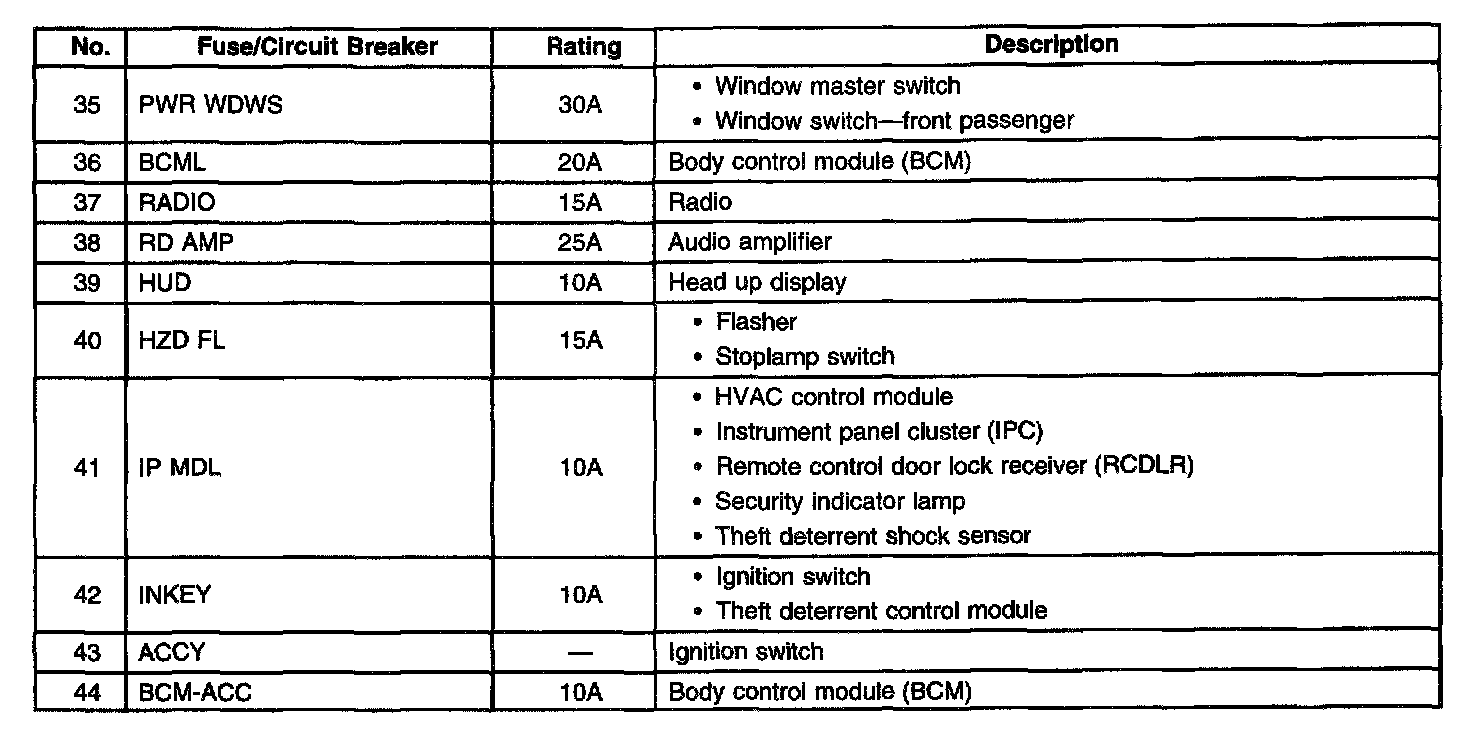

Fuse Block-Center Console-Label (Part 3 Of 3):
