Home >> Pontiac Truck >> 1999 >> Montana V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

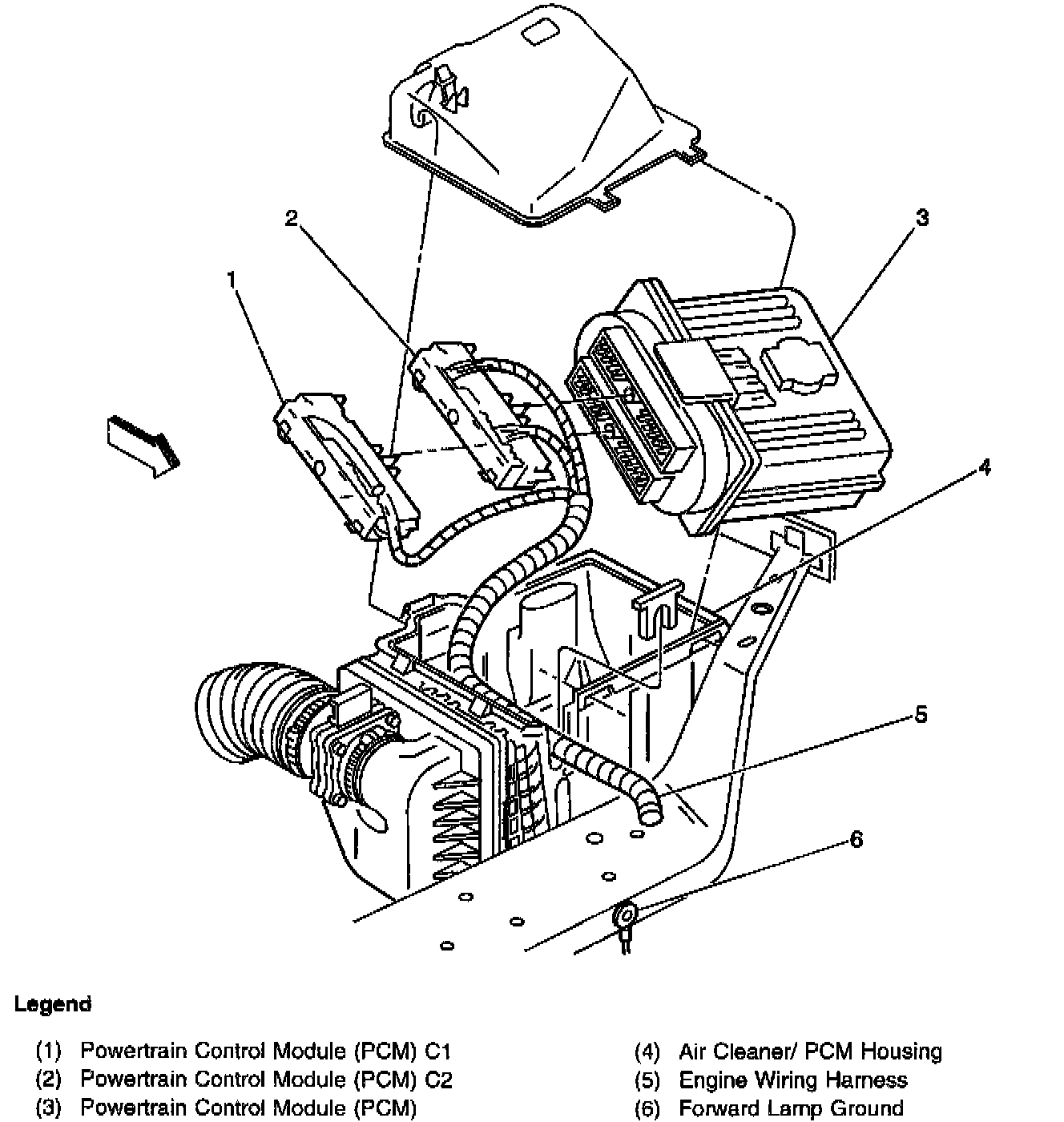

Air Cleaner, PCM Assembly:




LF Of Engine Compartment:




Engine compartment, secured in the air cleaner assembly
