Home >> Pontiac Truck >> 1996 >> Trans Sport V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Door Lock Module

Door Lock Module

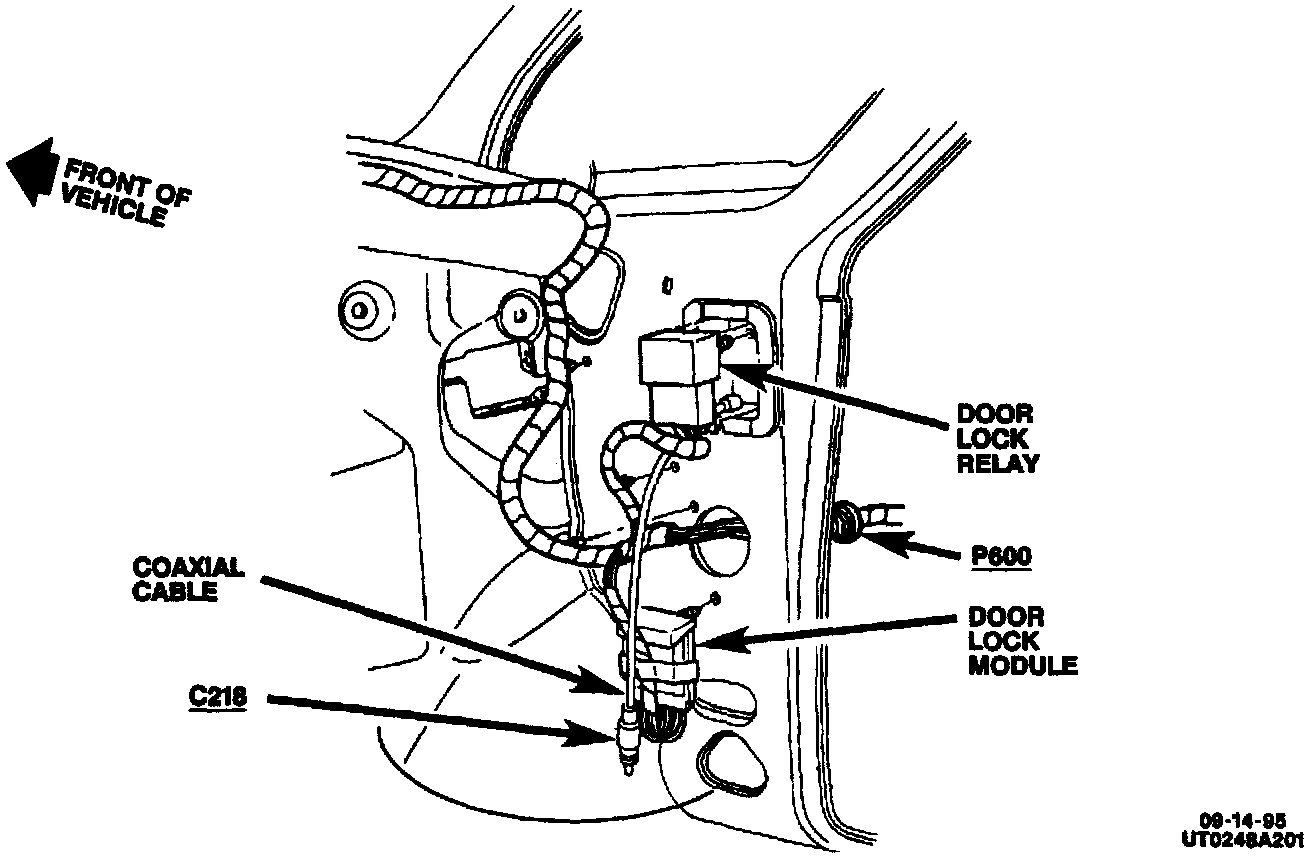

Middle Of RH Side A-pillar:

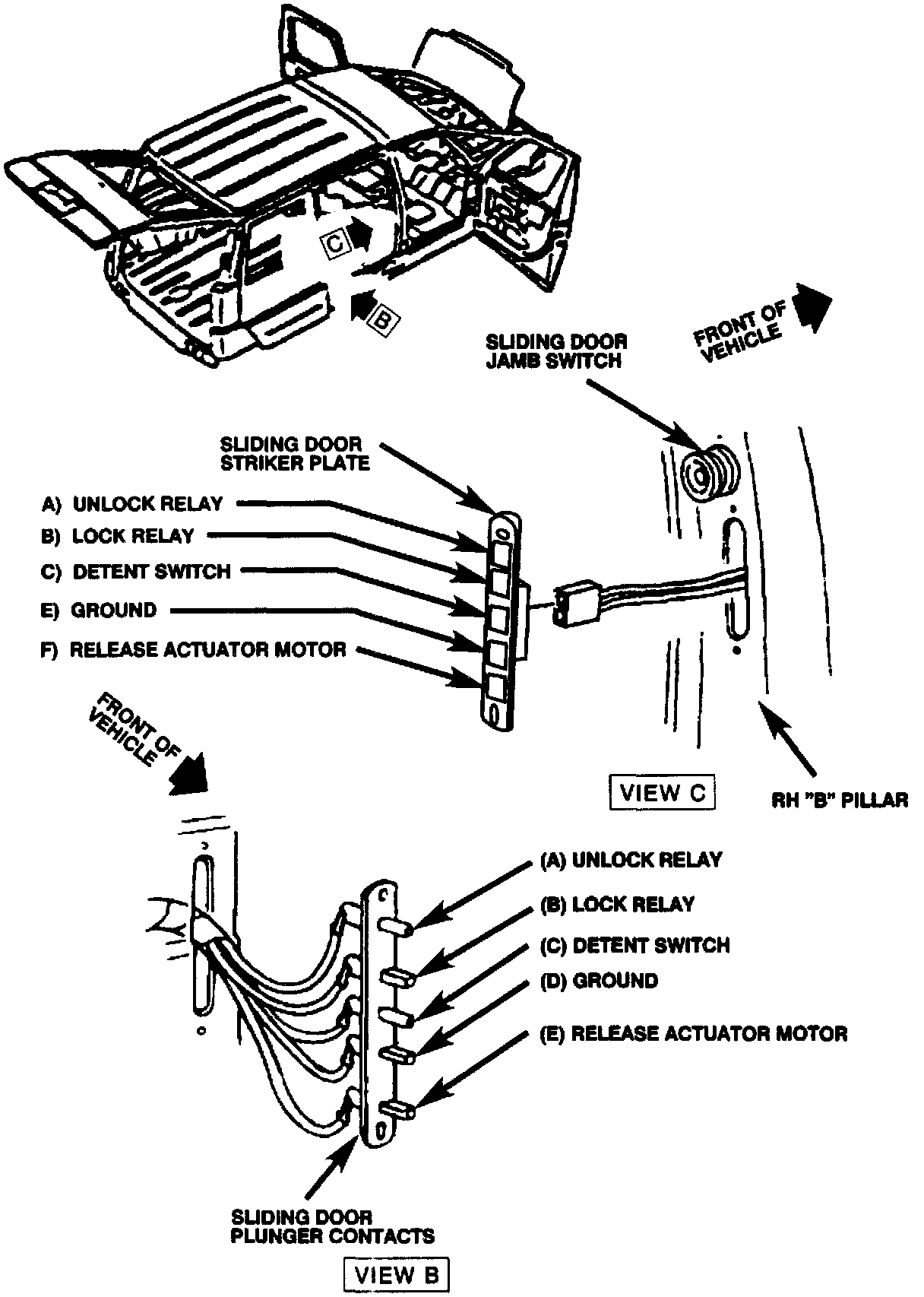

RH B-Pillar:
