Prowler V6-3.5L VIN G
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Brakes and Traction Control
>>
System Specifications
>>
Base Brake General Specifications
Base Brake General Specifications

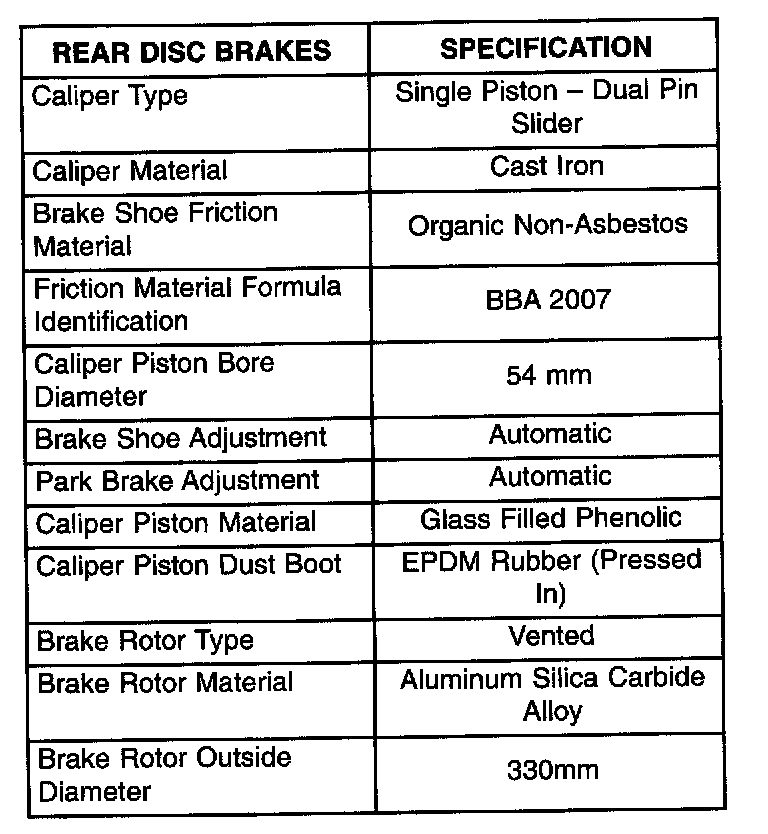

Disc Brake Specifications part 1 of 2
Disc Brake Specifications part 2 of 2
