Oxygen Sensor
>>
Locations
>>

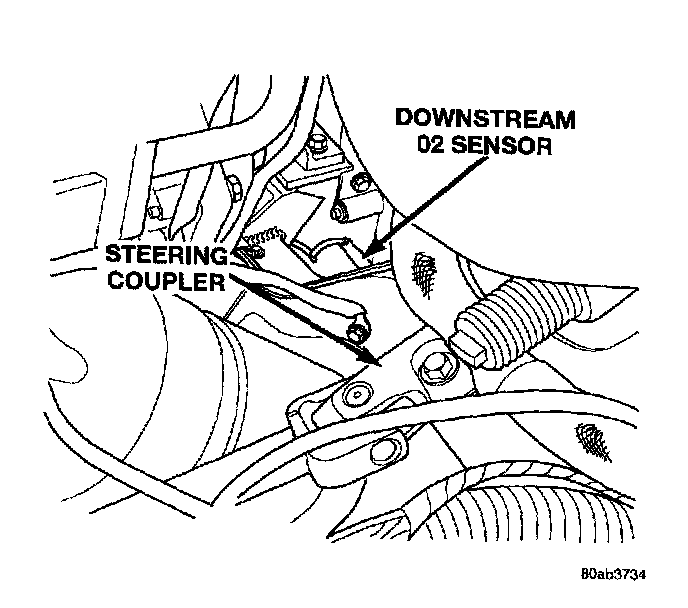

Engine Compartment/Exhaust System
Engine Compartment/Exhaust System

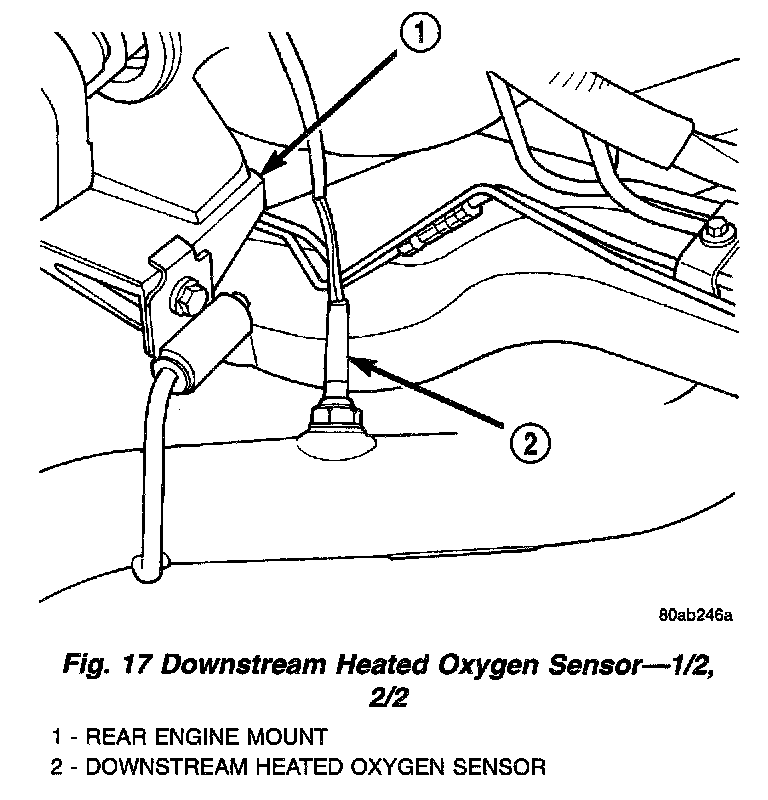

Fig. 17 Downstream Heated Oxygen Sensor - 1/2,2/2:
The O2S are located at the outlet ends of the catalytic converter.
