Engine Control Module

MULTI ECU CONNECTORS

(View from Harness End)

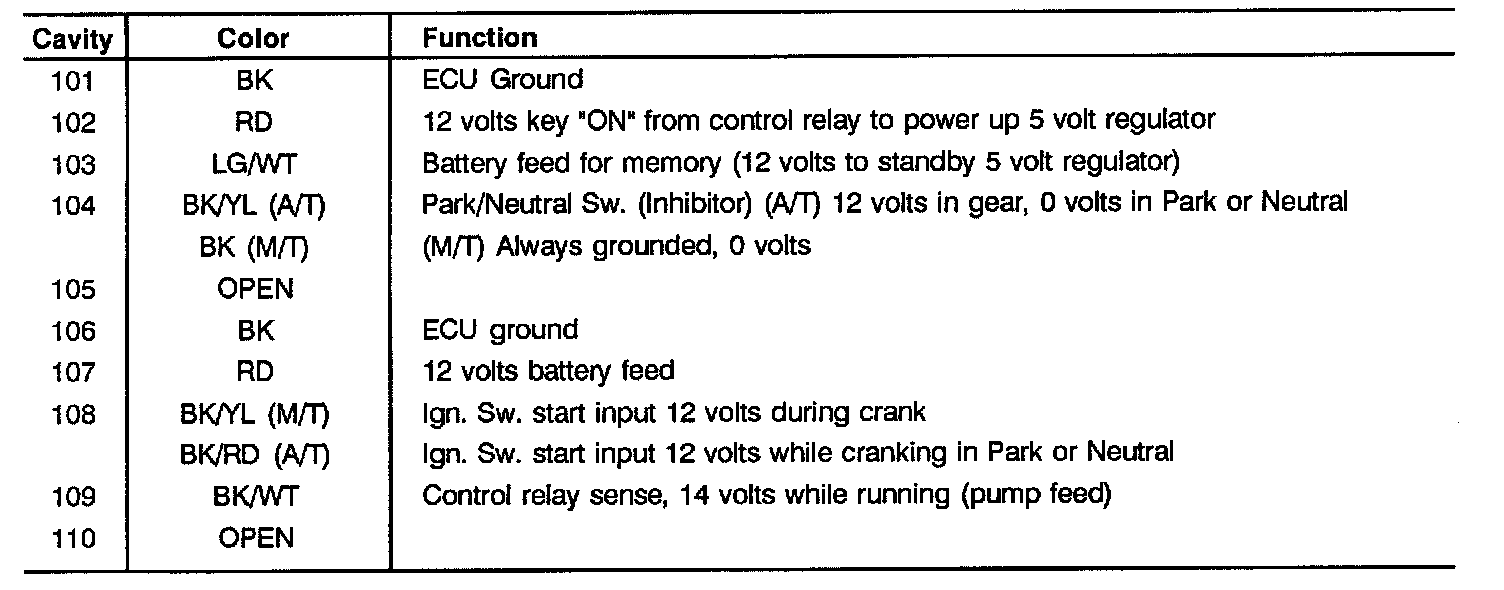

10-WAY CONNECTOR

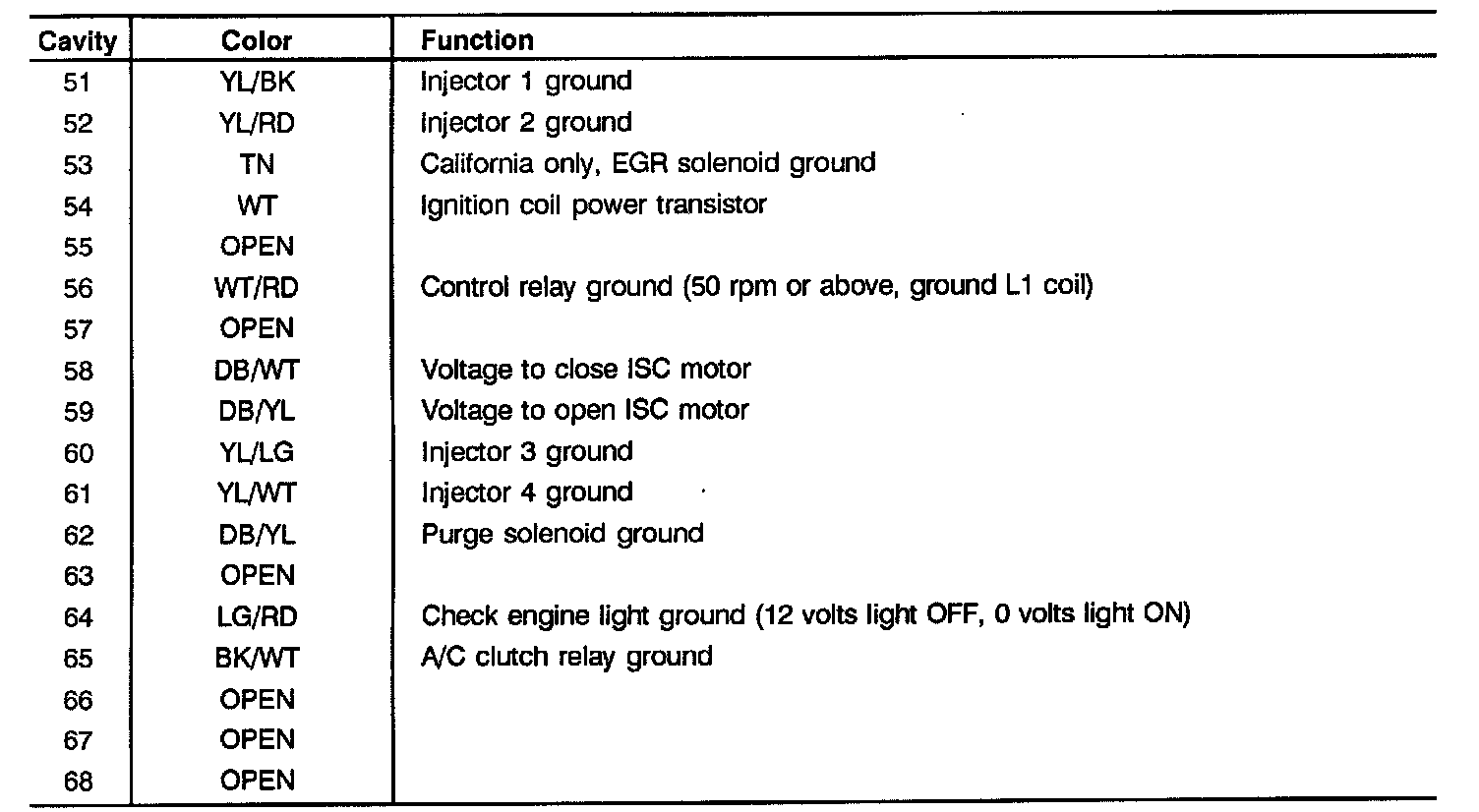

18-WAY CONNECTOR

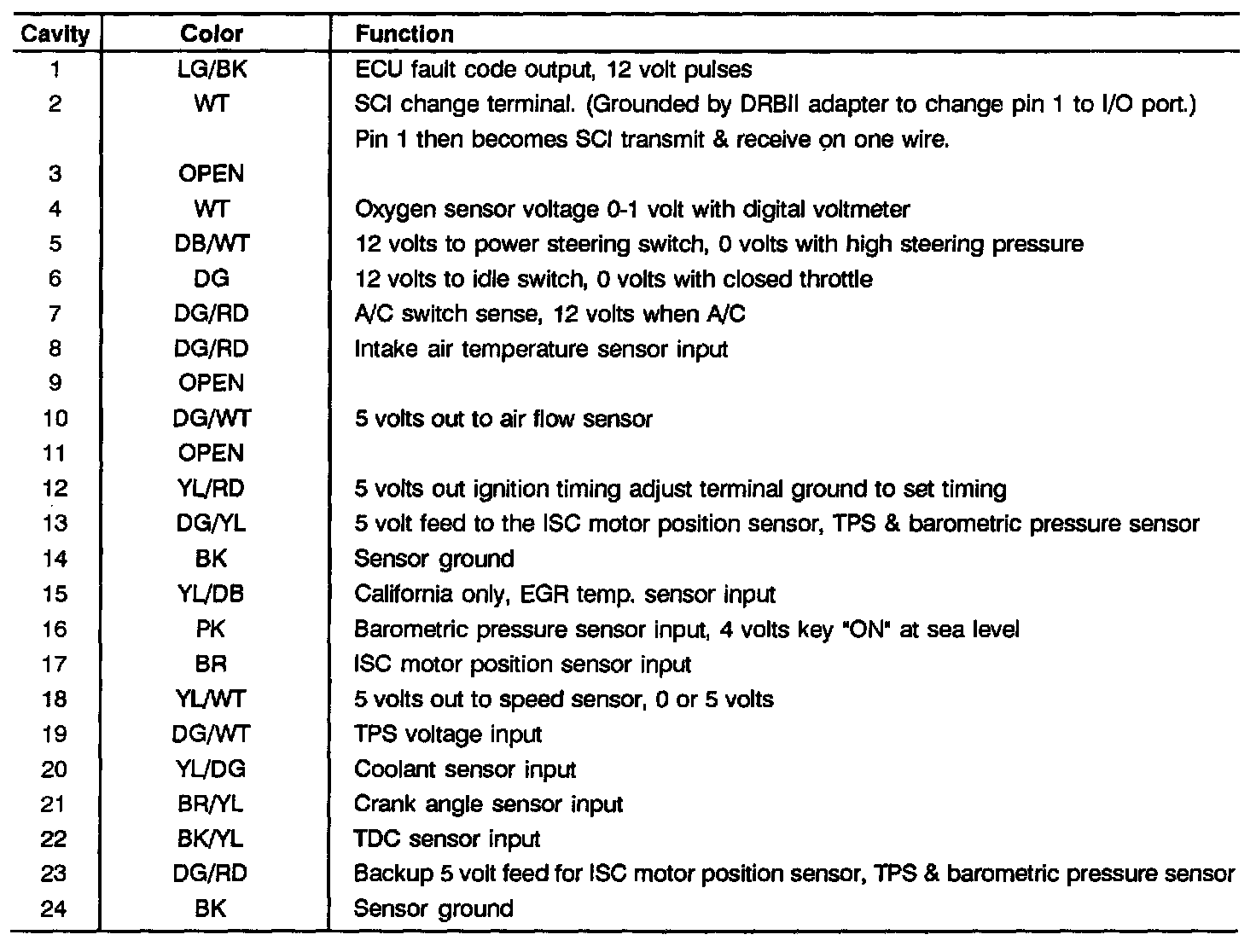

24-WAY CONNECTOR
