Steering Column Bracket Replacement

Steering Column Bracket Replacement

Removal Procedure

1. Remove the knee bolster bracket from the instrument panel. Refer to Knee Bolster Bracket Replacement (Knee Bolster Bracket Replacement).

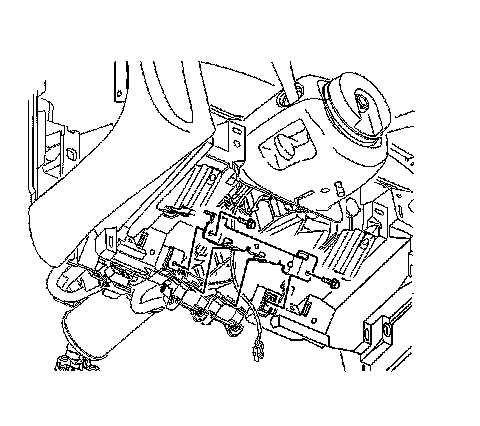

2. Remove the steering column bracket fasteners securing the bracket to the carrier.
3. Remove the bracket from the vehicle.

Installation Procedure




1. Position the steering column bracket to the /IP carrier.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the steering column bracket fasteners.

Tighten the fasteners to 9 Nm (80 lb in).

3. Install the knee bolster. Refer to Knee Bolster Bracket Replacement (Knee Bolster Bracket Replacement).
