Accessory Delay Module

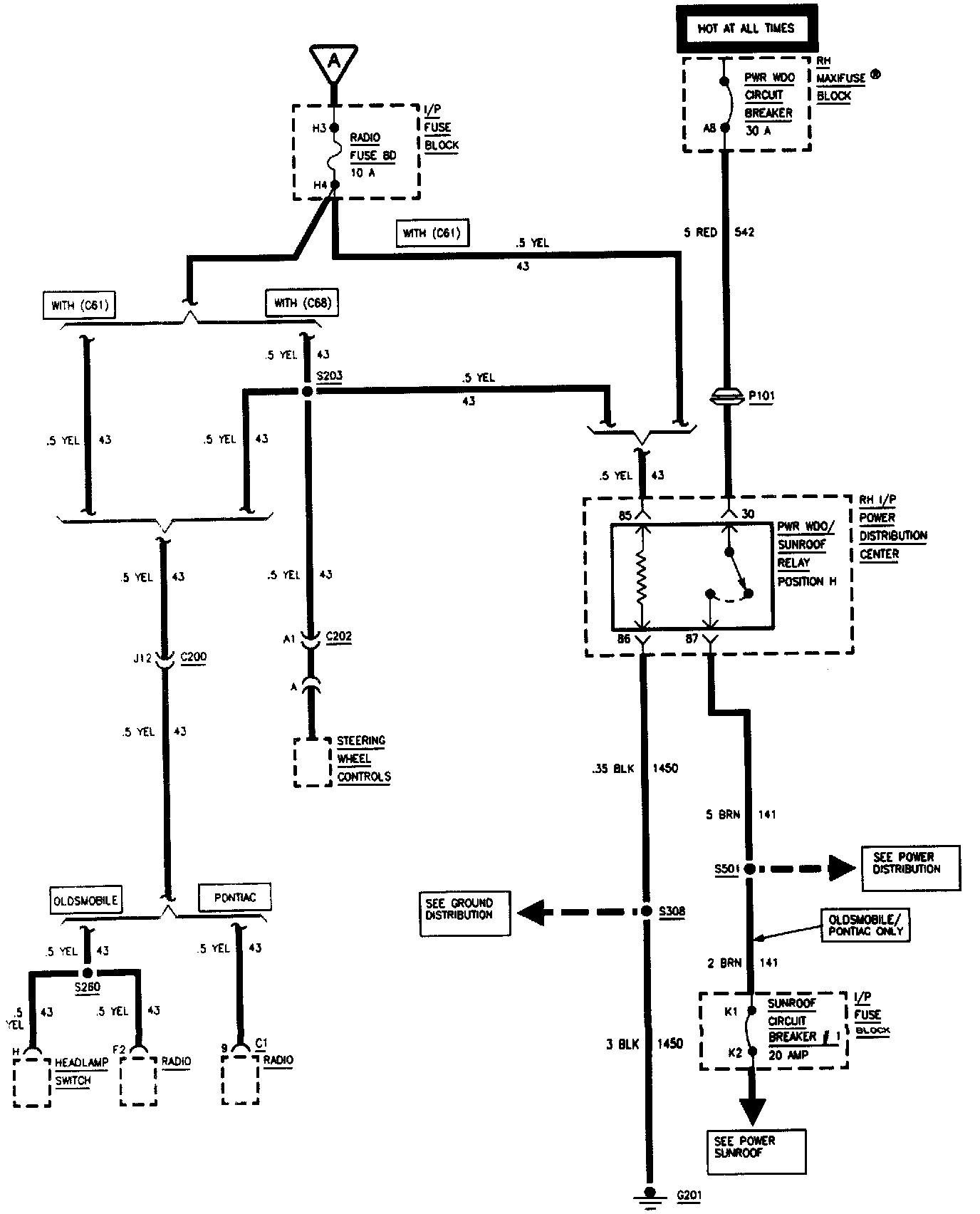

Retained Accessory Power:

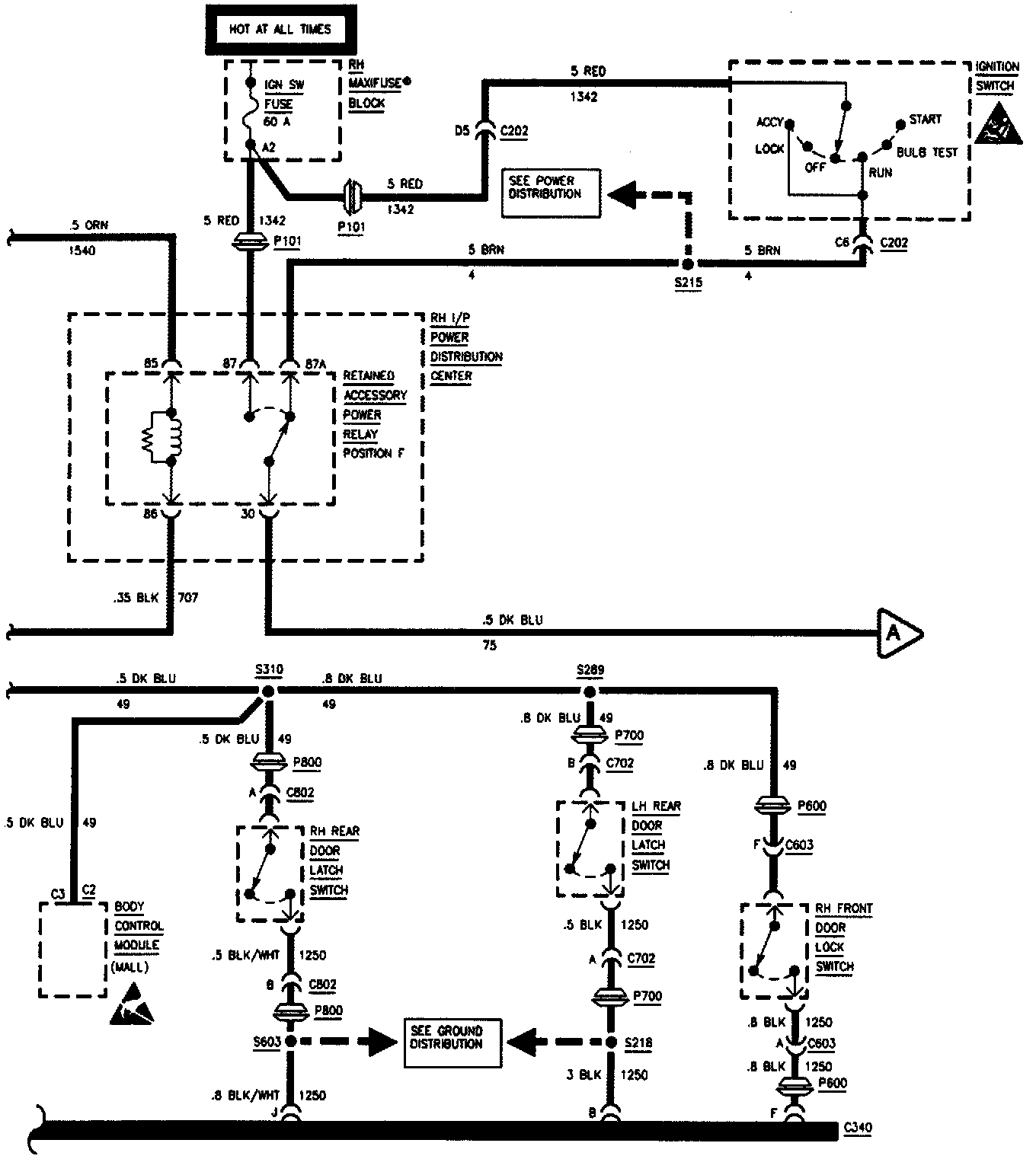

Retained Accessory Power:

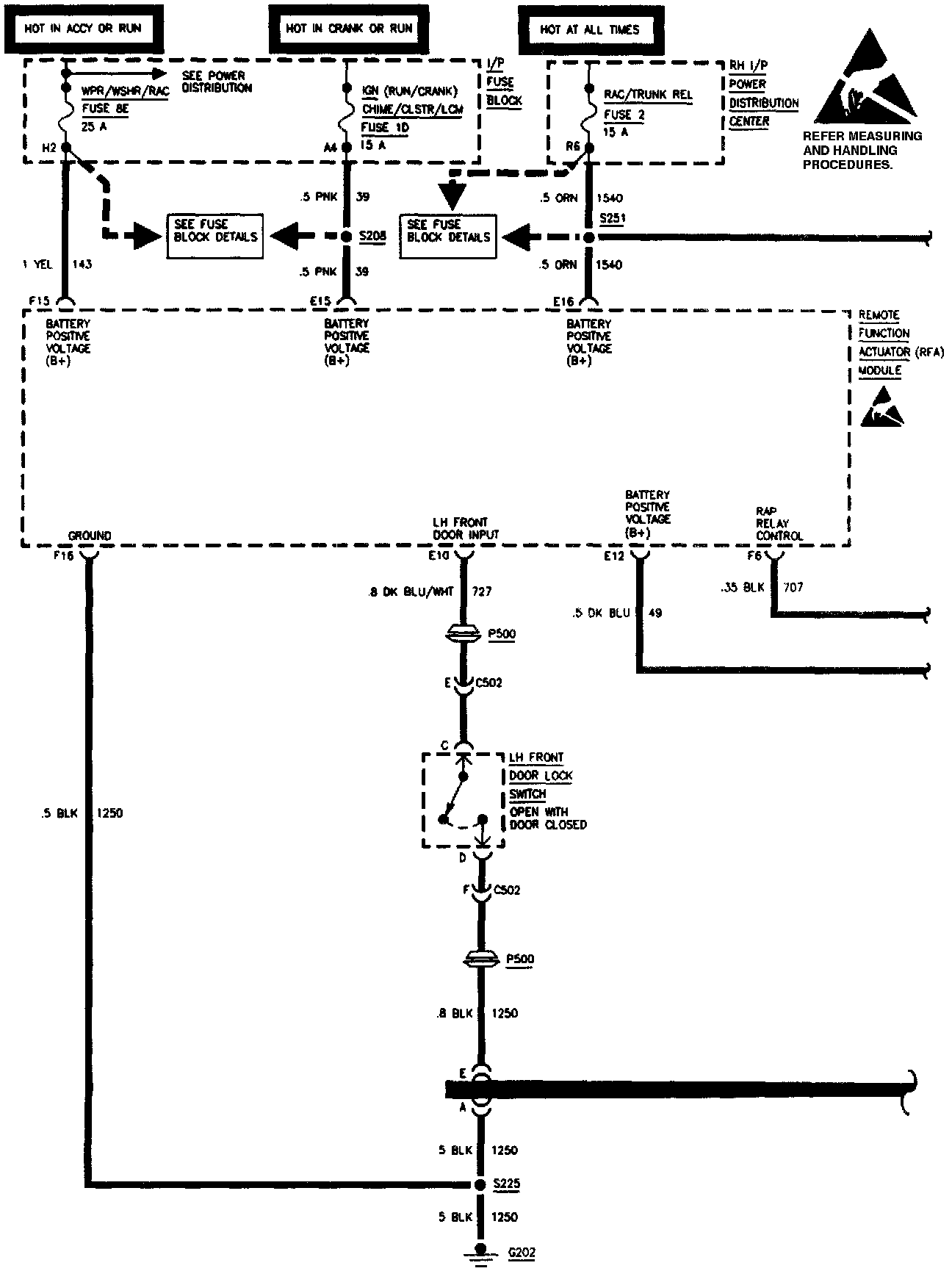

Retained Accessory Power:
