Relay Box
Relay Box

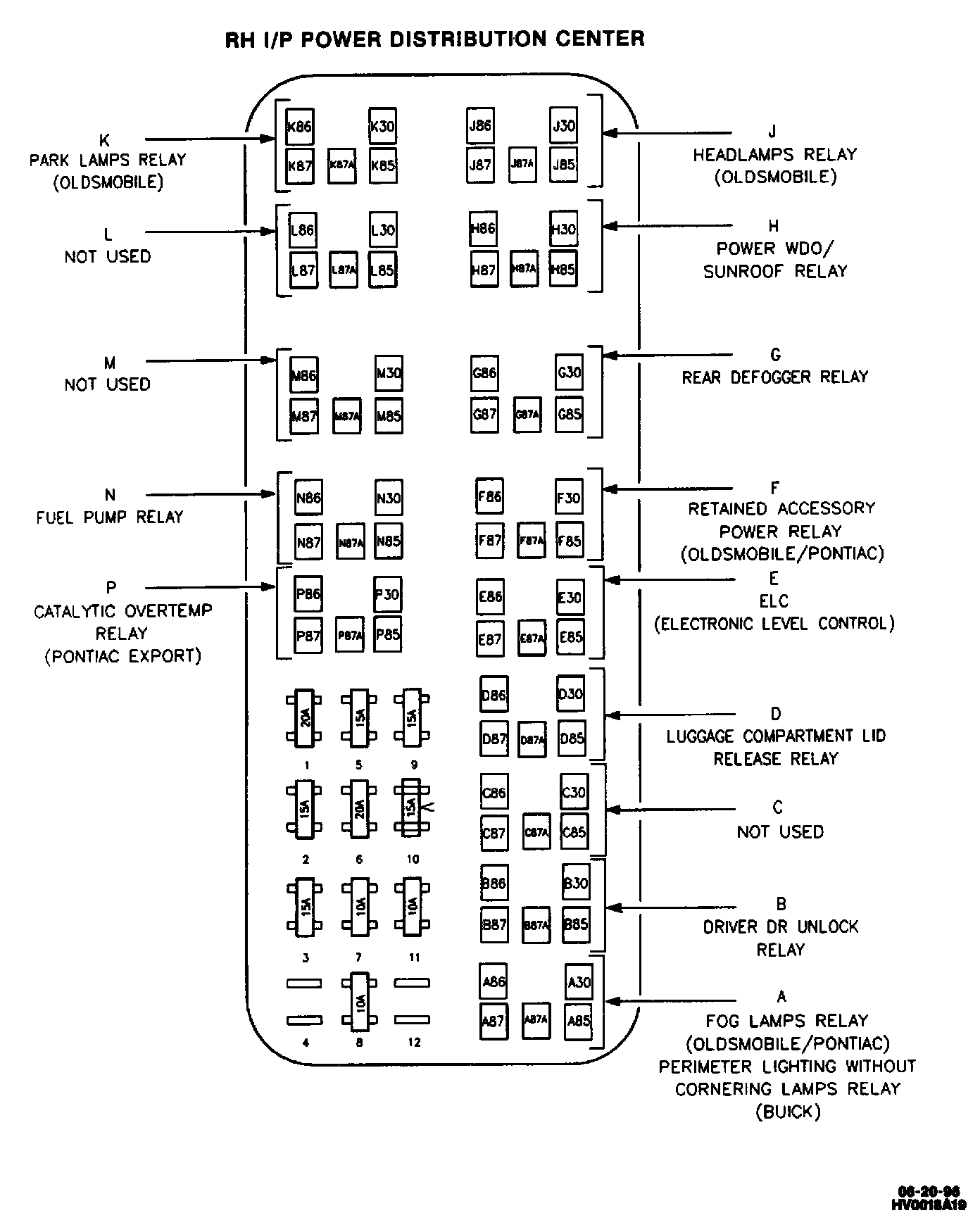

Relay Box View:

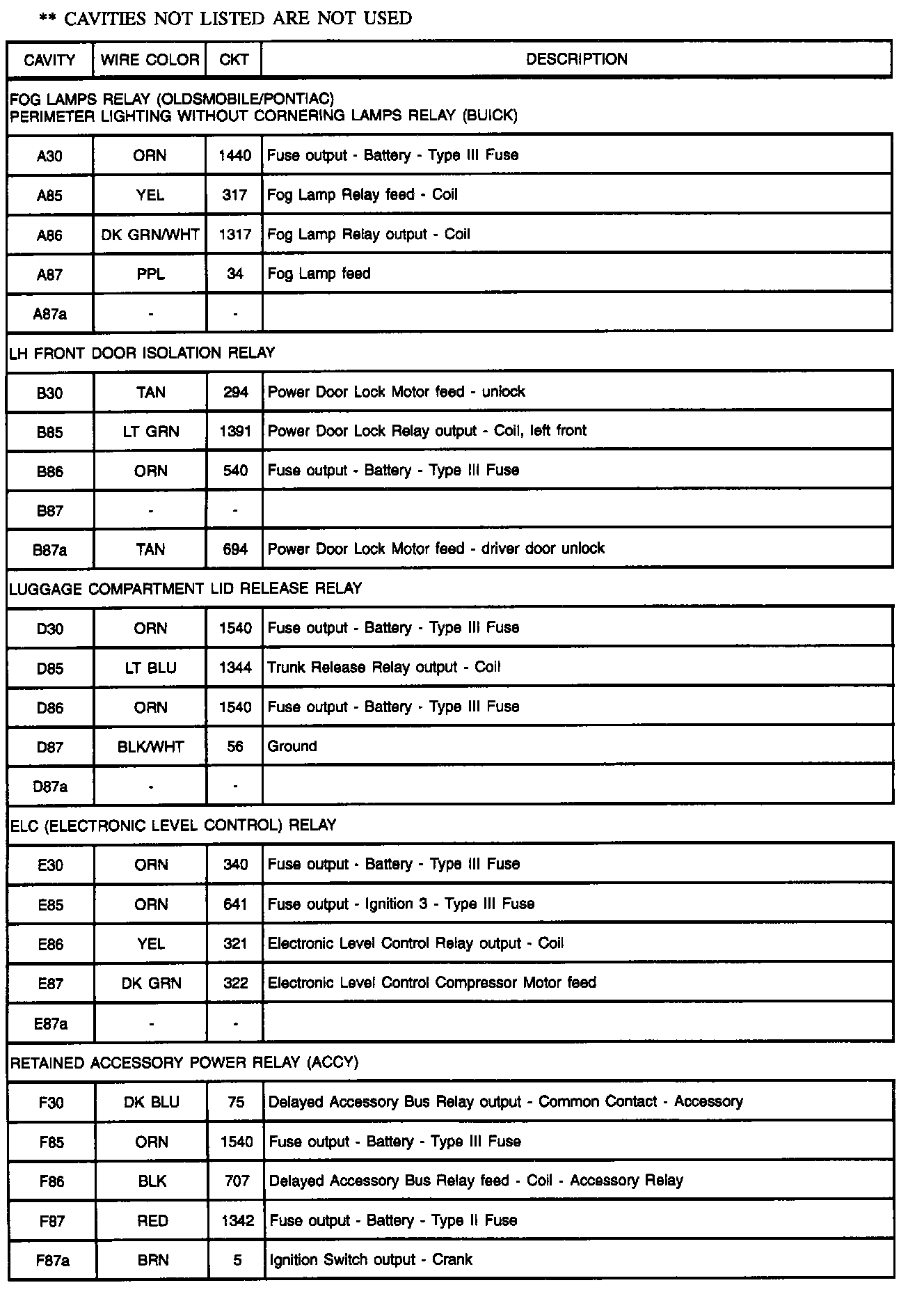

Relay Box Details (1 Of 3):

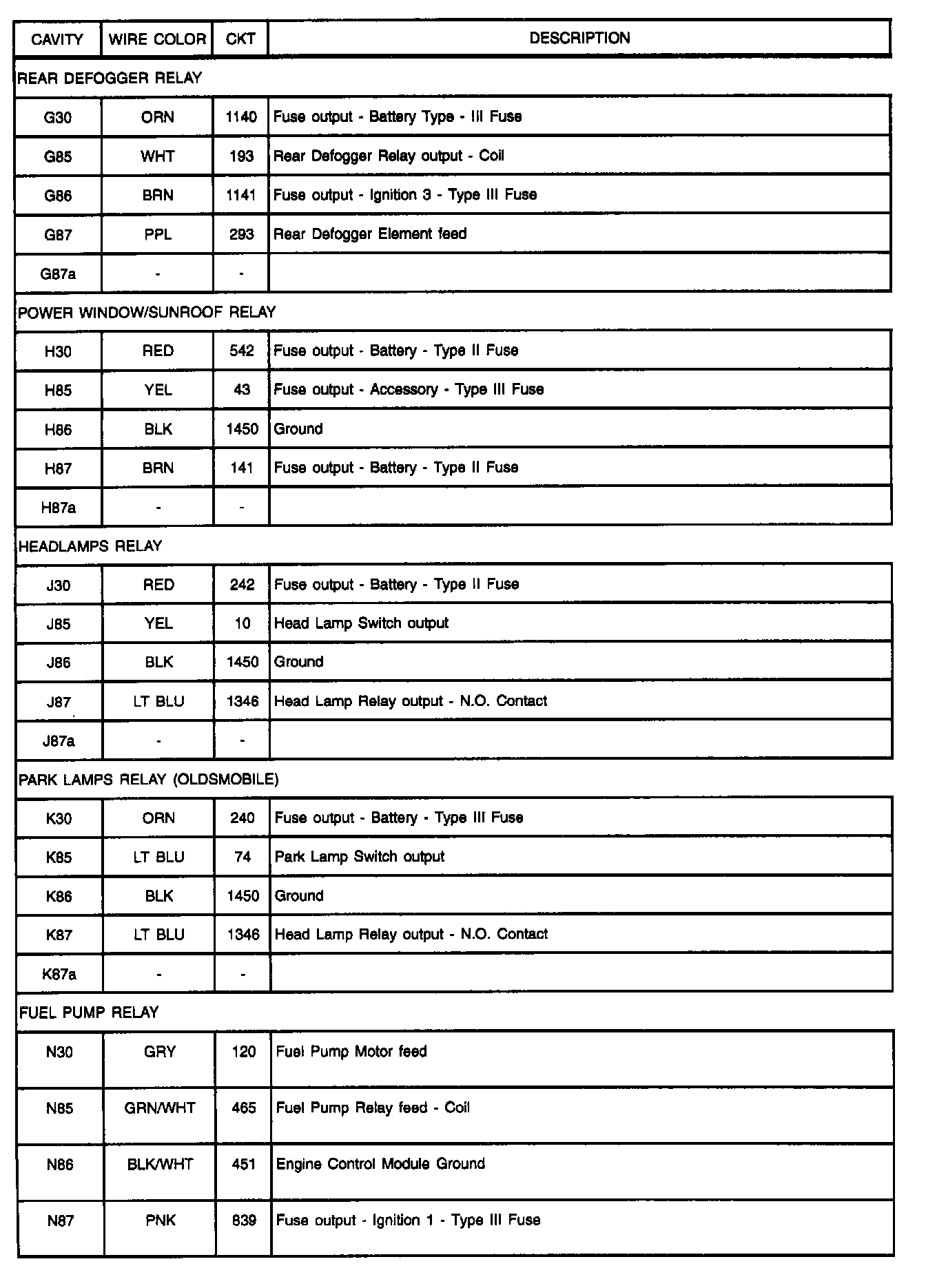

Relay Box Detail (2 Of 3):
Relay Box Detail (3 Of 3):
