Home >> Oldsmobile >> 1997 >> Regency V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

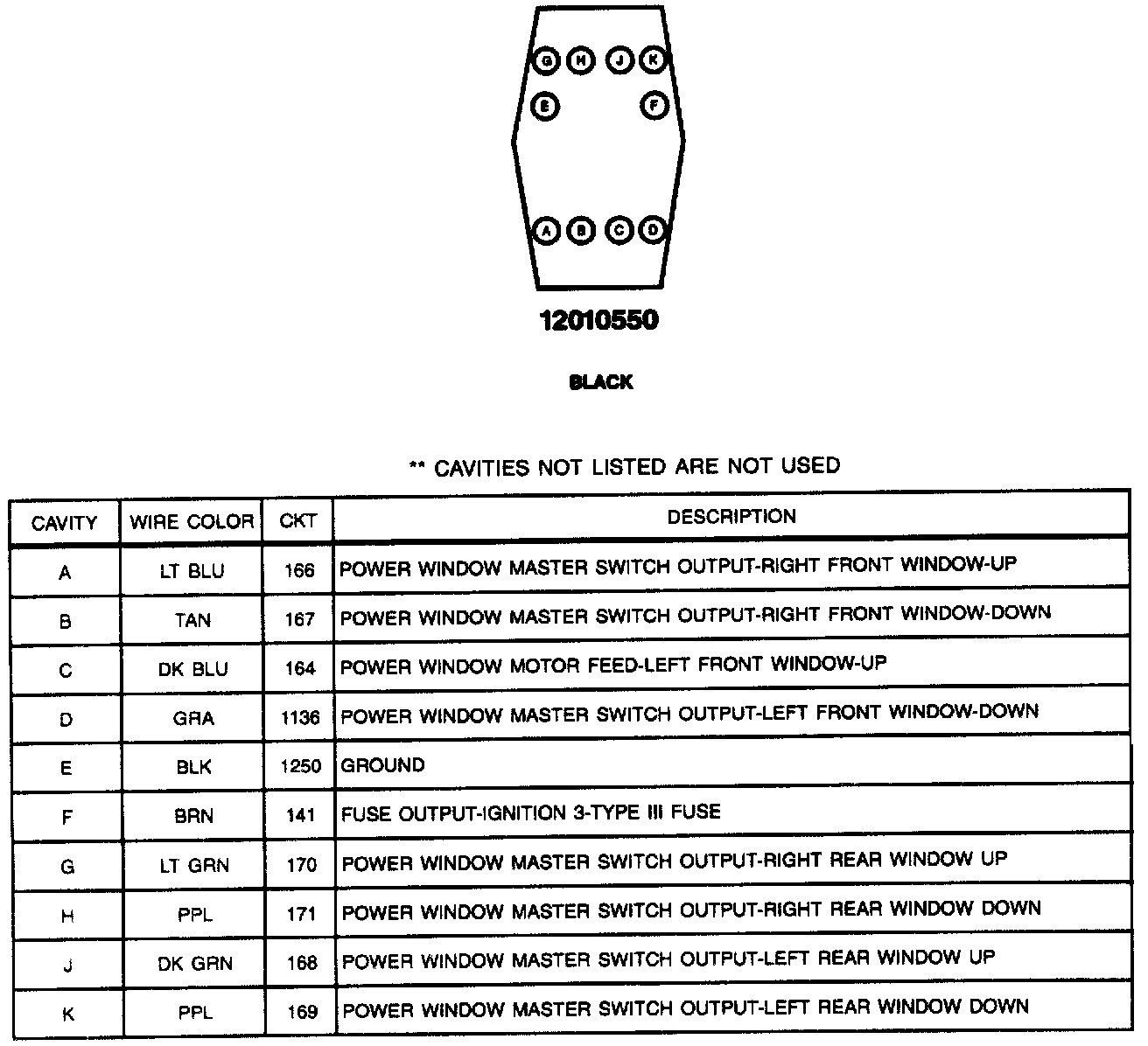

Power Window Master Switch Assembly:



Rear Window Switch:



Power Window Master Switch Assembly:



RH Front Window Switch:
