Federal Emissions

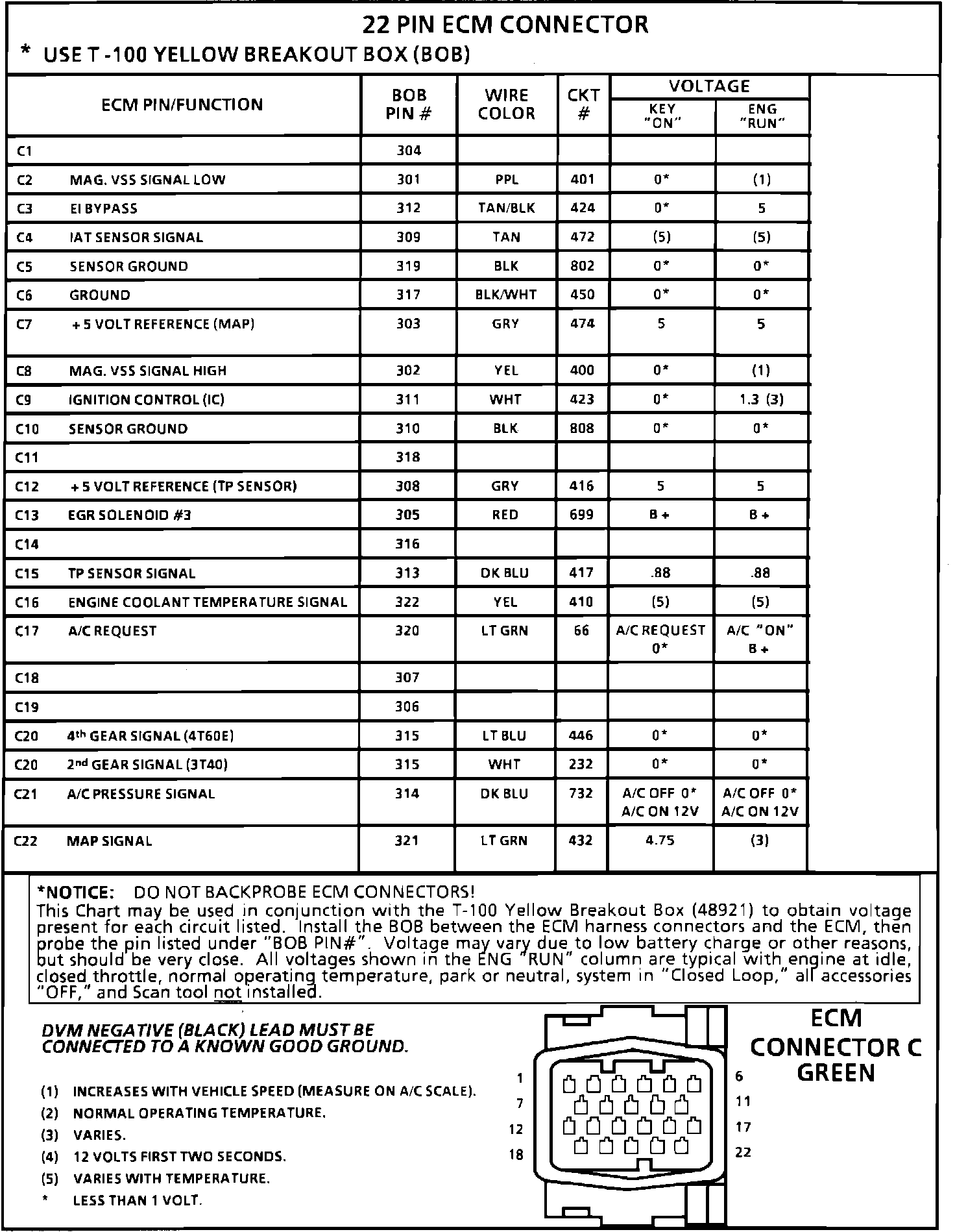

ECM Connector Pin-Out:

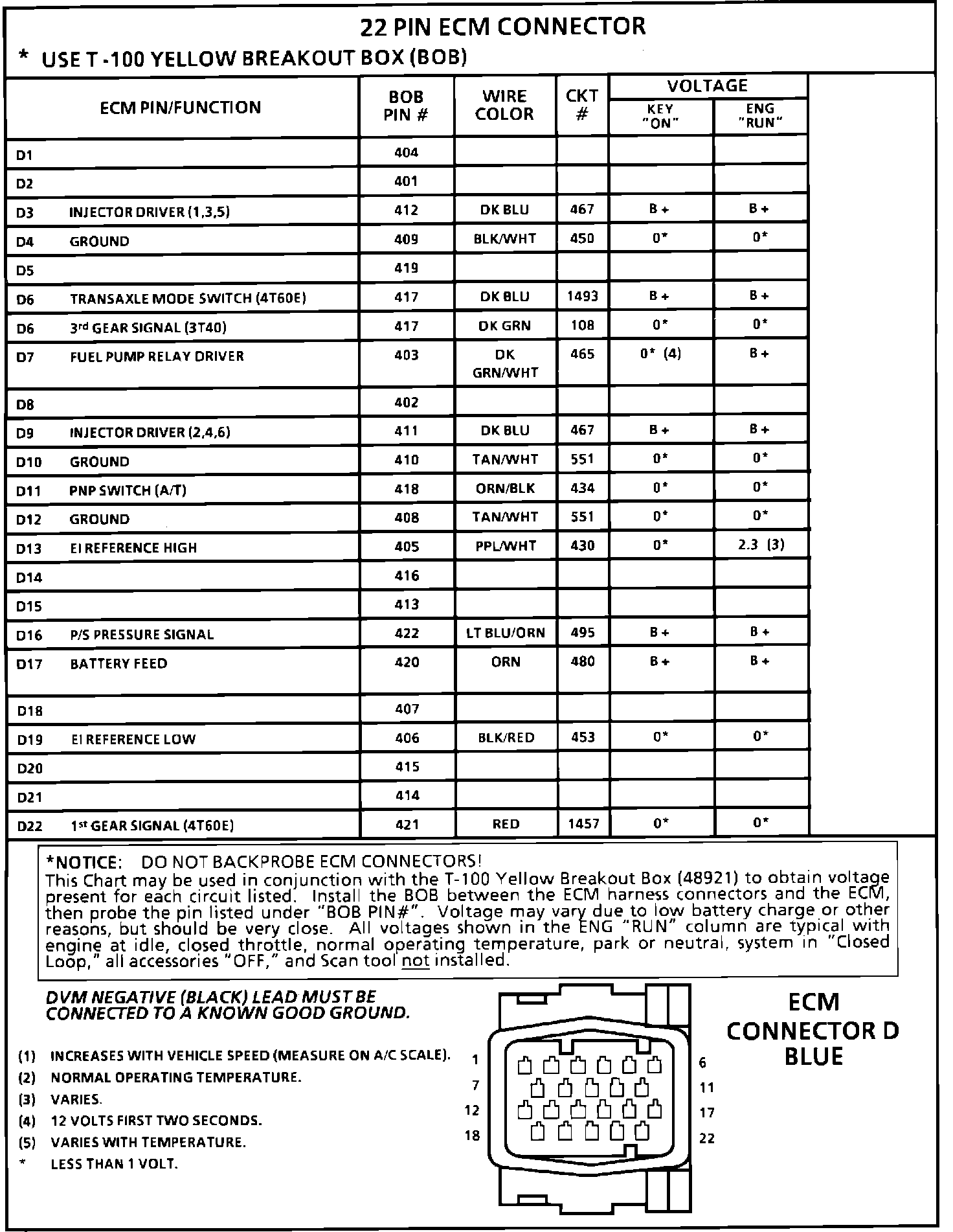

ECM Connector Pin-Out:

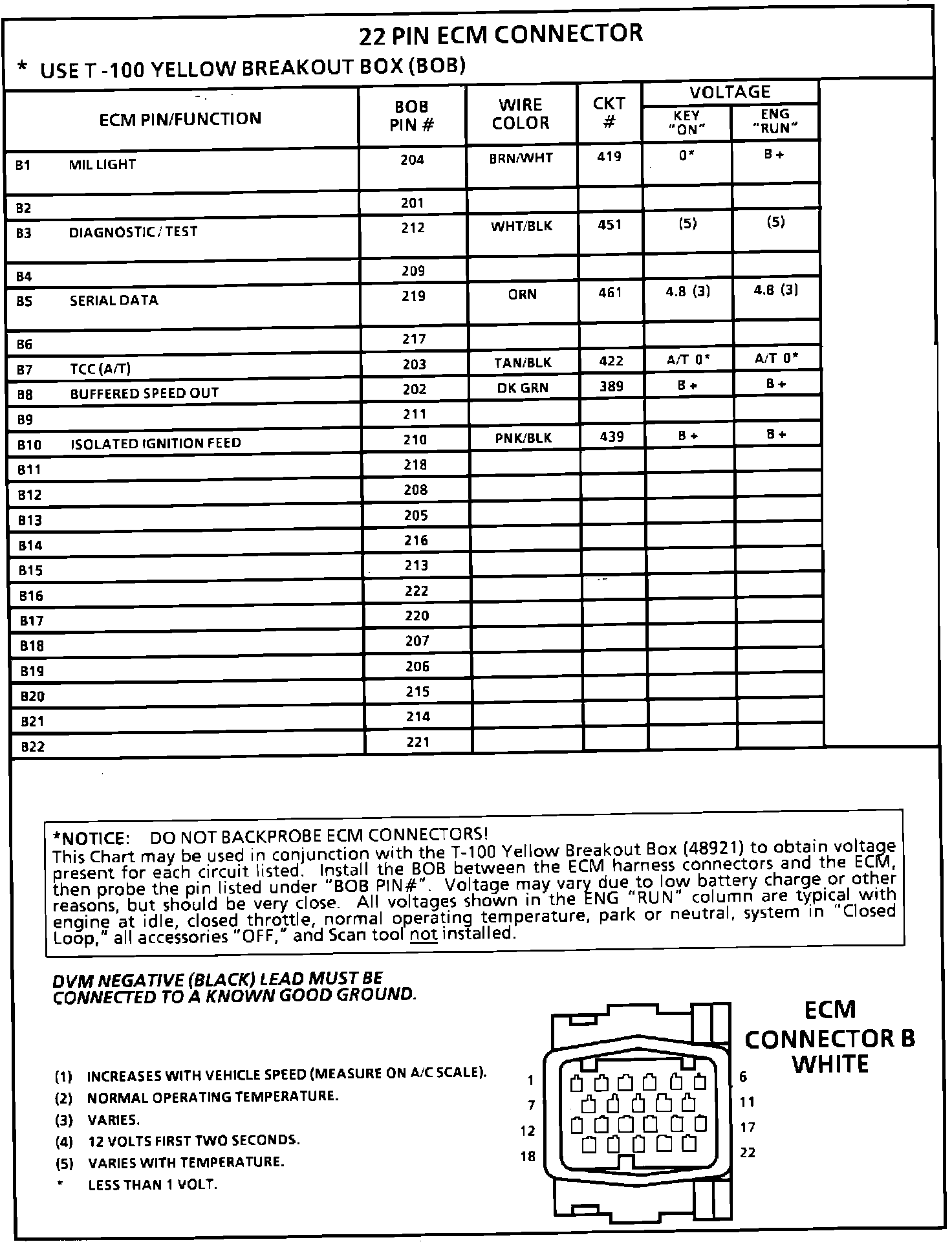

ECM Connector Pin-Out:

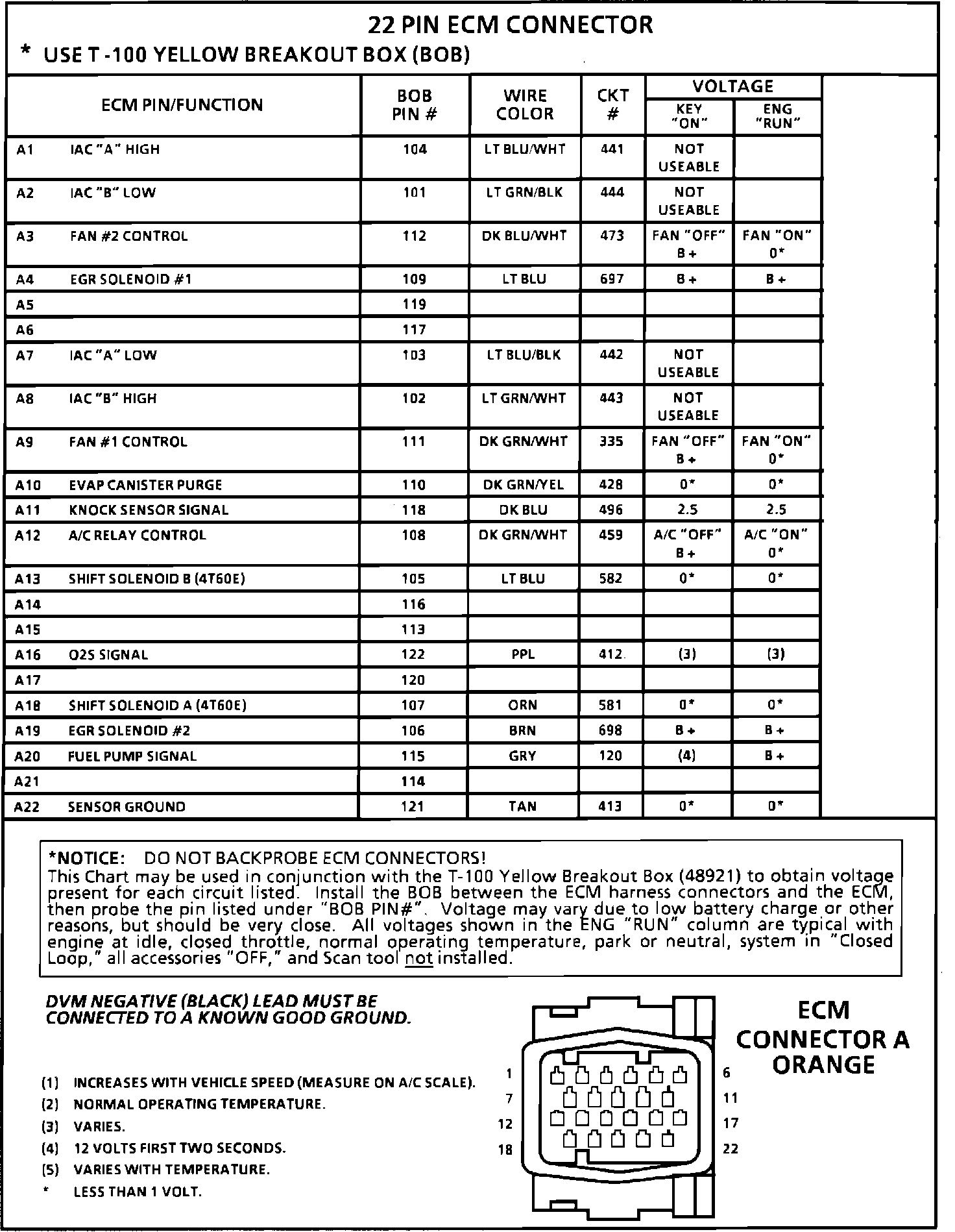

ECM Connector Pin-Out:
