GEN II S

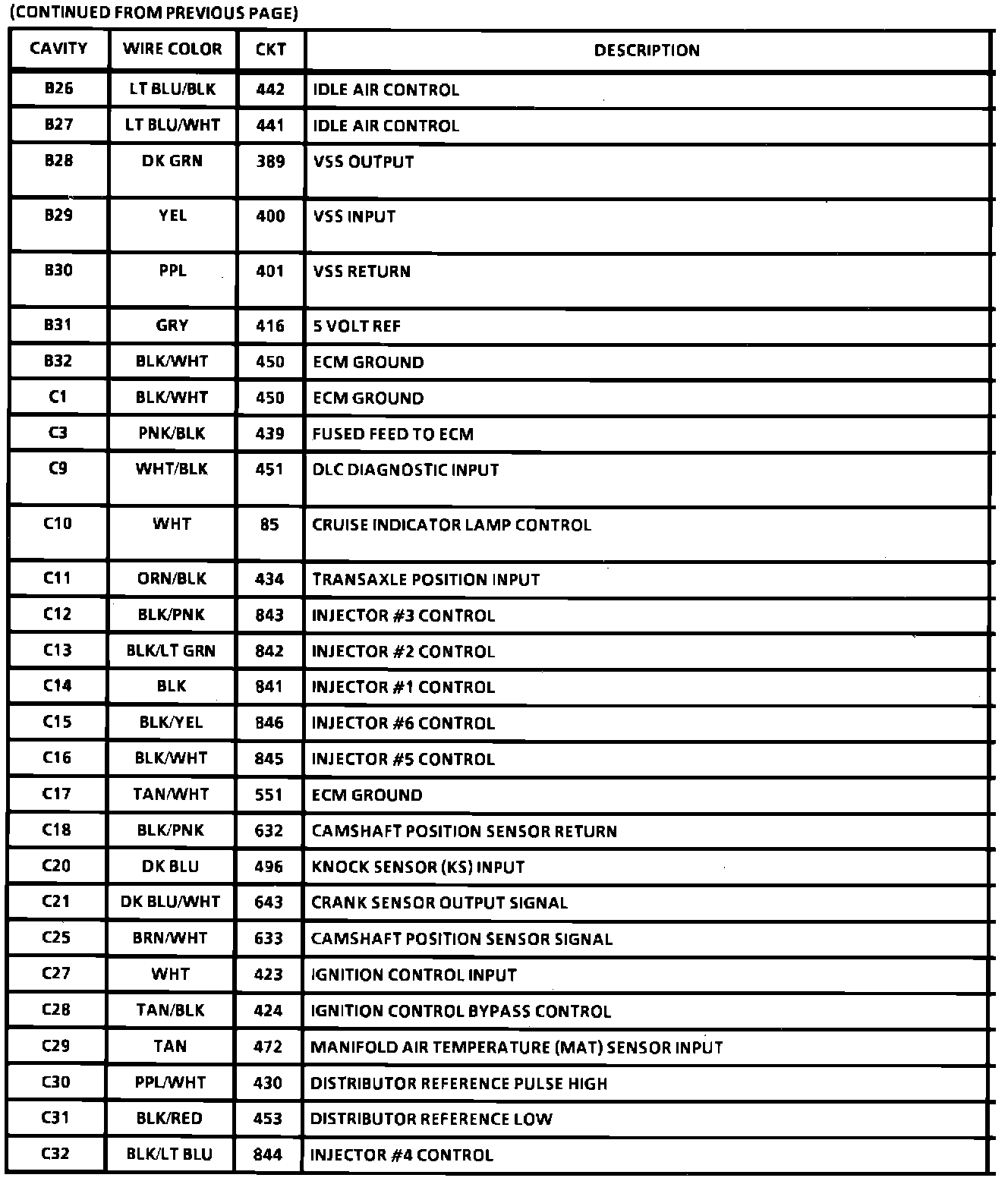

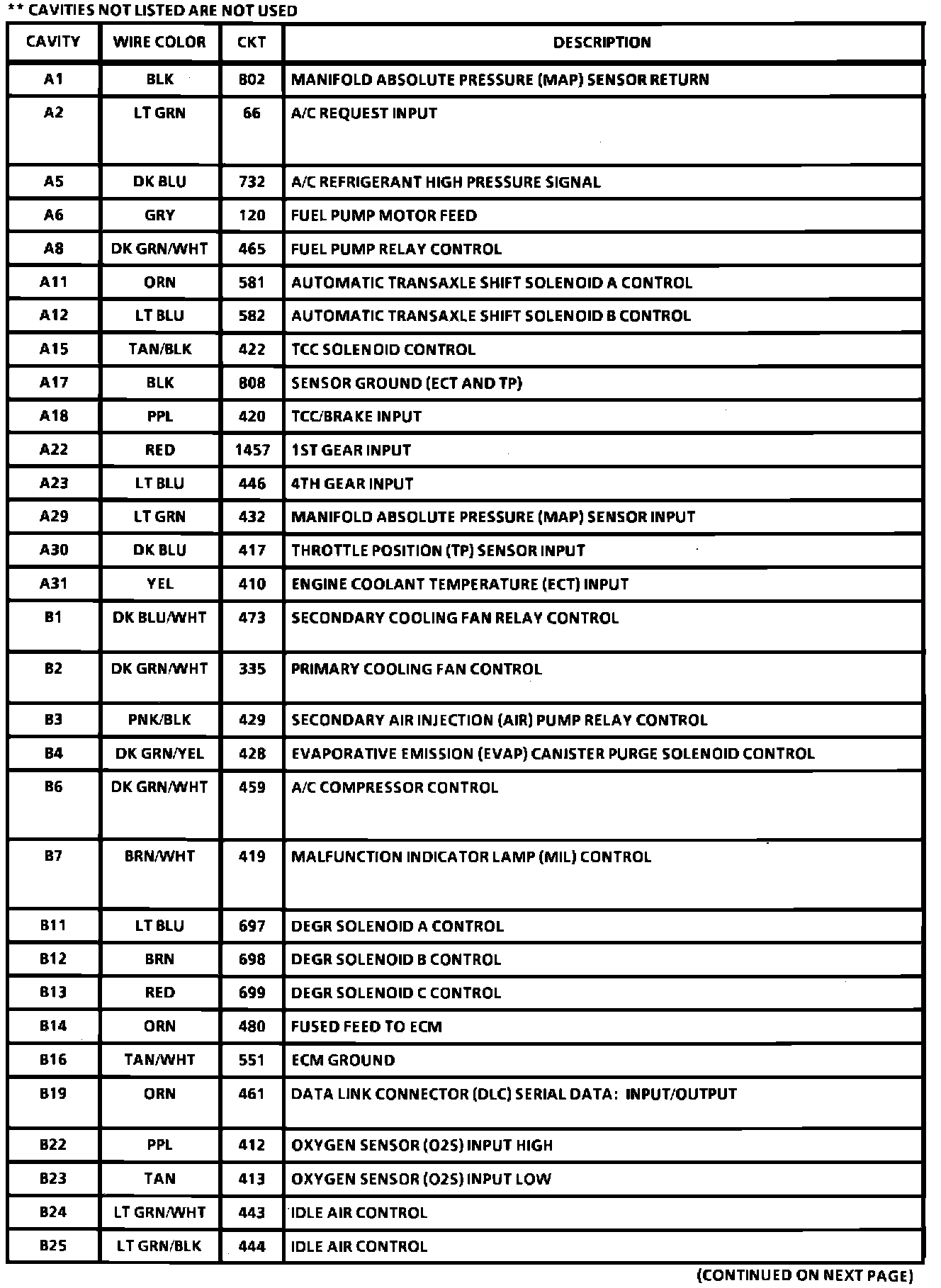

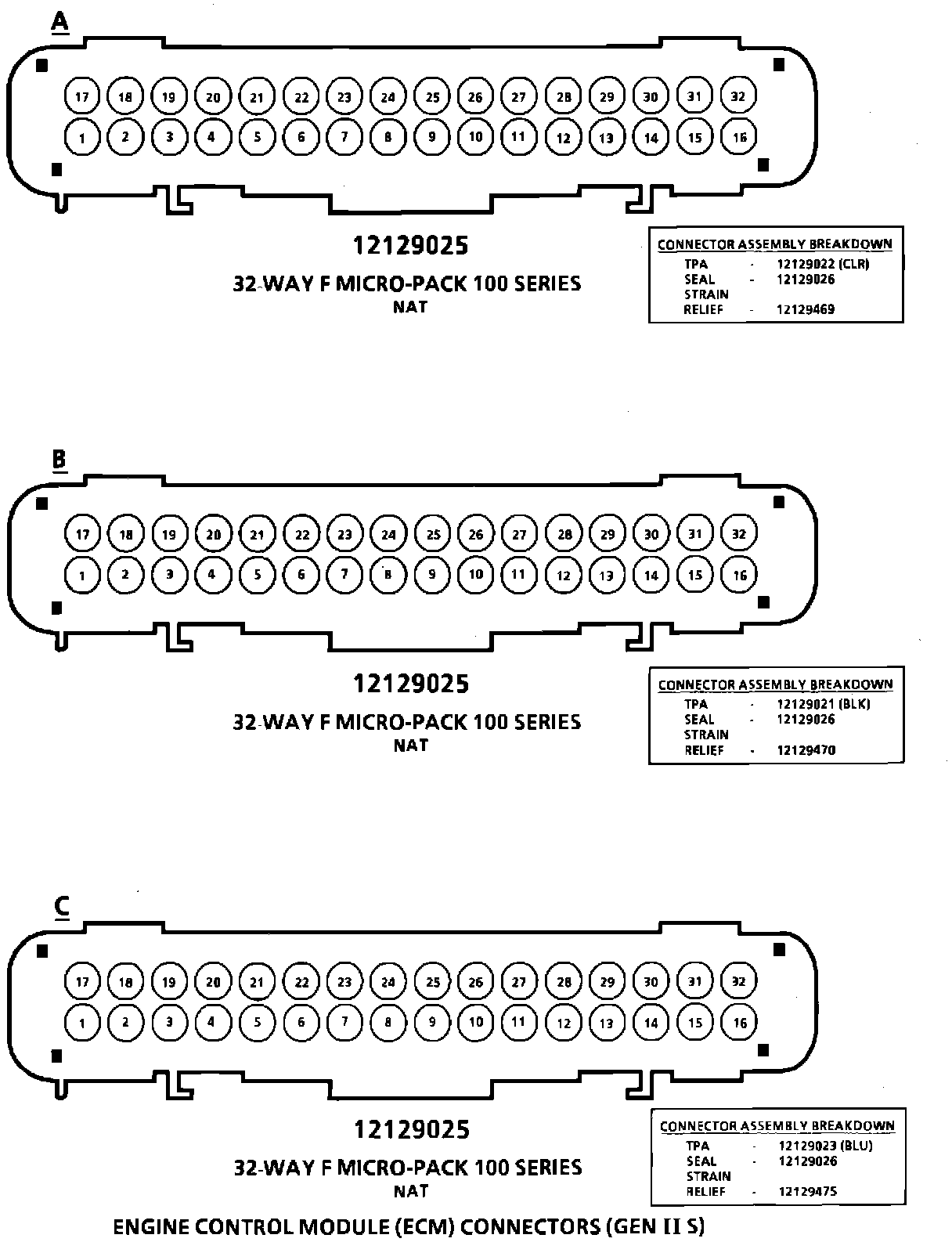

Engine Control Module Connectors:



Engine Control Module Connectors:



Engine Control Module Connectors:
