Pinout Description

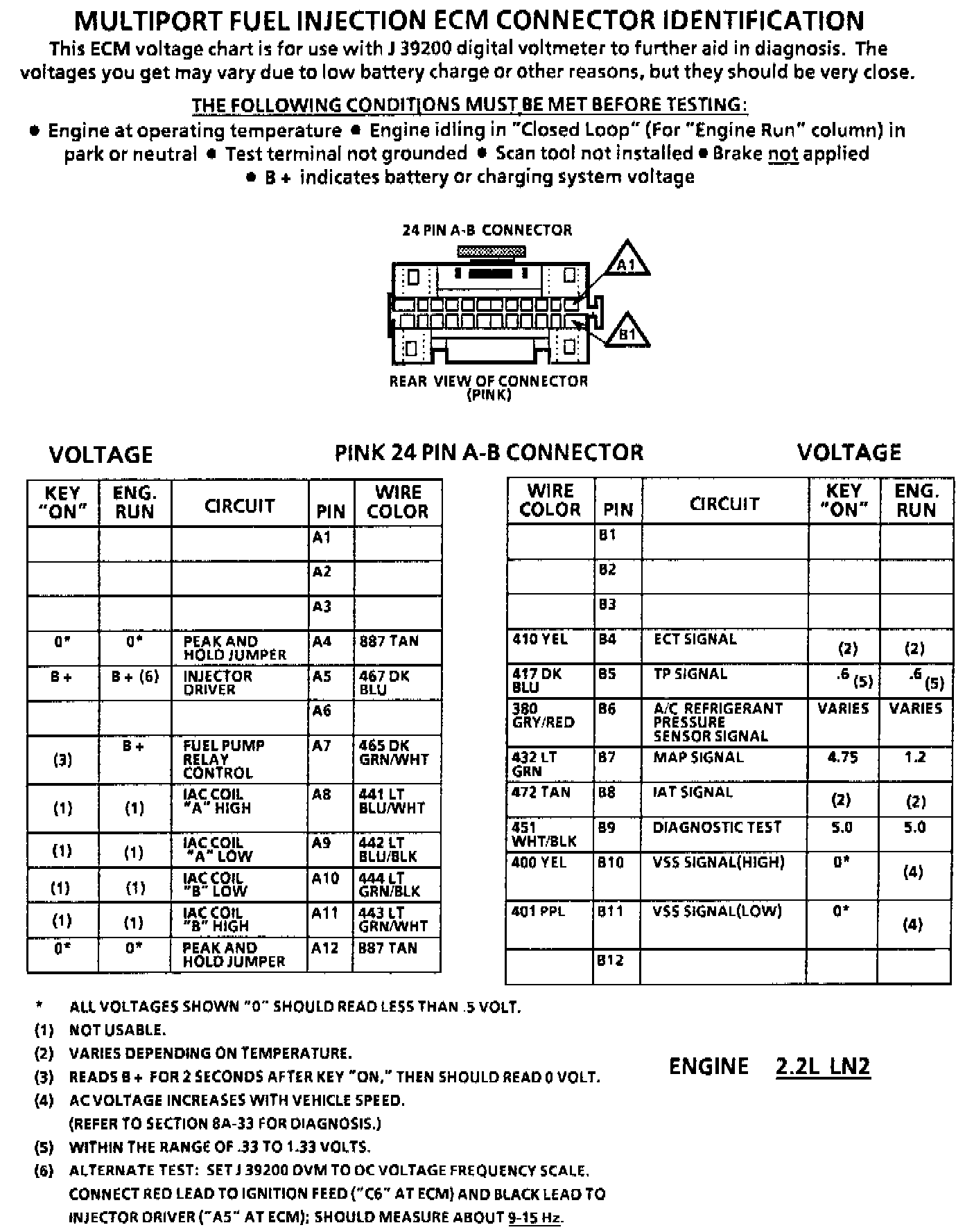

Pink 24 Pin A-B Connector ID:

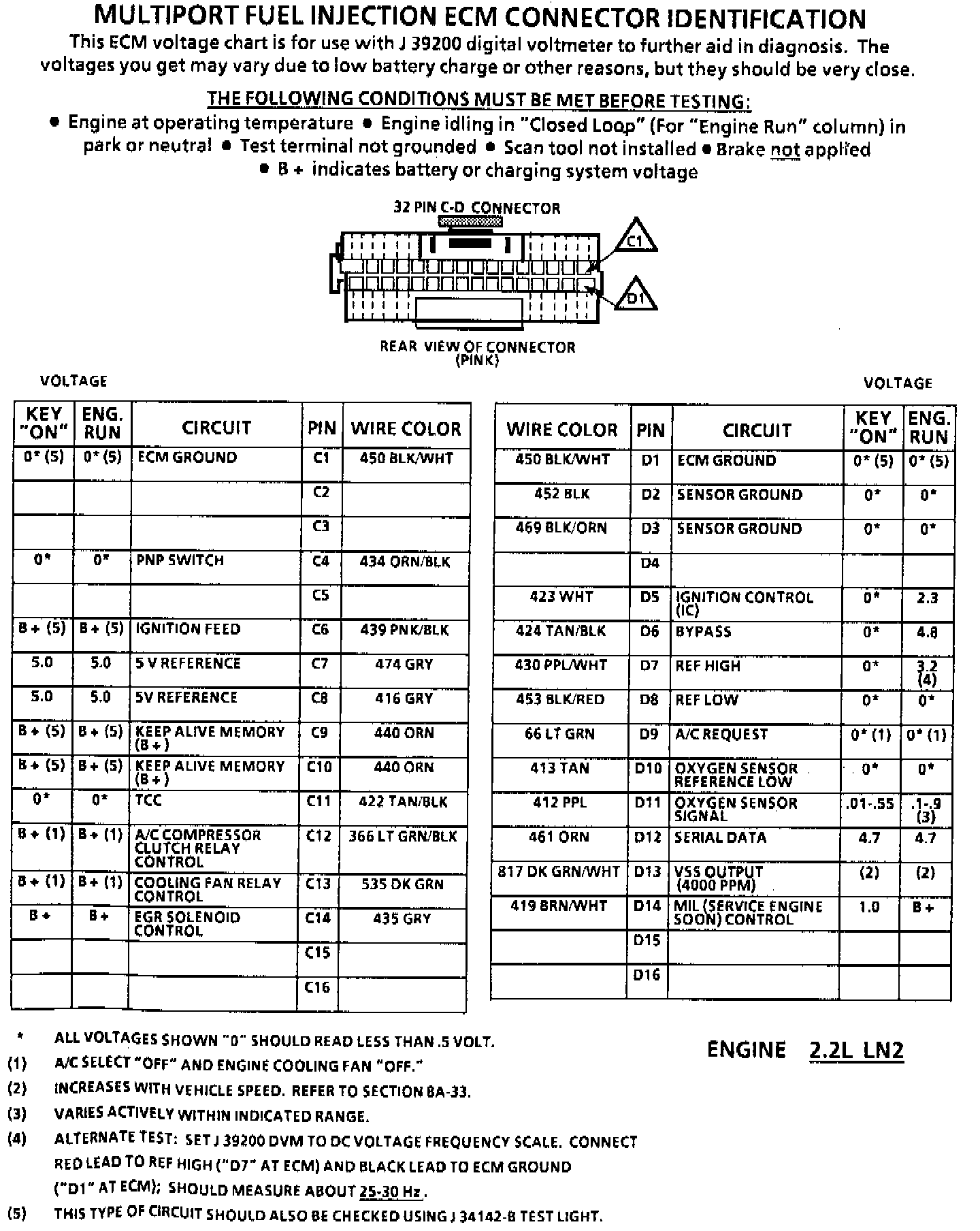

Pink 32 Pin C-D Connector ID:



ECM Connector Pin Voltage Chart:



ECM Connector Pin Voltage Chart:
