Home >> Oldsmobile >> 1990 >> Calais L4-151 2.5L VIN U TBI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

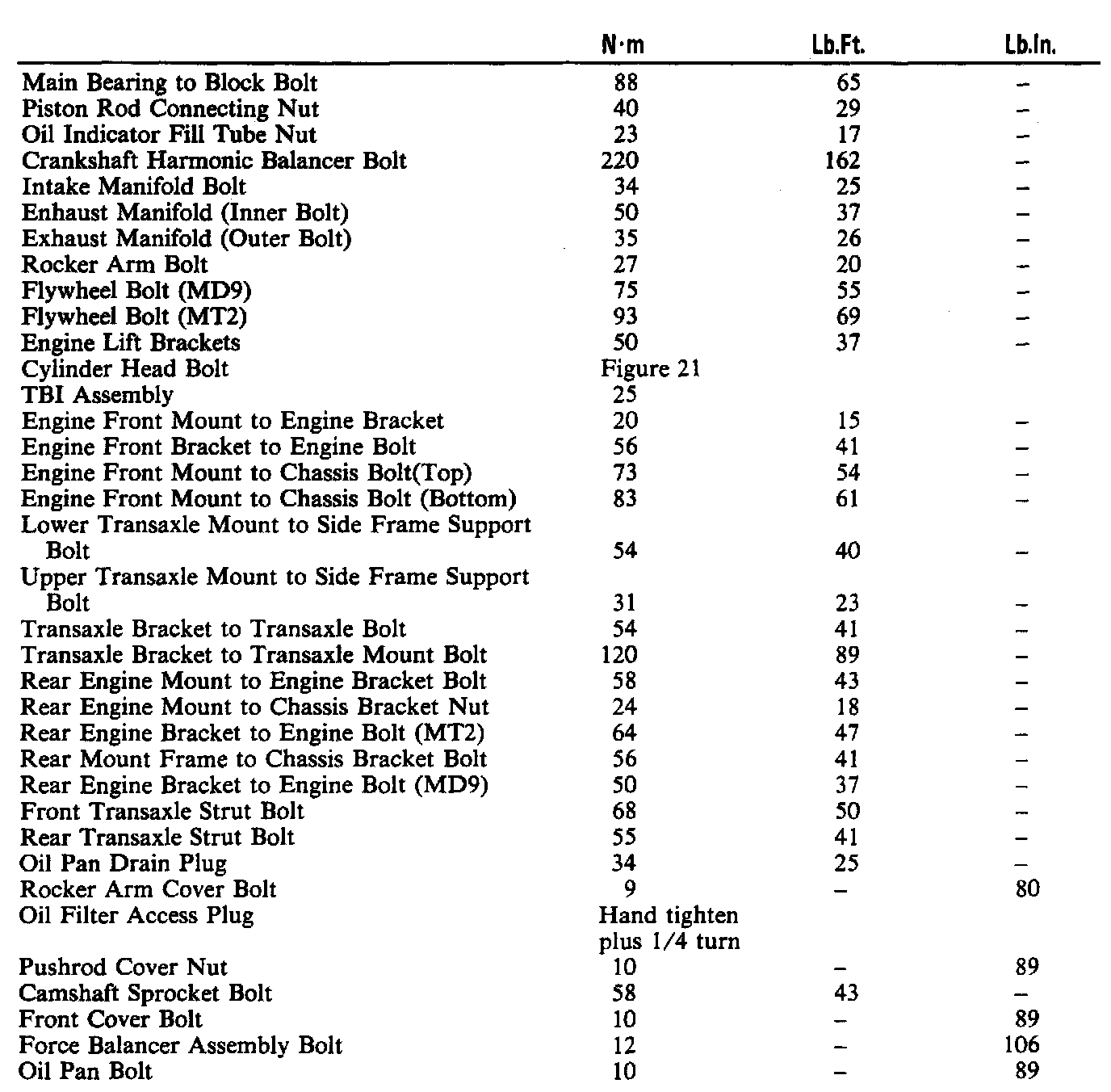

Torque Specifications:

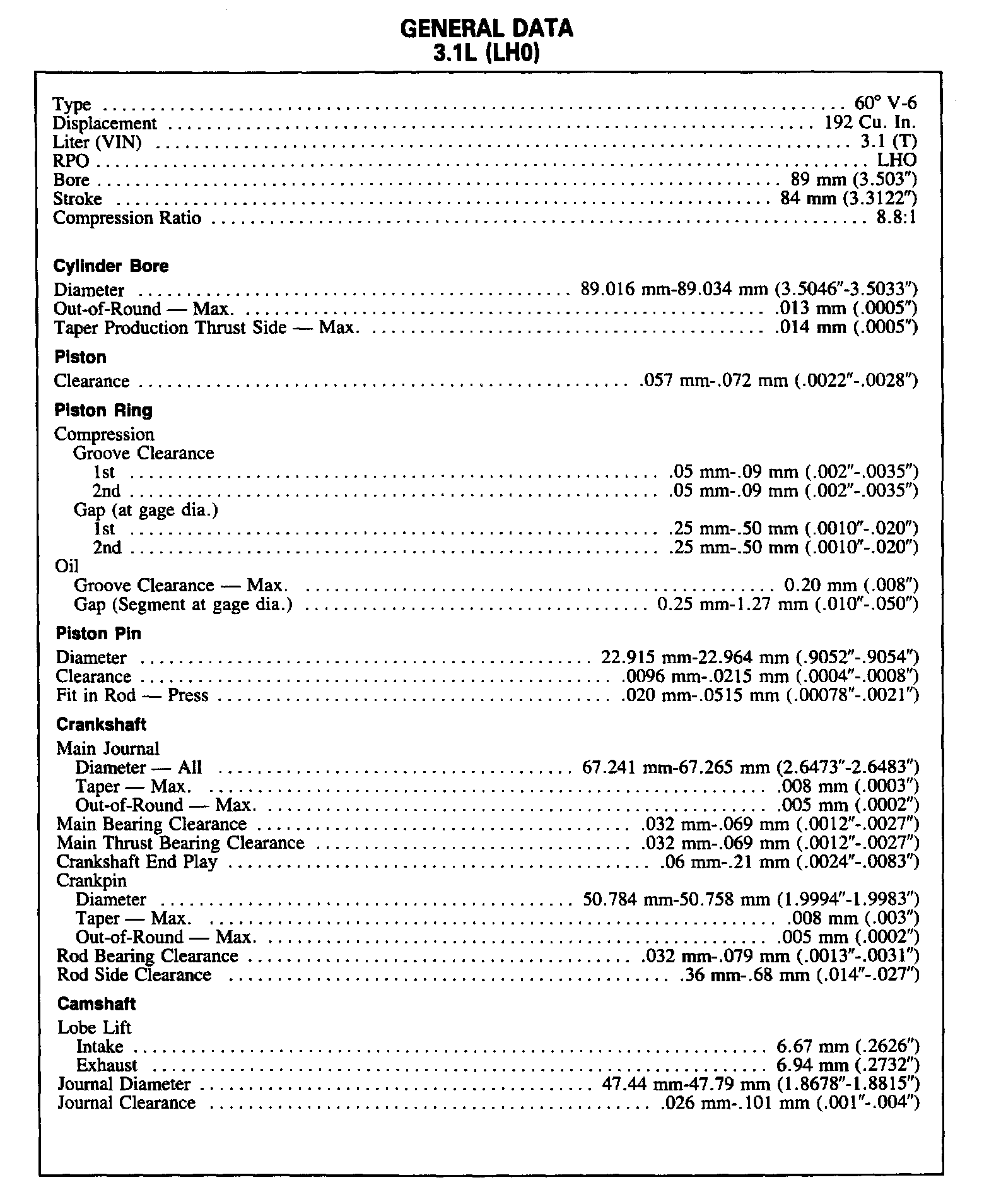

Engine Specifications:

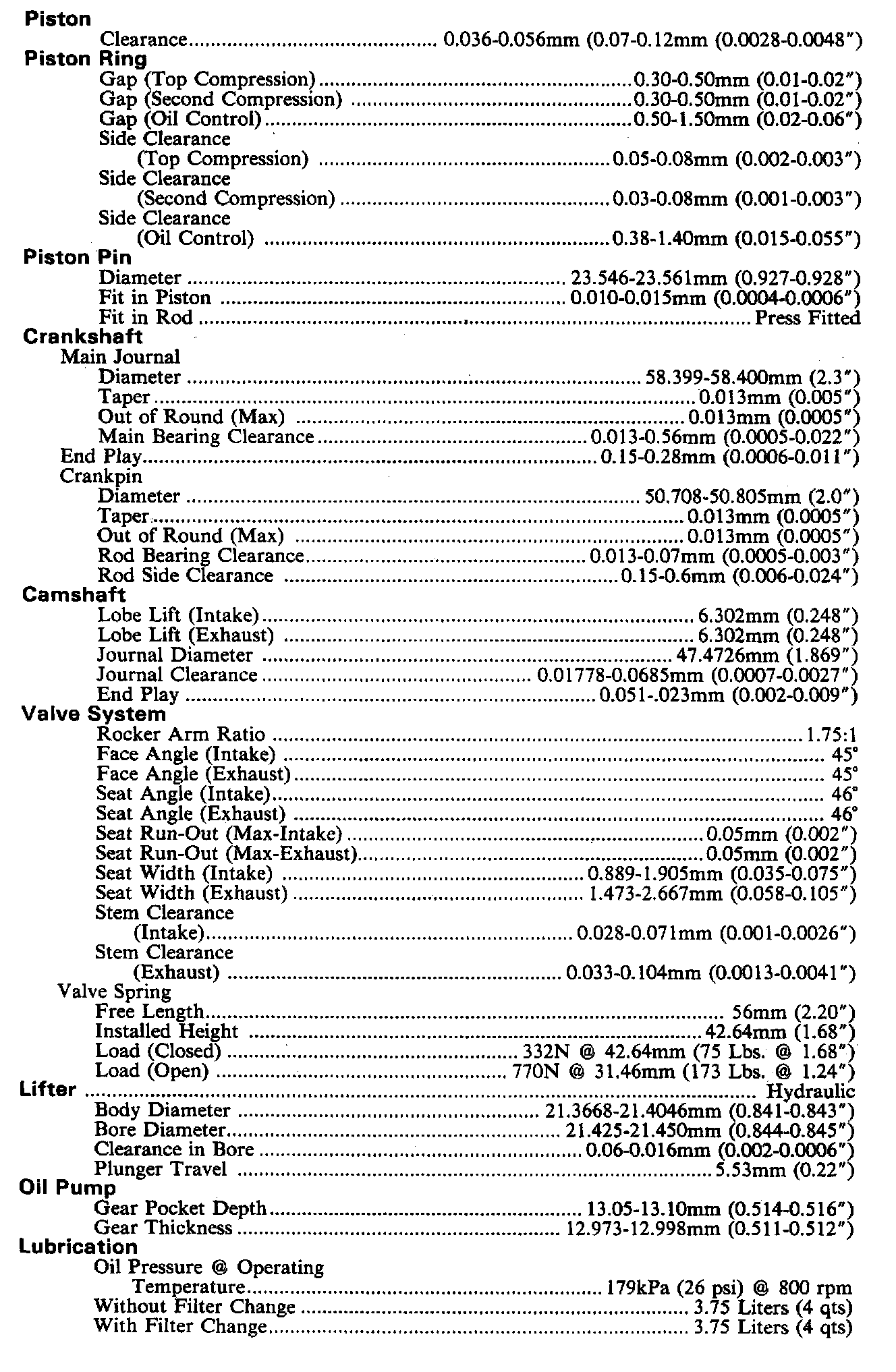

Engine Specifications:

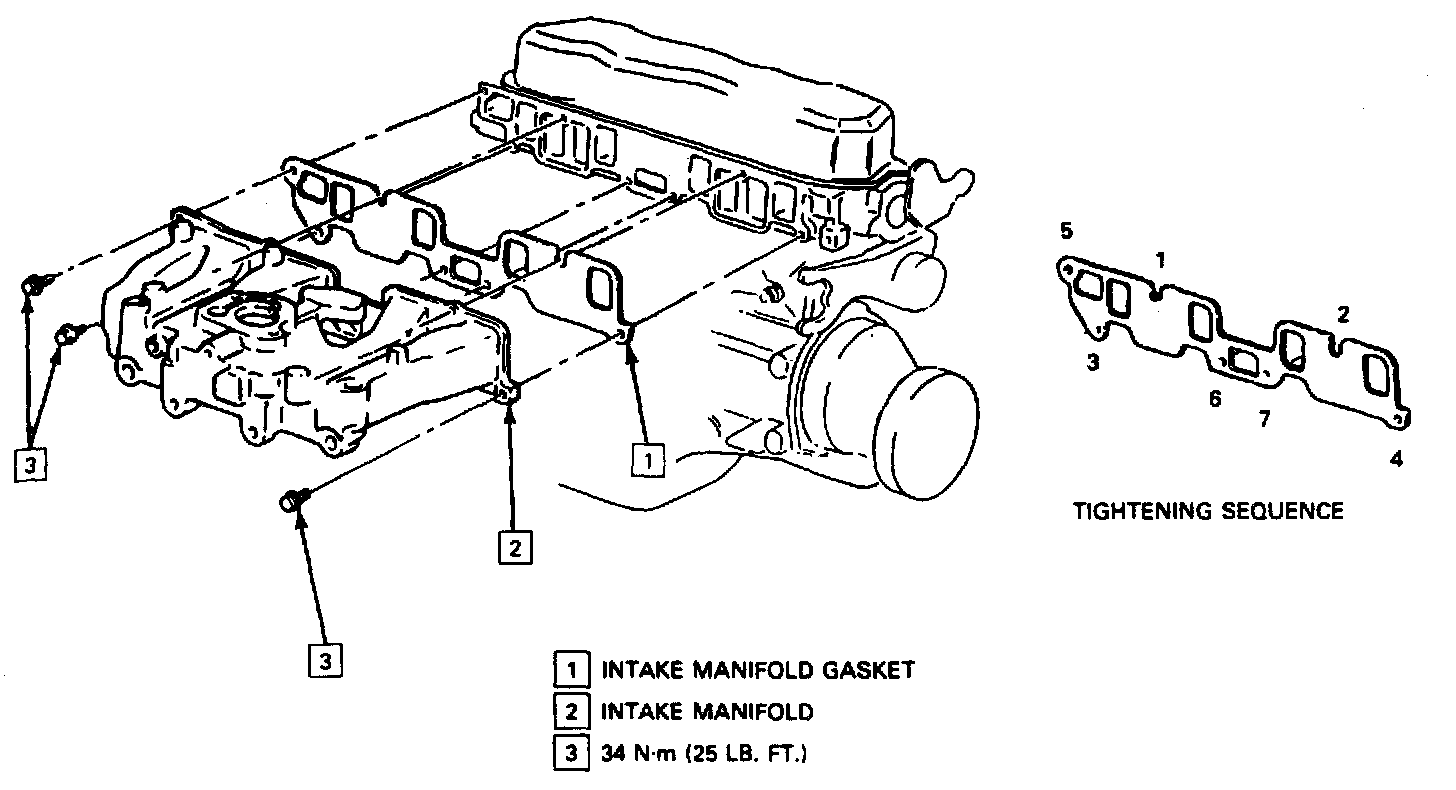

Intake Manifold Torque Sequence:

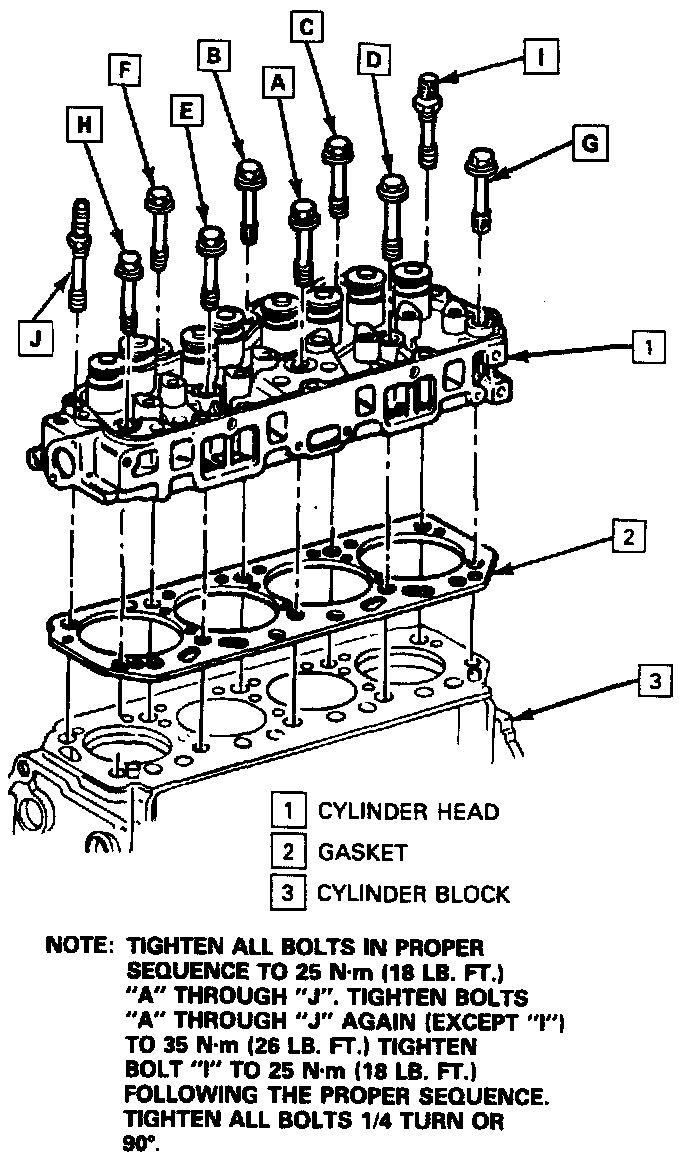

Cylinder Head Torque Specifications:
