Home >> Oldsmobile >> 1985 >> Ninety-Eight FWD V6-260 4.3L DSL >> Repair and Diagnosis >> Diagrams >> Components >> Motors >> Wiper/Washer Motor Module

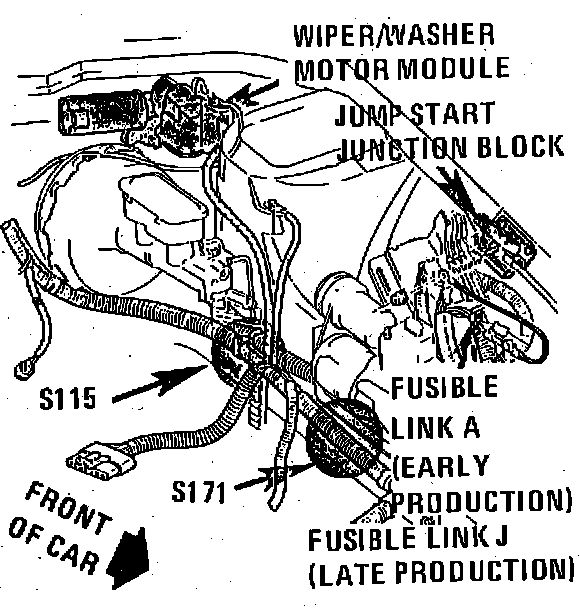

Wiper/Washer Motor Module

LH Side Of Engine Compartment.:




LH Front Of Cowl

Applicable to: 98
