Idle Up Control Relay: Locations

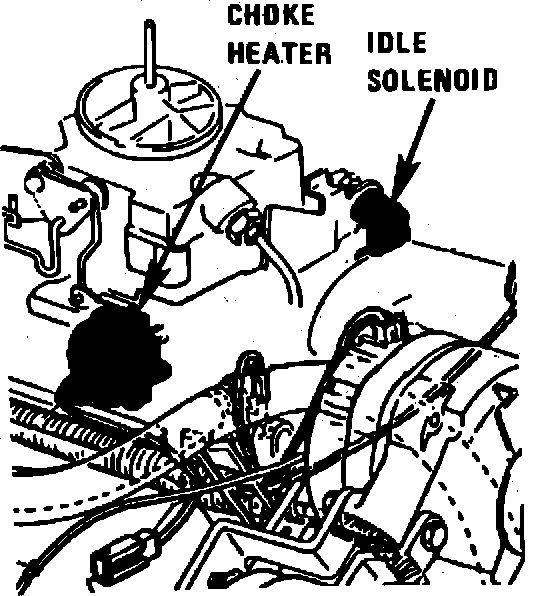

Top Of Engine.:




Attached To Carburetor

Applicable to: Oldsmobile w/V6 Engine
