Home >> Oldsmobile >> 1983 >> Toronado V8-350 5.7L DSL >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Computer Command Controls

Computer Command Controls

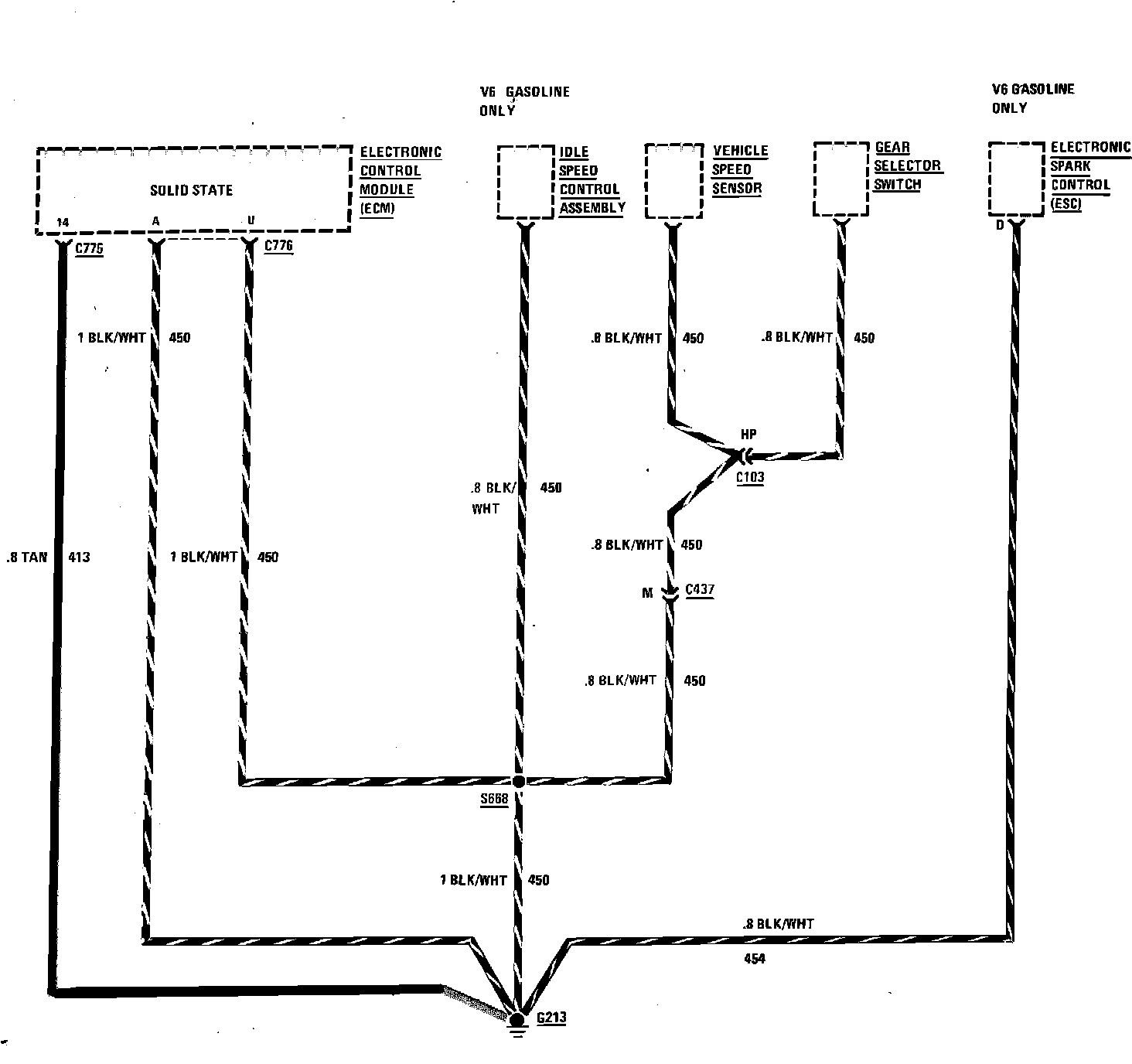

Ground Distribution (Computer Command Control):
