Home >> Oldsmobile Truck >> 2001 >> Silhouette V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C1

C1

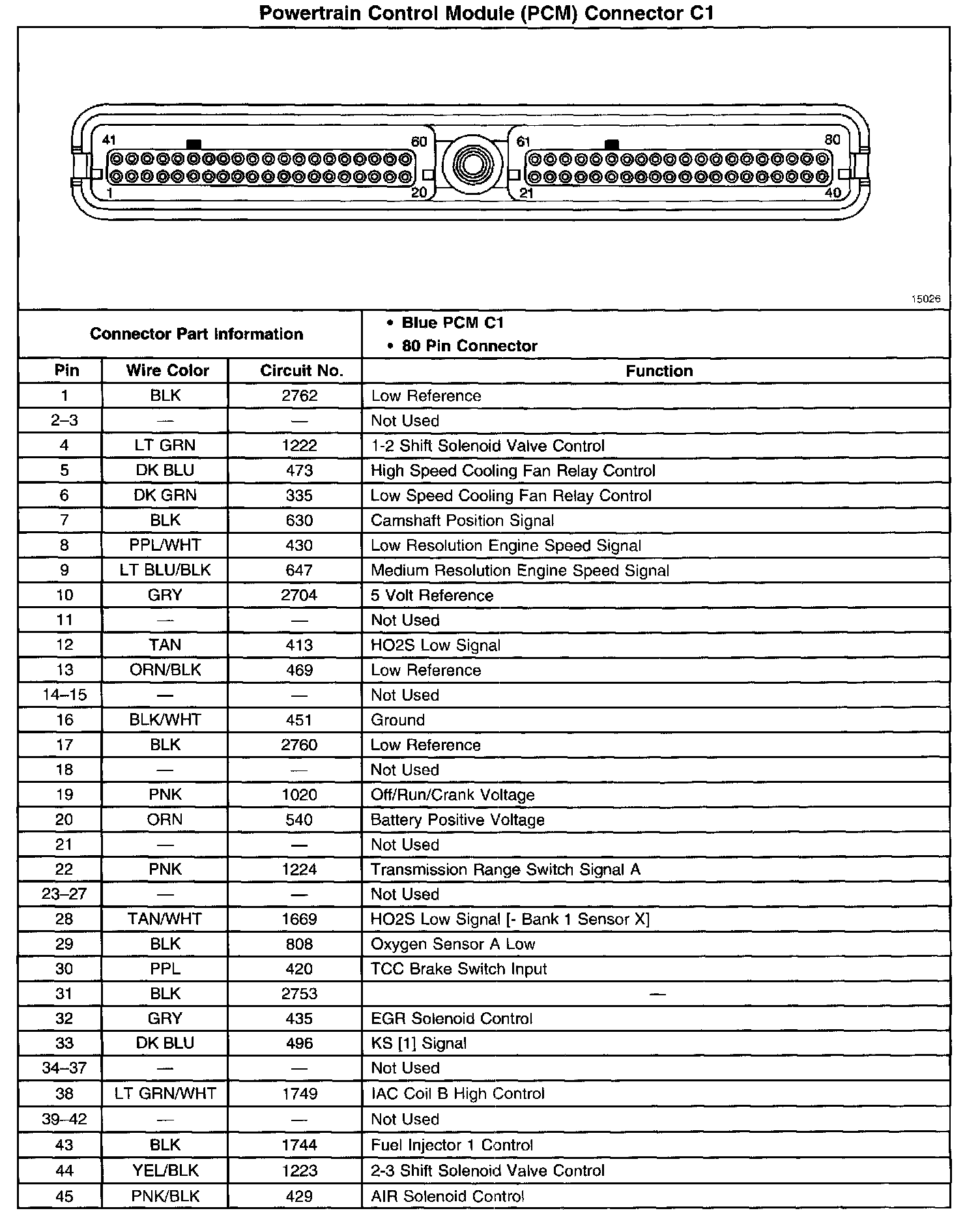

Powertrain Control Module (PCM) Connector C1 (Part 1 Of 2):

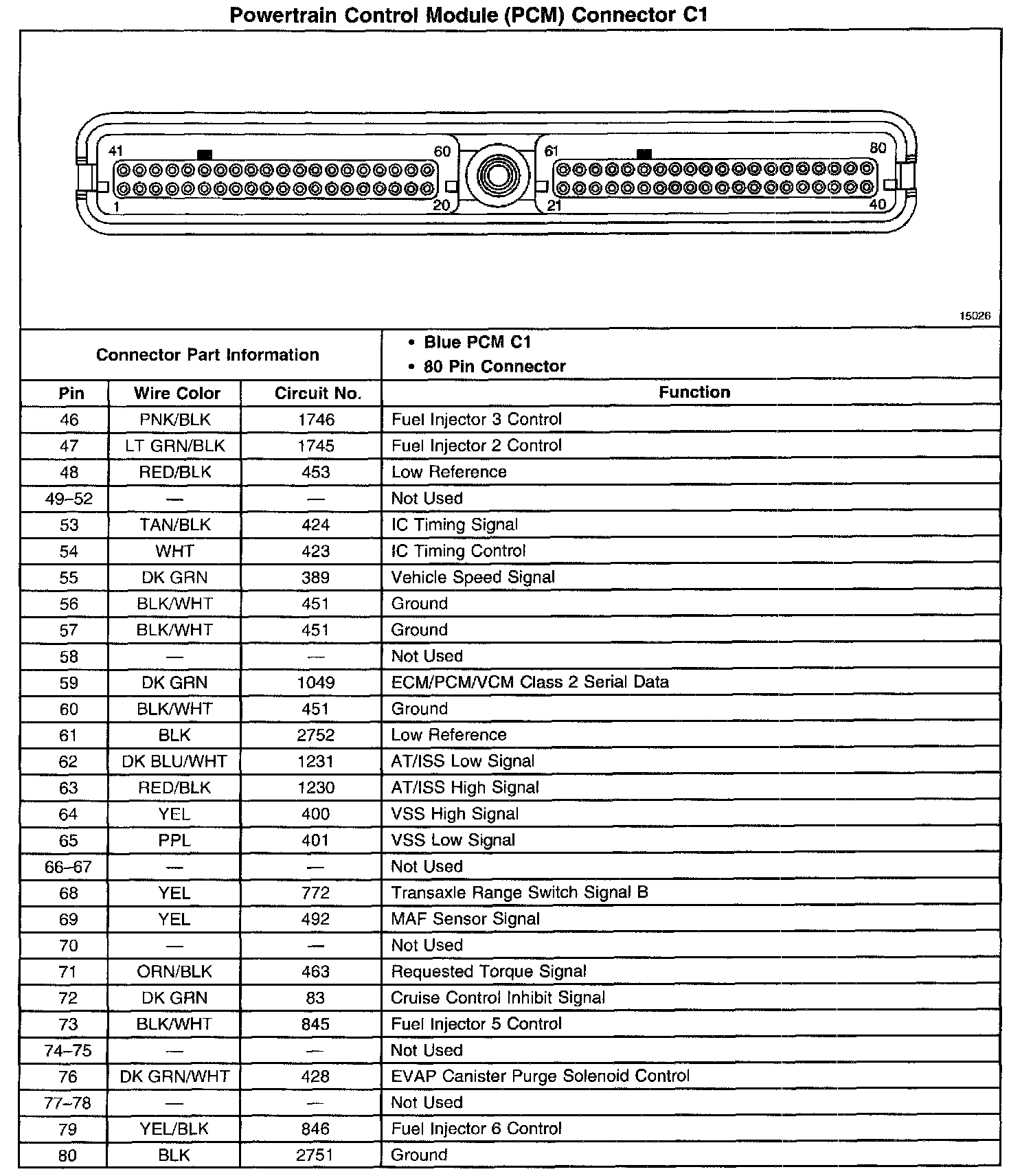

Powertrain Control Module (PCM) Connector C1 (Part 2 Of 2):

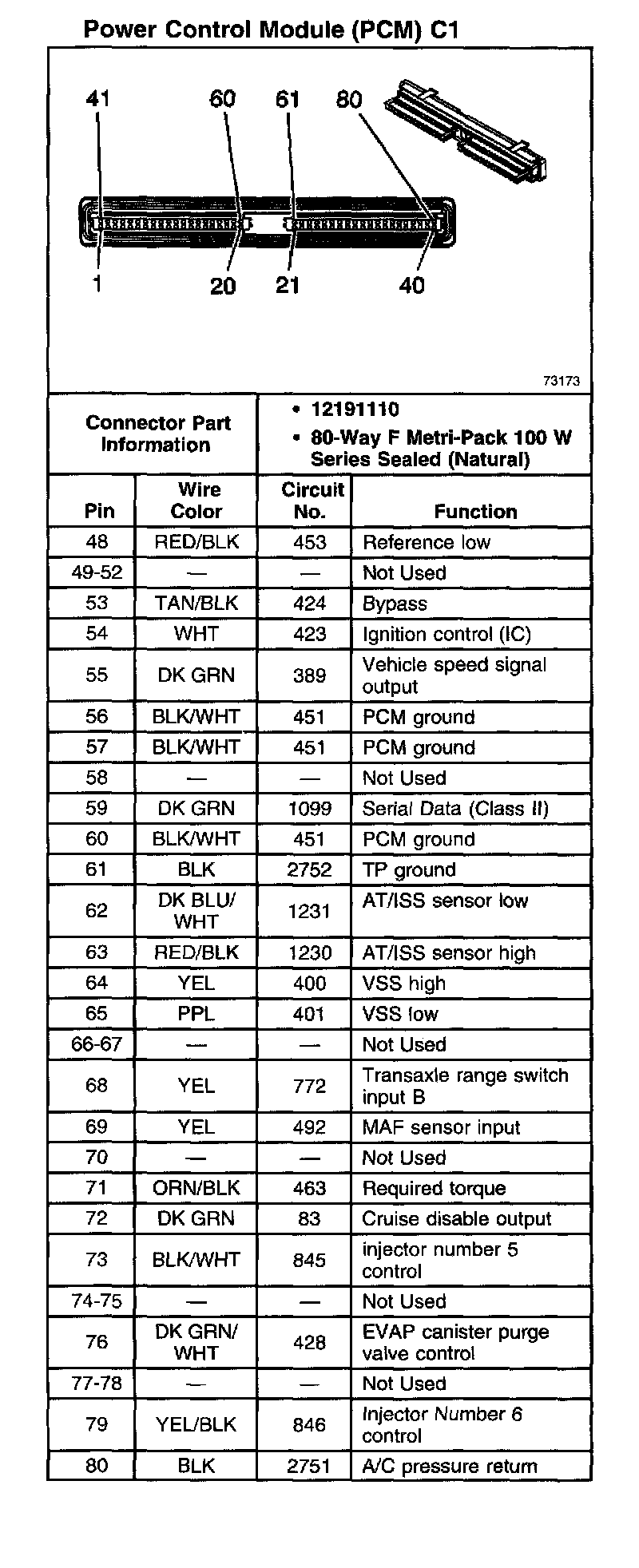

Power Control Module (PCM) C1 (Part 2 Of 3):

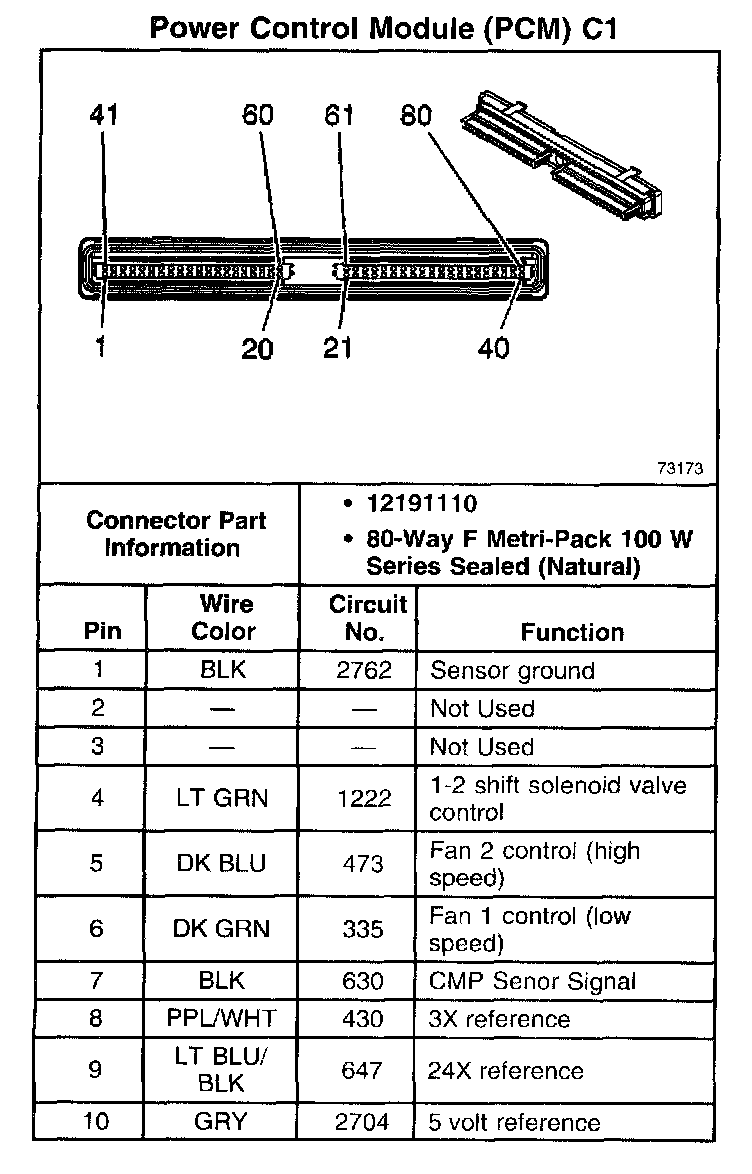

Power Control Module (PCM) C1 (Part 1 Of 3):

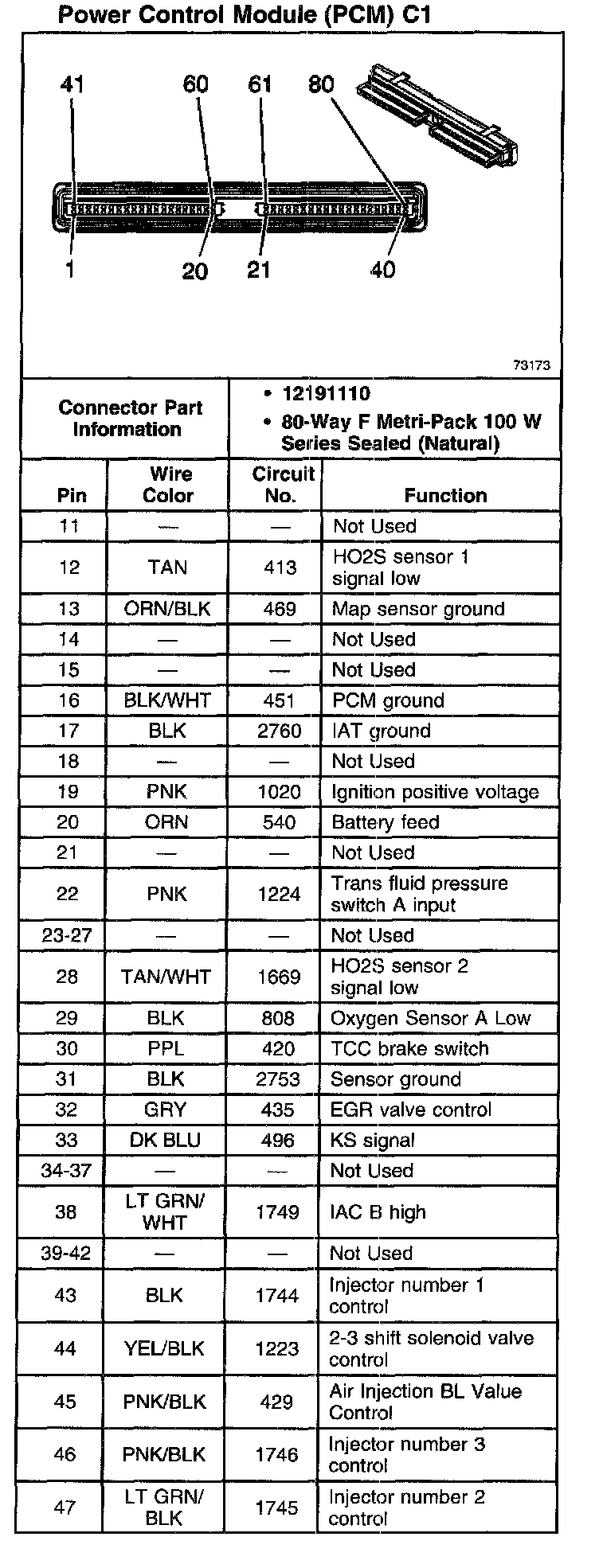

Power Control Module (PCM) C1 (Part 3 Of 3):
