Engine Cannot Be Started In "P" And "N" Position

TROUBLE DIAGNOSIS FOR SYMPTOMS

Engine Cannot Be Started in "P" and "N" Position


SYMPTOM:

-Engine cannot be started with selector lever in "P" or "N" position.
-Engine can be started with selector lever in "D", "2", "1" or "R" position.

DIAGNOSTIC PROCEDURE


1. CHECK TRANSMISSION RANGE SWITCH

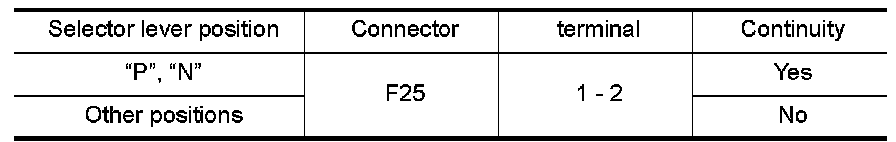

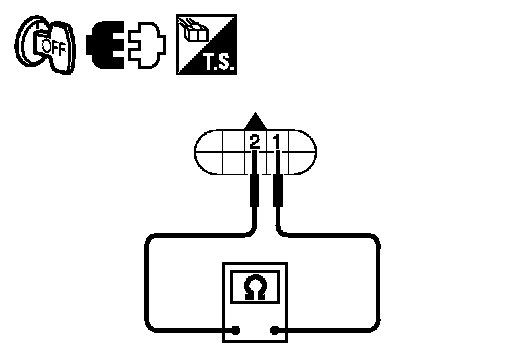

Check continuity between transmission range switch harness connector terminals. Transmission Range Switch A .





OK or NG
OK- GO TO 3.
NG- GO TO 2.

2. CHECK TRANSMISSION RANGE SWITCH

Check transmission range switch again with control cable disconnected from manual shaft of A/T assembly.
Refer to test group 1.
OK or NG
OK- Adjust A/T position. Adjustments .
NG- 1.Check transmission range switch (Refer to test group 1.) again after adjusting transmission range switch (Refer to {LINK_TO:0000000007329472} ).
-If OK, INSPECTION END
-If NG, repair or replace transmission range switch. Service and Repair .

3. CHECK STARTING SYSTEM

Check starting system. Refer to {LINK_TO:0000000007329889} .
OK or NG
OK-INSPECTION END
NG- Repair or replace damaged parts.
