Control Linkage

CONTROL LINKAGE

Removal and Installation


REMOVAL

1.Remove battery. Removal and Replacement.
2.Remove air cleaner and air duct. Removal And Installation.

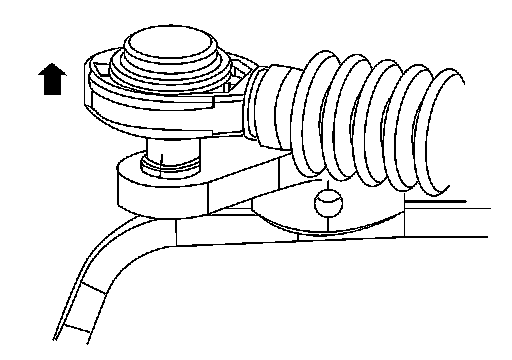

3.Remove shift cable from shifter lever as shown.





4.Remove select cable from selector lever A as shown.
5.Move shift selector to neutral position.
6.Remove shift selector knob.
7.Remove center console assembly. Removal And Installation.
8.Remove shift selector assembly nuts.
9.Remove exhaust front tube, center muffler and heat shield. Removal And Installation.
10.Remove cable support bracket.
11.Remove select cable and shift cable from cable bracket.
12.Remove shift selector assembly from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.
- Securely install each cable to shifter lever and selector lever.

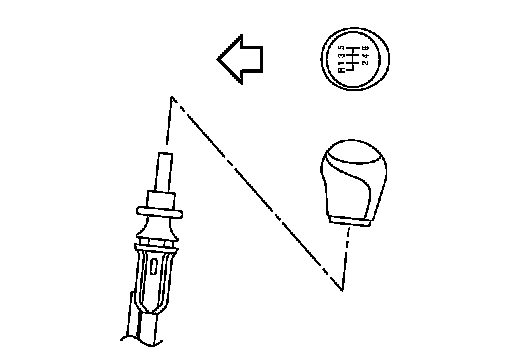

- Be careful about the installation direction, and screw shift selector knob onto shift selector.

White arrow indicates : Front

- When shift selector is moved to 1st-2nd side and 5th-6th side of neutral gate, confirm shift selector returns to neutral position smoothly.
- When shift selector is moved to each position, make sure there is no binding or disconnection of each boot.
