Scan Tool Testing and Procedures

TROUBLE DIAGNOSIS

CONSULT Function (EPS)


FUNCTION

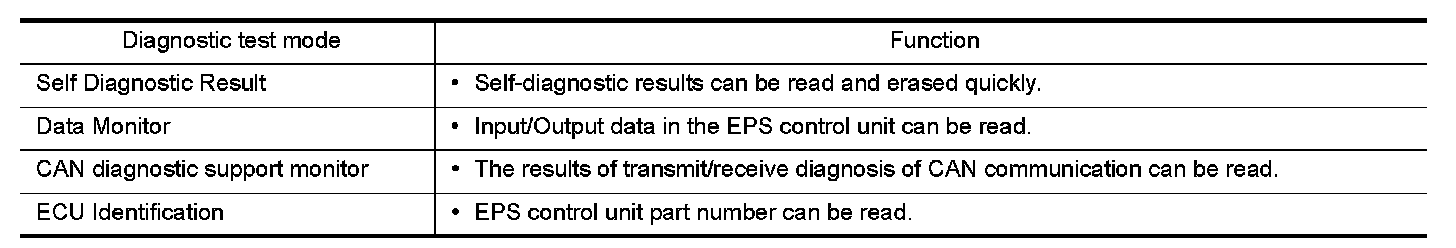

CONSULT can display each diagnostic item using the diagnostic test modes shown following.






SELF-DIAG RESULTS MODE

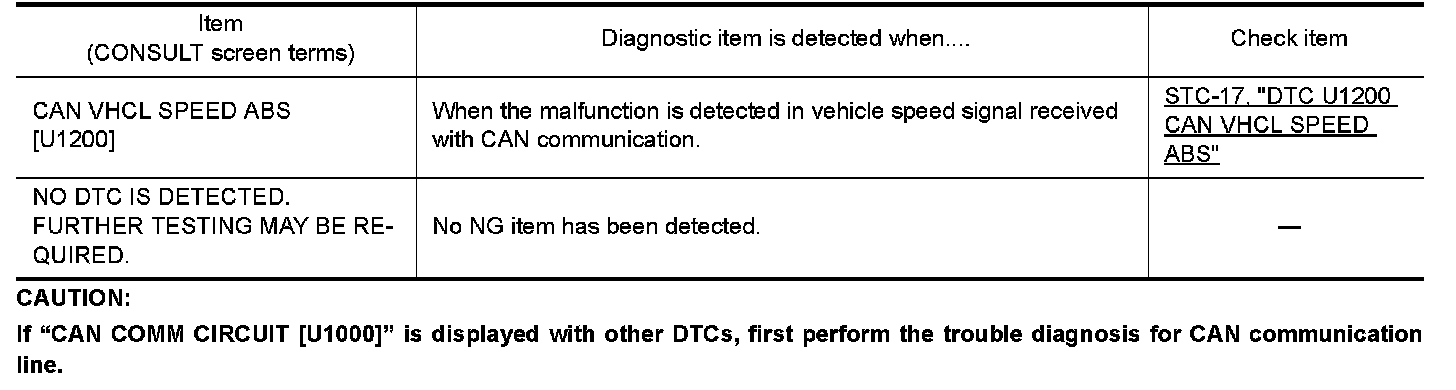

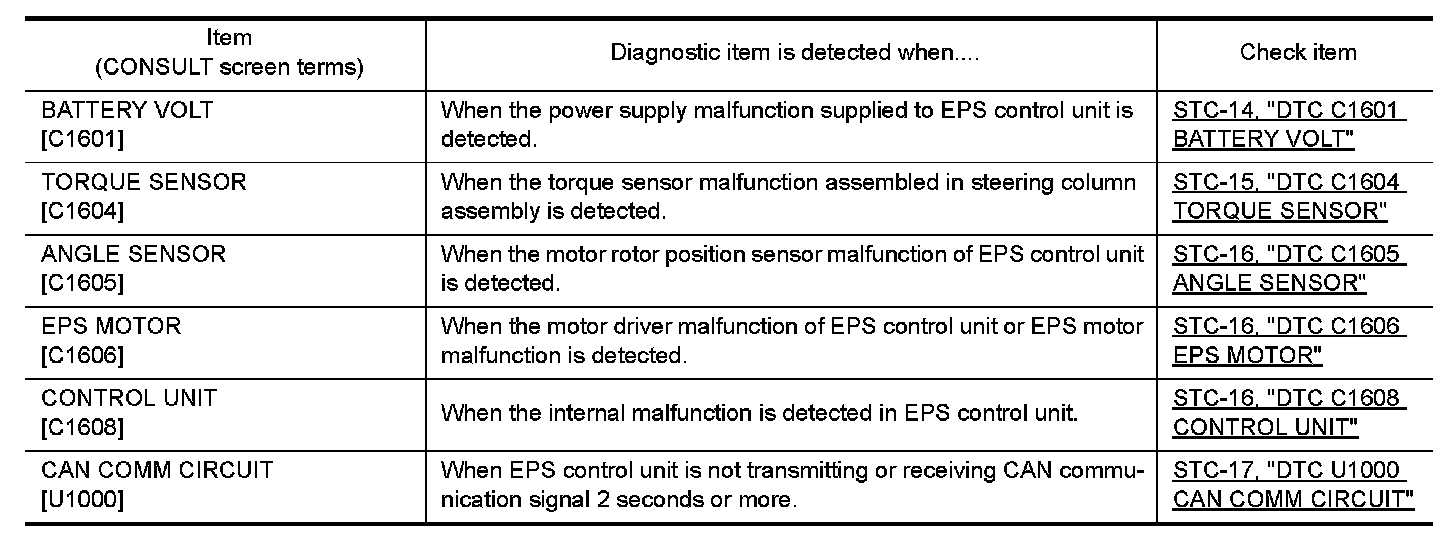

Display Item List











DATA MONITOR

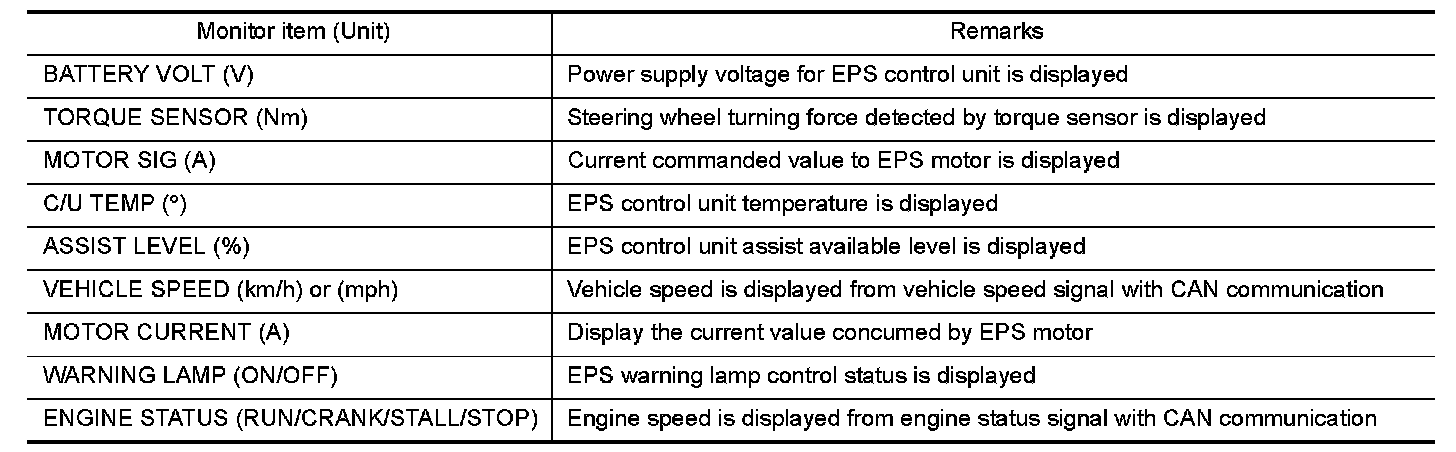

Display Item List
