Rear Seat Belt

REAR SEAT BELT

SEAT BELT RETRACTOR : Removal and Installation


REMOVAL

Outer seat belt retractor (2WD models)
1.Remove outer anchor.
1.Remove rear seat cushion from the vehicle.
Seat Cushion.
2.Remove outer anchor mounting anchor bolt.
2.Remove shoulder anchor.
1.Remove rear seatback from the vehicle.
Seatback.
2.Remove luggage side lower finisher.
Luggage Side Lower Finisher.
3.Remove luggage side upper finisher.
Luggage Side Upper Finisher.
4.Remove shoulder anchor mounting anchor bolt.
3.Remove outer seat belt retractor mounting anchor bolt, and then remove outer seat belt retractor.
Outer seat belt retractor (AWD models)
1.Remove outer anchor.
1.Remove rear seatback from the vehicle.
Seatback.
2.Remove rear seat cushion from the vehicle.
Seat Cushion.
3.Remove luggage side lower finisher.
Luggage Side Lower Finisher.
4.Remove outer anchor mounting anchor bolt.
2.Remove shoulder anchor.
1.Remove luggage side upper finisher.
Luggage Side Upper Finisher.
2.Remove shoulder anchor mounting anchor bolt.
3.Remove outer seat belt retractor mounting anchor bolt, and then remove outer seat belt retractor.
Center seat belt retractor
1.Remove center anchor.
1.Remove rear seat cushion from the vehicle.
Seat Cushion.
2.Remove center anchor mounting anchor bolt.
2.Remove rear seatback LH from the vehicle.
Seatback.
3.Remove center seat belt finisher from seatback.

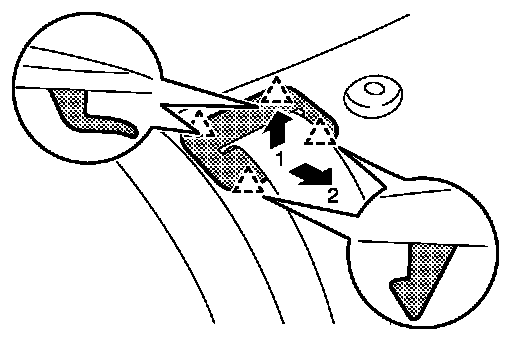

Lift up front of center seat belt finisher. Disengage front pawls.
Pull center seat belt finisher toward seat front. Disengage rear pawls.

Broken triangle indicates : Pawl

4.Remove seatback trim and seatback pad from seatback frame.
Seatback.
5.Remove seatback silencer from seatback frame.
6.Remove center seat belt retractor.

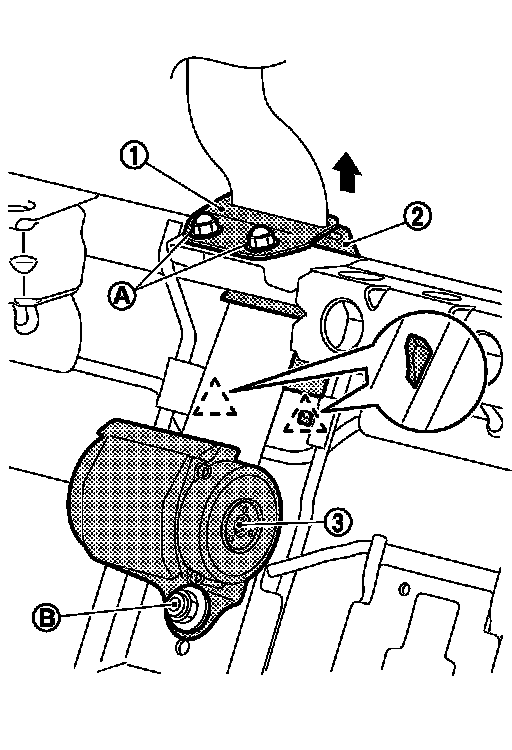

1.Remove mounting nuts (A) of upper webbing guide (1).
Remove upper webbing guide (1) from seatback frame.
2.Disengage pawls of lower webbing guide (2). Remove lower webbing guide (2) in direction indicated by arrow as shown in the figure.
3.Remove mounting anchor nut (B) of center seat belt retractor (3) from seatback frame.

Broken triangle indicates : Pawl


INSTALLATION

Install in the reverse order of removal.
