Removal And Installation

SATELLITE SENSOR

Removal and Installation


WARNING:
- Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or more.
- Never use the air tools or electric tools for servicing.

FRONT SATELLITE SENSOR

Removal
1.Remove the front door finisher. Removal And Installation.
2.Remove sealing screen (lower side).
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing screen is reused.

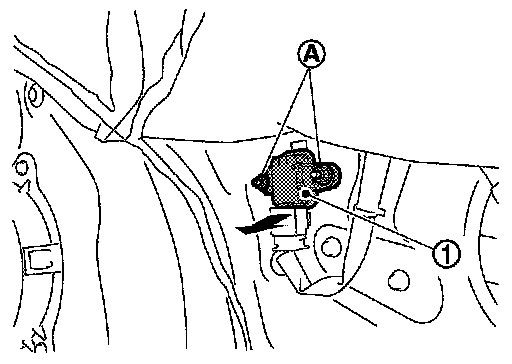

3.Remove the front satellite sensor mounting nuts (A), and then pull the front satellite sensor (1).
4.Disconnect the harness connector and then remove the front satellite sensor.

CAUTION:





- Never impact the front satellite sensor.
- Replace the front satellite sensor if it has been dropped or sustained an impact.
- Replace the front satellite sensor of deployed side air bag module and deployed curtain air bag module.
Installation
Note the following items, and then install in the reverse order of removal.

CAUTION:
- Never use the old fixing nuts after removal, replace with the new nuts.
- Never damage the harness while installing.
- Always install normally aligning to the cutout hole, because performance of the front satellite sensor excessively fluctuates according to the installation position.
- If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT. On Board Diagnosis Function or Supplemental Restraints.
- After the work is completed, check that no system malfunction is detected by air bag warning lamp.

REAR SATELLITE SENSOR

Removal
1.Remove the center pillar lower garnish. Center Pillar Lower Garnish.

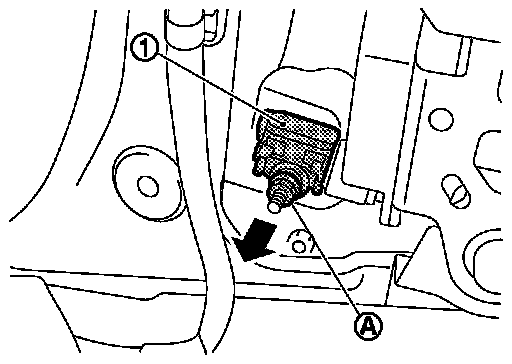

2.Remove the rear satellite sensor mounting nut (A), and then pull the rear satellite sensor (1).
3.Disconnect the harness connector and then remove the rear satellite sensor.

CAUTION:





- Never impact the rear satellite sensor.
- Replace the rear satellite sensor if it has been dropped or sustained an impact.
- Replace the rear satellite sensor of deployed side air bag module and deployed curtain air bag module.

Installation
Note the following items, and then install in the reverse order of removal.

CAUTION:
- Never use the old fixing nut after removal, replace with the new nut.
- Never damage the harness while installing.
- Always install normally aligning to the cutout hole, because performance of the rear satellite sensor excessively fluctuates according to the installation position.
- If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunctioning parts, reset the memory using self-diagnosis or CONSULT. On Board Diagnosis Function or Supplemental Restraints.
- After the work is completed, check that no system malfunction is detected by air bag warning lamp.
