Key Warning Lamp

KEY WARNING LAMP

Component Function Check


1. CHECK FUNCTION

1.Select "INTELLIGENT KEY" of "BCM" using CONSULT.
2.Select "INDICATOR" in "ACTIVE TEST" mode.

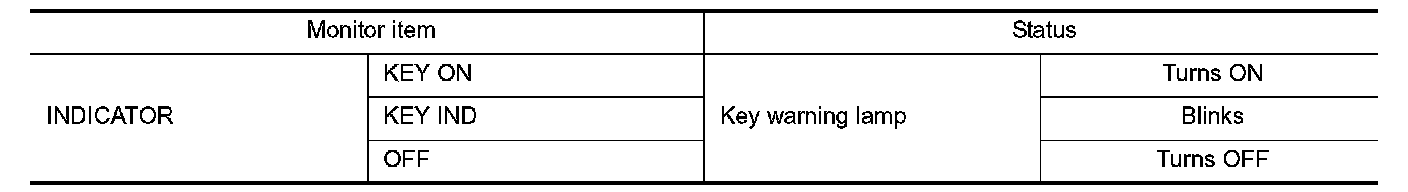

3.Check that the function operates normally according to the following conditions.





Is the inspection result normal?
YES- Key warning lamp is OK.
NO- .


Diagnosis Procedure


1. CHECK KEY WARNING LAMP

Reading and Clearing Diagnostic Trouble Codes.
Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace the malfunctioning parts.

2. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
