Rear Heater Duct 2

DUCT AND GRILLE

REAR HEATER DUCT 2 : Removal and Installation


REMOVAL

1.Remove center console assembly. Removal And Installation.
2.Remove front seat assembly. Removal and Installation.
3.Remove front kicking plate inner and rear kicking plate inner. Kicking Plate Inner.
4.Remove center pillar lower garnish. Center Pillar Lower Garnish.
5.Remove dash side finisher. Dash Side Finisher.





6.Remove rear heater duct 2. (Models for Canada only)

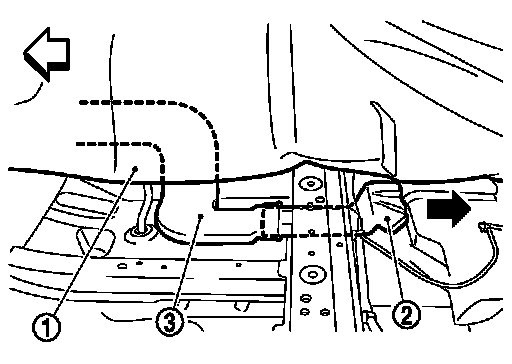

- Peel off floor carpet (1).
- Remove rear heater duct 3 (2) from rear heater duct 2 (3).

White arrow indicates : Vehicle front

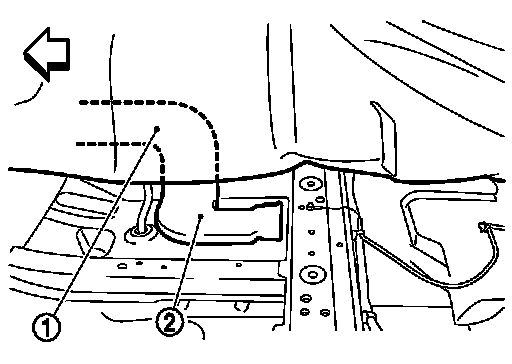

- Remove front floor spacer, and then remove rear heater duct 2
(2) from rear heater duct 1 (1).

White arrow indicates : Vehicle front


INSTALLATION

Install in the reverse order of removal.
