Luggage Side Upper Finisher

LUGGAGE FLOOR TRIM

LUGGAGE SIDE UPPER FINISHER : Removal and Installation


REMOVAL


CAUTION:
- When removing, always use a remover tool that is made of plastic.
- Never damage the body.
1.Remove luggage side lower finisher. Luggage Side Lower Finisher.
2.Remove rear seat belt (floor) anchor bolt. Rear Seat Belt.

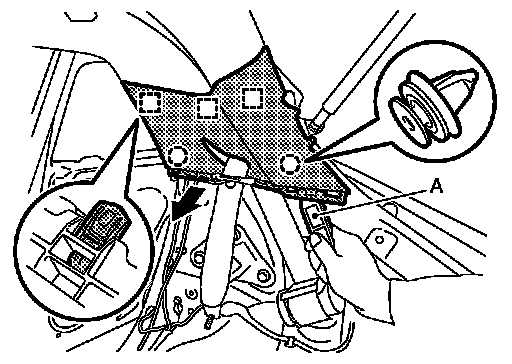

3.Disengage luggage side upper finisher fixing clips and metal clips with a remover tool (A), and then remove luggage side upper finisher.

Broken circle indicates : Clip
Broken square indicates : Metal Clip

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:
When installing luggage side upper finisher, check that clips, and metal clips are securely in body panel holes, and press them in.
