FUEL FILLER LID OPENER

FUEL FILLER LID LOCK : Removal and Installation


REMOVAL

1.Fully open fuel filler lid.
2.Remove luggage side lower finisher (RH). Luggage Side Lower Finisher.

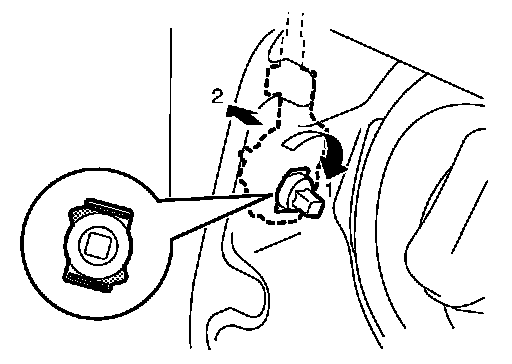

3.Rotate and disengage fuel filler lid lock assembly, and then remove fuel filler lid lock assembly.
NOTE:
Operation is performed easily when rotating fuel filler lid lock from passenger room side.

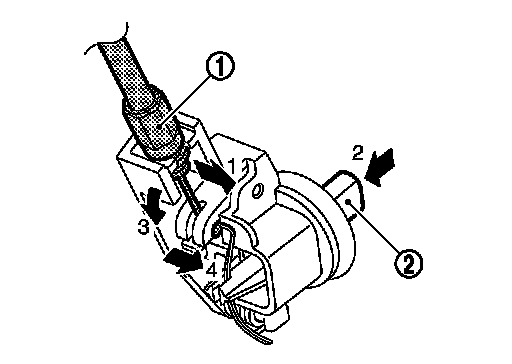

4.Disengage fuel filler lid opener cable (1). Remove fuel filler lid opener cable while pressing stopper pin (2).

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:
After installation, check fuel filler lid assembly open/close, lock/unlock operation.
