P159C

P159A, P159C, P159D G SENSOR

DTC Logic

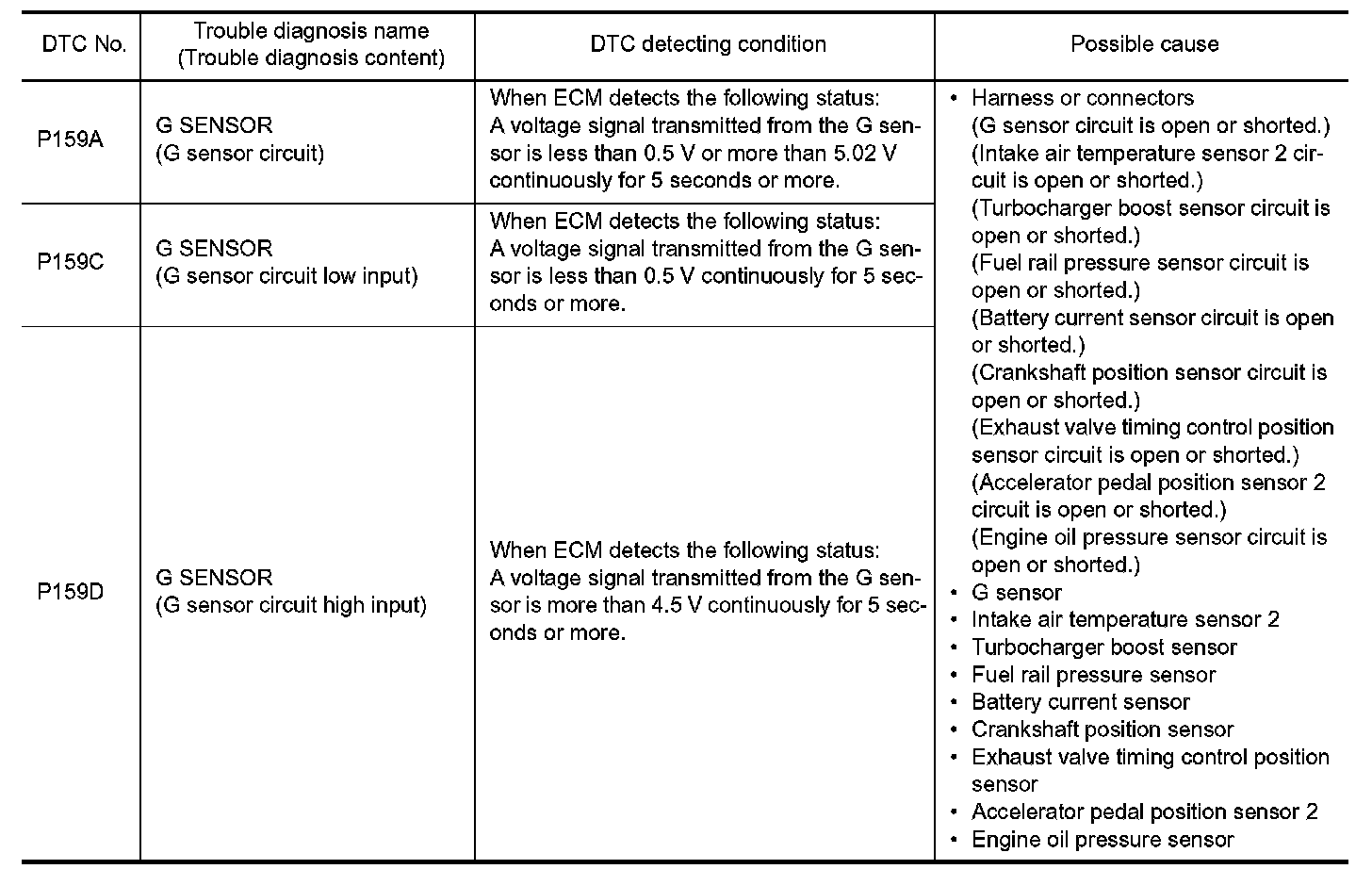

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.

TEST CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Start engine and let it idle for at least 5 seconds.
2.Check 1st trip DTC.
Is 1st trip DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK G SENSOR POWER SUPPLY CIRCUIT-I

1.Turn ignition switch OFF.
2.Disconnect G sensor harness connector.
3.Turn ignition switch ON.

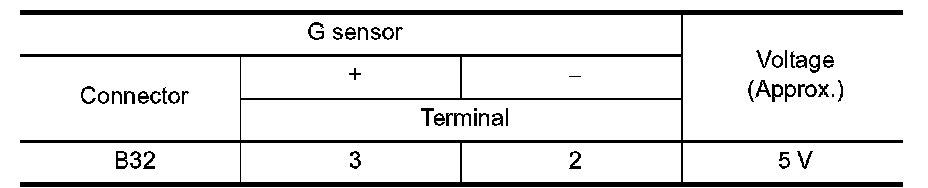

4.Check the voltage between G sensor harness connector terminals.





Is the inspection result normal?
YES- GO TO 2.
NO- GO TO 4.

2. CHECK G SENSOR SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

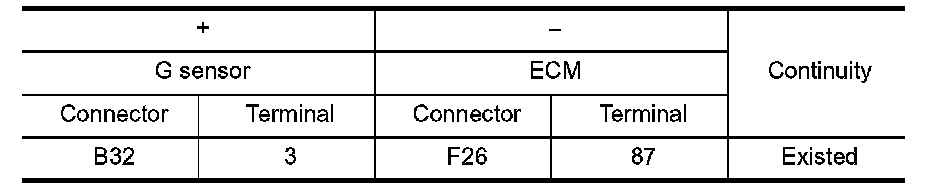

3.Check the continuity between G sensor harness connector and ECM harness connector.





4.Also check harness for short to ground and short to power.
Is the inspection result normal?
YES- GO TO 3.
NO - Repair or replace error-detected parts.

3. CHECK G SENSOR

Check G sensor. .
Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- 1.Replace G sensor.
2.Perform calibration of G sensor. Work Procedure.

4. CHECK G SENSOR POWER SUPPLY CIRCUIT-II

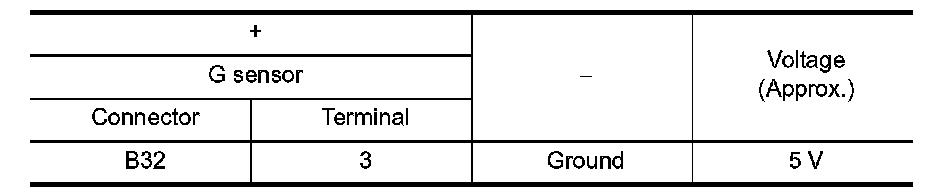

Check the voltage between G sensor harness connector terminal and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 7.

5. CHECK G SENSOR GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connector.

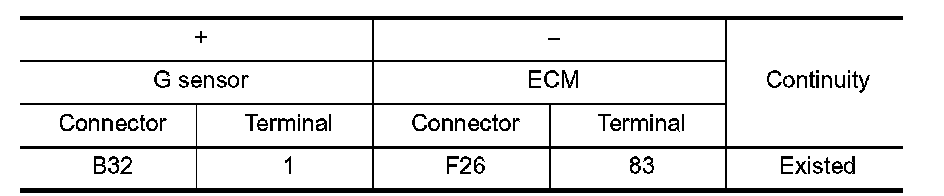

3.Check the continuity between G sensor harness connector and ECM harness connector.





Is the inspection result normal?
YES- GO TO 6.
NO - Repair or replace error-detected parts.

6. CHECK ECM GROUND CIRCUIT

Check the continuity between ECM harness connector and ground.





Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO - Repair or replace error-detected parts.

7. CHECK SENSOR POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect ECM harness connectors and each sensor harness connectors

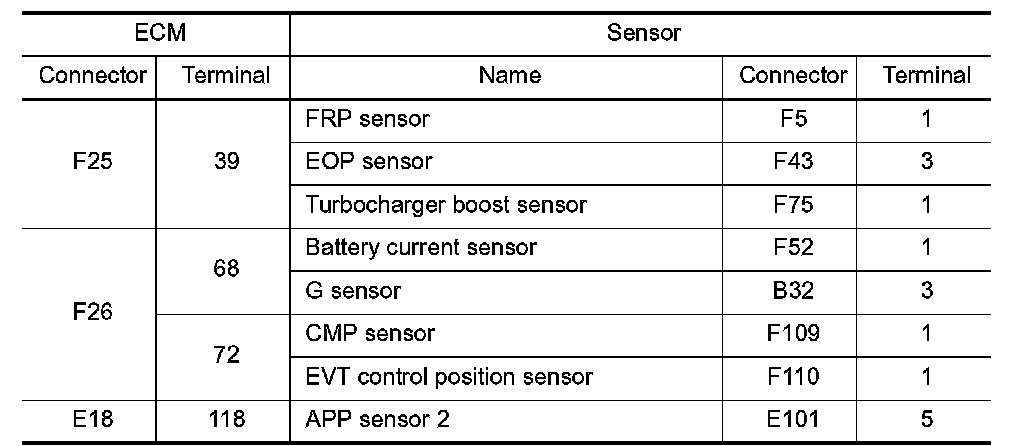

3.Check harness connector for short to power and short to ground, between the following terminals.





Is the inspection result normal?
YES- Perform the trouble diagnosis for power supply circuit.
NO - Repair or replace error-detected parts.


Component Inspection


1. CHECK G SENSOR

With CONSULT
1.Remove G sensor.
2.Reconnect all harness connectors disconnected.

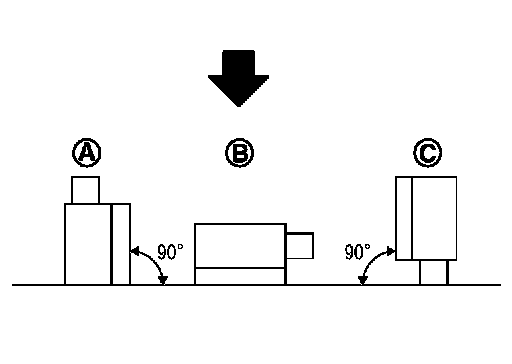

3.Place the G sensor on a flat table.
4.Turn ignition switch ON.

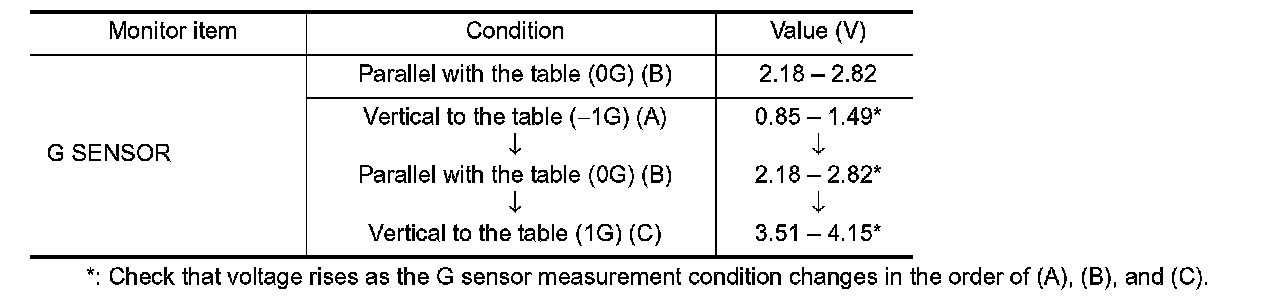

5.Select "G SENSOR" in "DATA MONITOR" mode of "ENGINE"
using CONSULT to check indications according to the following conditions:





Without CONSULT
1.Remove G sensor.
2.Reconnect all harness connectors disconnected.
3.Place the G sensor on a flat table.
4.Turn ignition switch ON.

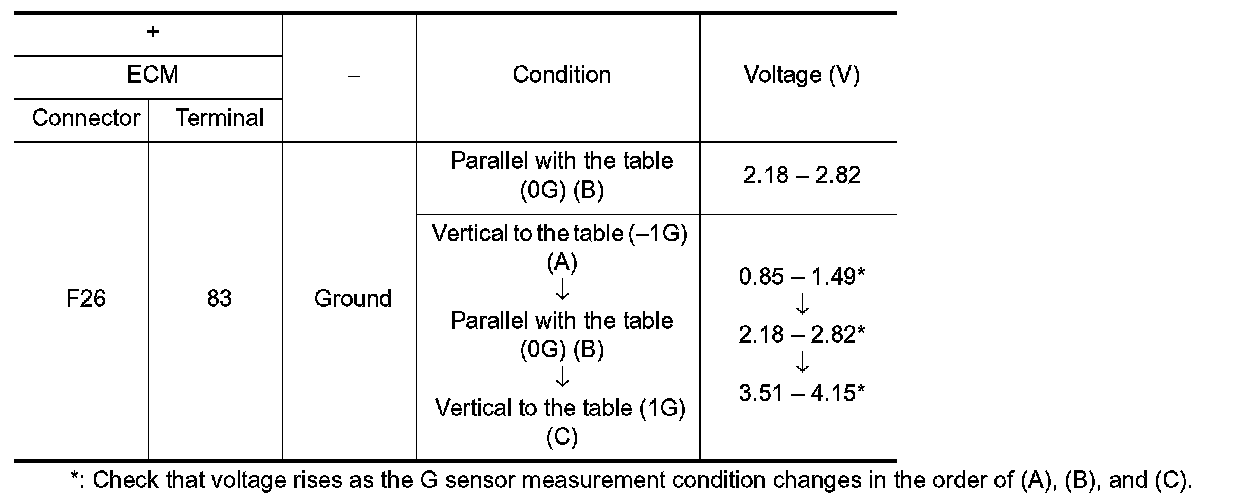

5.Check the voltage between ECM harness connector terminal and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace G sensor.
