P158A

P158A ECM

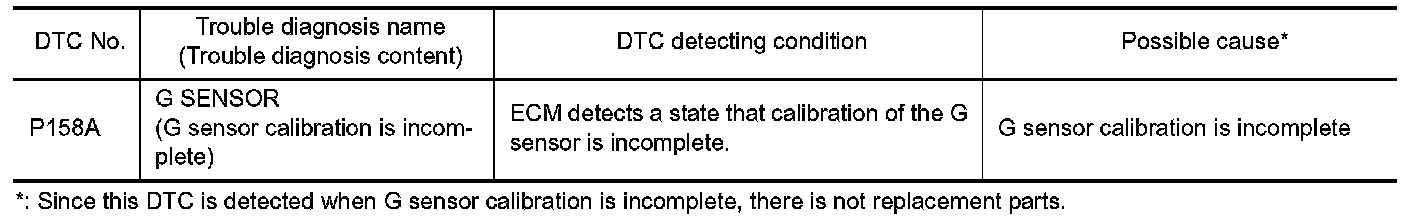

DTC Logic







1. PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.
1.Turn ignition switch OFF and wait at least 10 seconds.
2.Turn ignition switch ON.
3.Turn ignition switch OFF and wait at least 10 seconds.
- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Check DTC.
Is DTC detected?
YES- Proceed to .
NO- INSPECTION END


Diagnosis Procedure


1. PERFORM CALIBRATION OF G SENSOR

Perform calibration of G sensor. Work Procedure.
- INSPECTION END
