P1217
P1217 ENGINE OVER TEMPERATURE
DTC Logic
DTC DETECTION LOGIC
NOTE:
-If DTC P1217 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.
-If DTC P1217 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. P0607.

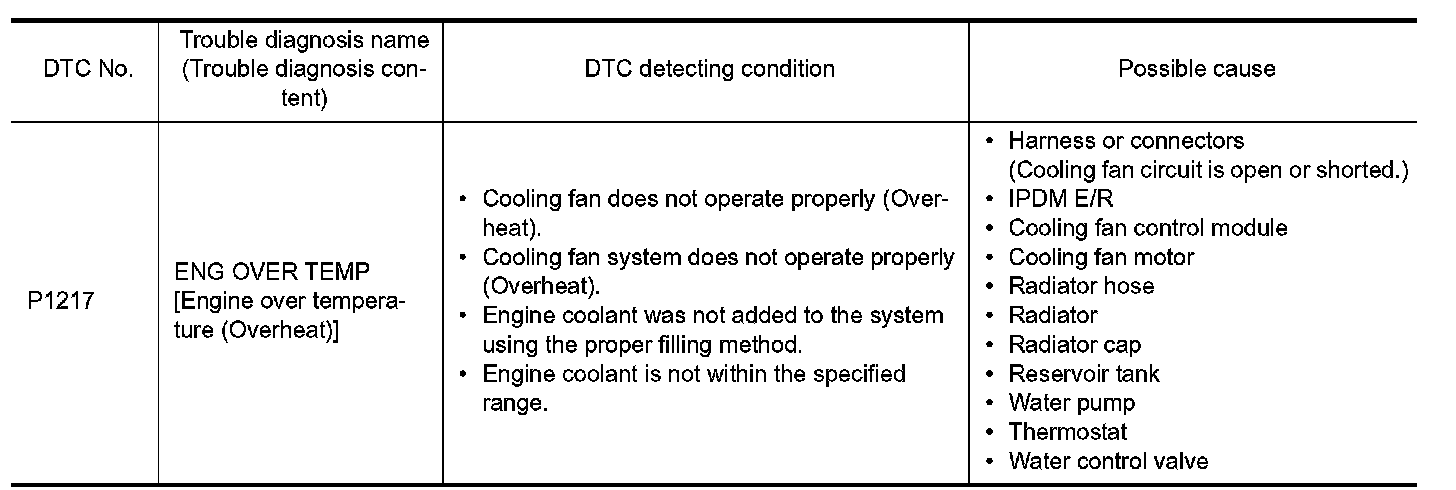

If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is indicated.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Draining Engine Coolant. Also, replace the engine oil. Refilling Engine Coolant.
1.Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to use coolant with the proper mixture ratio.
2.After refilling coolant, run engine to ensure that no water-flow noise is emitted.
DTC CONFIRMATION PROCEDURE
1. PERFORM COMPONENT FUNCTION CHECK
Perform component function check. .
NOTE:
Use component function check to check the overall function of the cooling fan. During this check, a DTC might not be confirmed.
Is the inspection result normal?
YES- INSPECTION END
NO- Proceed to .
Component Function Check
1. PERFORM COMPONENT FUNCTION CHECK-I
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pressure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up pressure to escape. Then turn the cap all the way off.

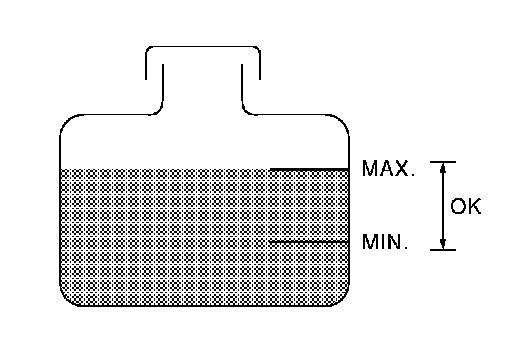

Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
Is the coolant level in the reservoir tank and/or radiator below the proper range?
YES- Proceed to .
NO- GO TO 2.
2. PERFORM COMPONENT FUNCTION CHECK-II
Confirm whether customer filled the coolant or not.
Did customer fill the coolant?
YES- Proceed to .
NO- GO TO 3.
3. PERFORM COMPONENT FUNCTION CHECK-III
With CONSULT
1.Turn ignition switch ON.
2.Perform "FAN DUTY CONTROL" in "ACTIVE TEST" mode of "ENGINE" using CONSULT.
3.Check that cooling fan speed varies according to the percentage.
Without CONSULT
1.Activate IPDM E/R auto active test and check cooling fan motors operation. With I-Key.
2.Check that cooling fan operates.
Is the inspection result normal?
YES- INSPECTION END
NO- Proceed to .
Diagnosis Procedure
1. CHECK COOLING FAN OPERATION
With CONSULT
1.Turn ignition switch ON.
2.Perform "FAN DUTY CONTROL" in "ACTIVE TEST" mode of "ENGINE" using CONSULT.
3.Check that cooling fan speed varies according to the percentage.
Without CONSULT
1.Activate IPDM E/R auto active test and check cooling fan motors operation. With I-Key.
2.Check that cooling fan operates.
Is the inspection result normal?
YES- GO TO 2.
NO- Proceed to Component Tests and General Diagnostics.
2. CHECK COOLING SYSTEM FOR LEAK-I
Check cooling system for leak. Inspection.
Is leakage detected?
YES- GO TO 3.
NO- GO TO 4.
3. CHECK COOLING SYSTEM FOR LEAK-II
Check the following for leak.
- Hose (Inspection.)
- Radiator (Inspection.)
- Water pump (Inspection.)
- Repair or replace malfunctioning part.
4. CHECK RADIATOR CAP
Check radiator cap. Service and Repair.
Is the inspection result normal?
YES- GO TO 5.
NO- Replace radiator cap. Exploded View.
5. CHECK THERMOSTAT
Check thermostat. Inspection.
Is the inspection result normal?
YES- GO TO 6.
NO- Replace thermostat. Removal And Installation.
6. CHECK WATER CONTROL VALVE
Check water control valve. Inspection.
Is the inspection result normal?
YES- GO TO 7.
NO- Replace water control valve. Exploded View.
7. CHECK ENGINE COOLANT TEMPERATURE SENSOR
P0116.
Is the inspection result normal?
YES- GO TO 8.
NO- Replace engine coolant temperature sensor. Exploded View.
8. OVERHEATING CAUSE ANALYSIS
If the cause cannot be isolated, check the Symptom Related Diagnostic Procedures.
- INSPECTION END
