P0611

P0611 ECM PROTECTION

Description

This DTC is detected when the ECM protective function is activated due to an extreme temperature increase in ECM, resulting from severe conditions such as heavy load driving.


DTC Logic

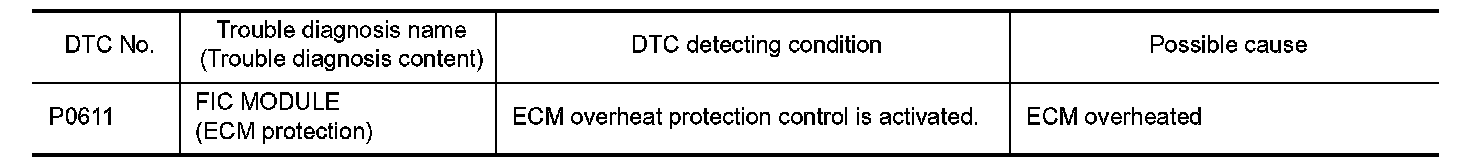

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

This DTC is displayed as protection function history. If no malfunction is detected after the diagnosis, the customer must be informed of the activation of the protection function.
- Proceed to .


Diagnosis Procedure


1. INSPECTION START

1.Perform DTC confirmation procedure. P0605.
2.Check 1st trip DTC.
Is DTC P0605 detected?
YES- Proceed to P0605.
NO- Explain the customer about the activation of the protection function.
