B26FB

B26FB CLUTCH SWITCH

DTC Logic

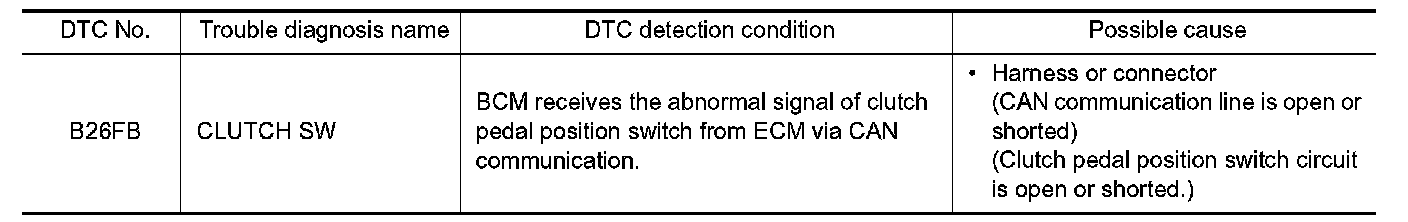

DTC DETECTION LOGIC

NOTE:
- If DTC B26FB is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
With Intelligent Key System.
- If DTC B26FB is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
With Intelligent Key System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Turn ignition switch ON.
2.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES - Go to .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

1.Turn ignition switch ON.
2.Select "Self diagnostic result" mode of BCM using CONSULT.
3.Touch "ERASE".
4.Perform DTC CONFIRMATION PROCEDURE for DTC B26FB. .
Is DTC detected?
YES- GO TO 2.
NO- INSPECTION END

2. CHECK CLUTCH PEDAL POSITION SWITCH CIRCUIT

Clutch Pedal Position Switch.
Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace the malfunctioning parts.

3. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
