B26E8

B26E8 CLUTCH INTERLOCK SWITCH

DTC Logic

NOTE:
- If DTC B26E8 is displayed with DTC B210F, first perform the trouble diagnosis for DTC B210F. Refer to
With Intelligent Key System.
- If DTC B26E8 is displayed with DTC B2110, first perform the trouble diagnosis for DTC B2110. Refer to
With Intelligent Key System.

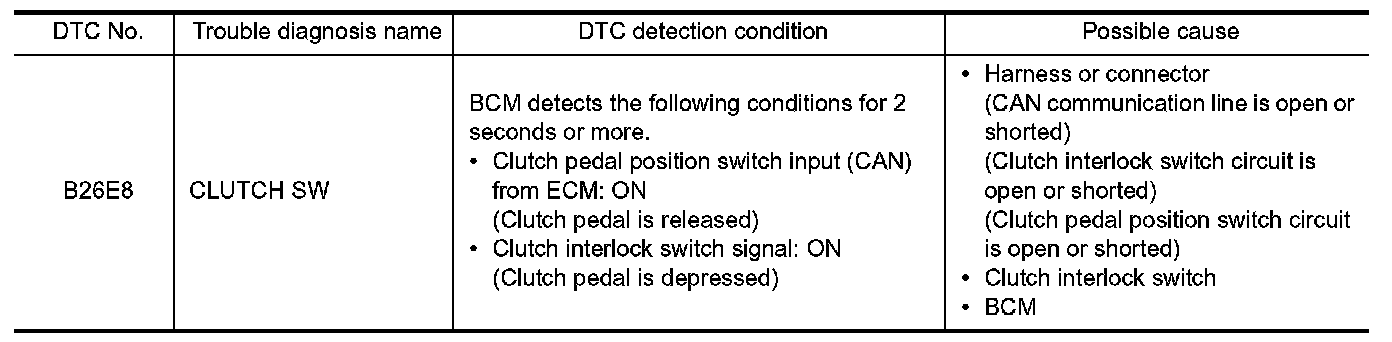

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE 1

1.Turn ignition switch ON.
2.Wait 2 seconds or more under the following conditions.
-Shift lever: In the Neutral position.
-Clutch pedal: Depressed
3.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES - Go to .
NO- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE 2

1.Release clutch pedal and wait 2 seconds or more.
2.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES - Go to .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

Perform inspection in accordance with procedure that confirms DTC.
Which procedure confirms DTC?
DTC confirmation procedure 1-GO TO 2.
DTC confirmation procedure 2-GO TO 3.

2. CHECK CLUTCH PEDAL POSITION SWITCH CIRCUIT

Clutch Pedal Position Switch.
Is the inspection result normal?
YES- GO TO 8.
NO- Repair or replace the malfunctioning parts.

3. CHECK FUSE

1.Turn power switch OFF.

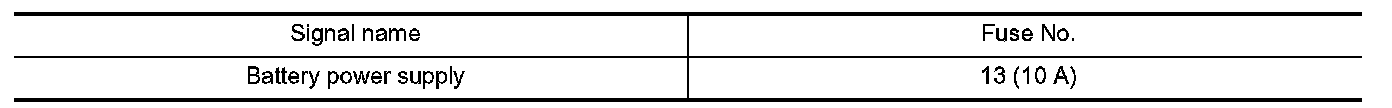

2.Check that the following fuse in the fuse block (J/B) is not blown.





Is the inspection result normal?
YES- GO TO 4.
NO- Replace the blown fuse after repairing the cause of blowing.

4. CHECK CLUTCH INTERLOCK SWITCH POWER SUPPLY

1.Disconnect clutch interlock switch connector.
2.Check voltage between clutch interlock switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace harness.

5. CHECK CLUTCH INTERLOCK SWITCH SIGNAL

1.Connect clutch interlock switch connector.

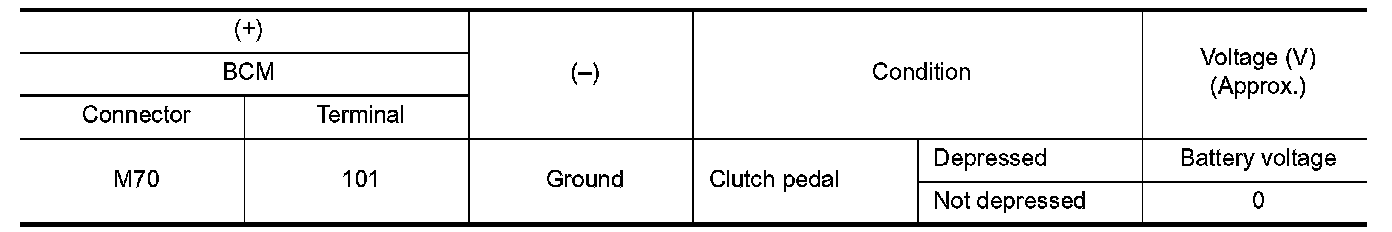

2.Check voltage between BCM harness connector and ground.





Is the inspection result normal?
YES- GO TO 9.
NO- GO TO 6.

6. CHECK CLUTCH INTERLOCK SWITCH SIGNAL CIRCUIT

1.Disconnect clutch interlock switch connector.
2.Disconnect BCM connector.

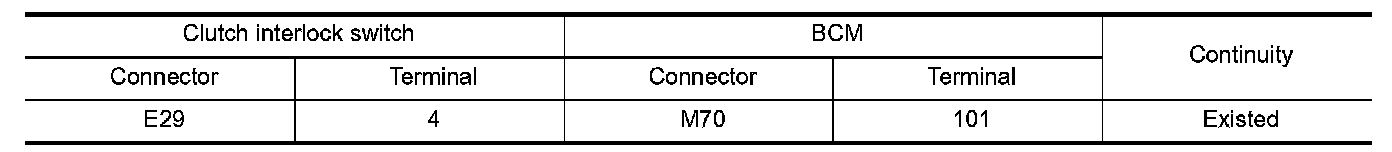

3.Check continuity between clutch interlock switch harness connector and BCM harness connector.





Is the inspection result normal?
YES- GO TO 7.
NO- Repair or replace harness.

7. CHECK CLUTCH INTERLOCK SWITCH

.
Is the inspection result normal?
YES- GO TO 8.
NO- Replace clutch interlock switch. Removal And Installation.

8. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END

9. REPLACE BCM

1.Replace BCM. With Intelligent Key System.
2.Perform initialization of BCM and registration of all Intelligent Key using CONSULT.
- INSPECTION END


Component Inspection


1. CHECK CLUTCH INTERLOCK SWITCH

1.Turn ignition switch OFF.
2.Disconnect clutch interlock switch connector.

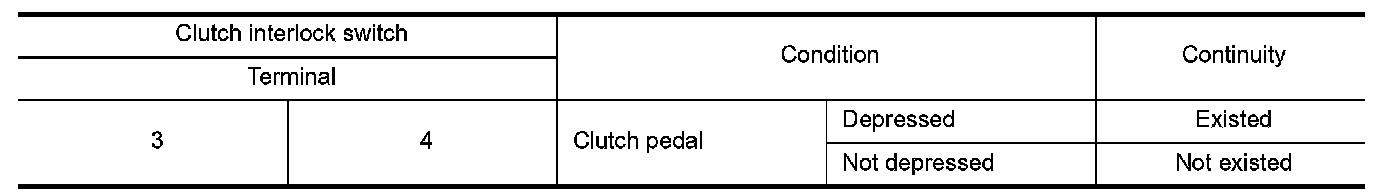

3.Check continuity between clutch interlock switch terminals.
.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace clutch interlock switch. Removal And Installation.
