B2608

B2608 STARTER RELAY

DTC Logic

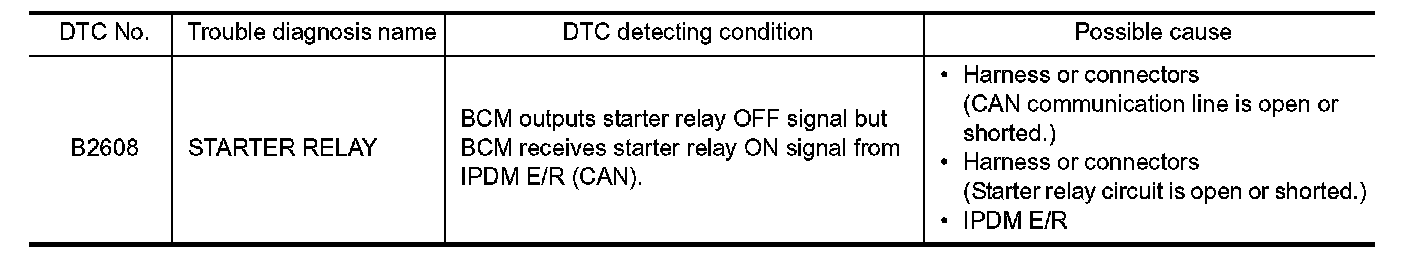

DTC DETECTION LOGIC

NOTE:
- If DTC B2608 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
With Intelligent Key System.
- If DTC B2608 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to
With Intelligent Key System.
- If DTC B2608 is displayed with DTC B210D (IPDM E/R), first perform the trouble diagnosis for DTC B210D.
With Intelligent Key System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

1.Press push-button ignition switch under the following conditions to start engine.
-Selector lever: In the P position
-Brake pedal: Depressed
-Shift lever: In the Neutral position
-Clutch pedal: Depressed
2.Wait 1 second after engine started.
3.Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Go to .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK DTC OF IPDM E/R

Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
Is DTC detected?
YES- Perform the trouble diagnosis related to the detected DTC. Testing and Inspection.
NO- GO TO 2.

2. CHECK STARTER RELAY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect IPDM E/R connector.
3.Disconnect BCM connector.

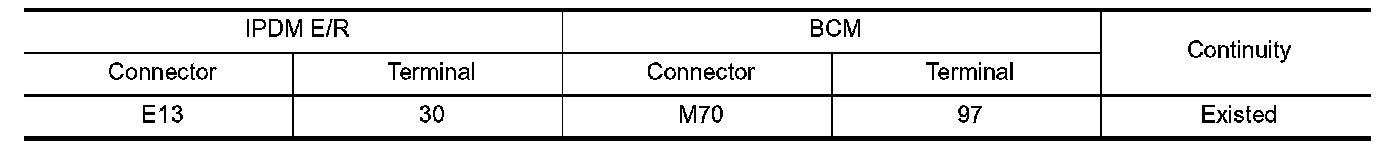

4.Check continuity between IPDM E/R harness connector and BCM harness connector.

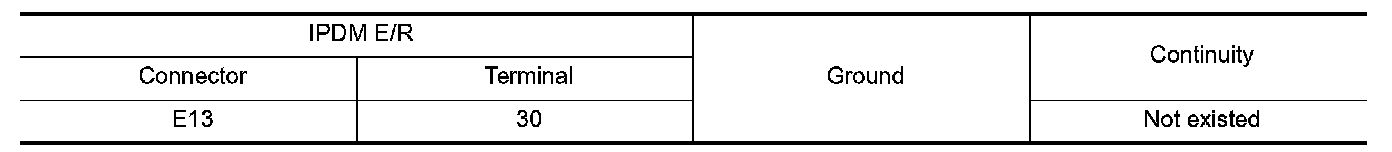

5.Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness.

3. REPLACE IPDM E/R

1.Replace IPDM E/R. IPDM E/R (With I-Key).
2.Perform DTC CONFIRMATION PROCEDURE for DTC B2608. .
Is DTC B2608 detected again?
YES- INSPECTION END
NO- GO TO 4.

4. REPLACE BCM

1.Replace BCM. With Intelligent Key System.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
- INSPECTION END
