Without Intelligent Key System

B210D STARTER RELAY

DTC Logic

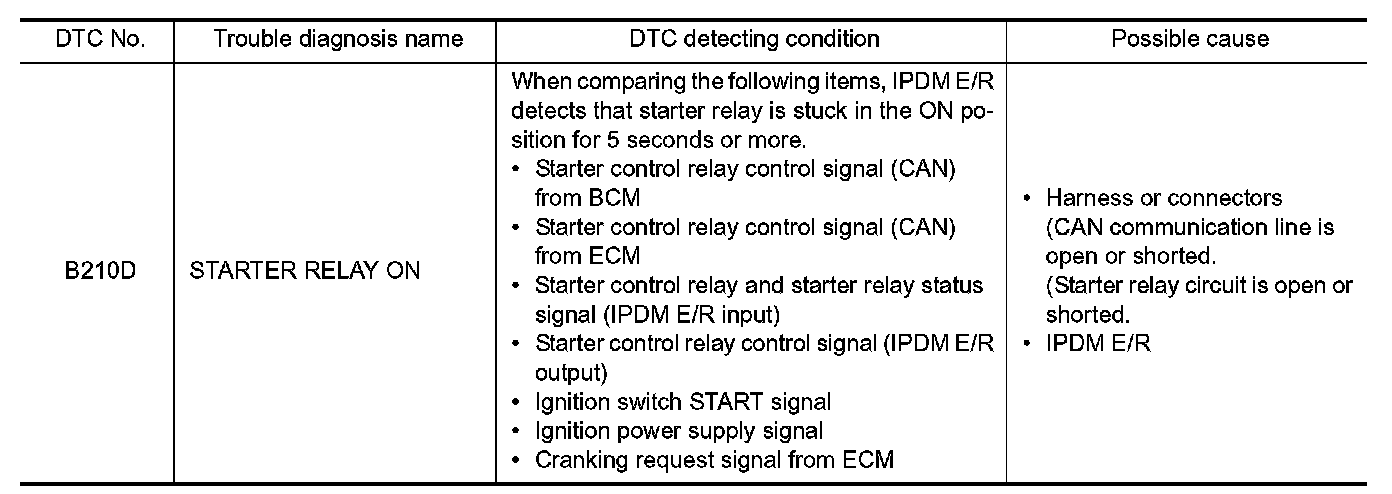

DTC DETECTION LOGIC

NOTE:
- If DTC B210D is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
IPDM E/R Without I-Key.
- If DTC B210D is displayed with DTC B209F, first perform the trouble diagnosis for DTC B209F. Refer to
Without Intelligent Key System.
- If DTC B210D is displayed with DTC B20A0, first perform the trouble diagnosis for DTC B20A0. Refer to
Without Intelligent Key System.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE 1

1.Press push-button ignition switch under the following conditions to start engine, and wait 5 seconds or more.
-Selector lever: In the P position
-Brake pedal: Depressed
2.Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
Is DTC detected?
YES- Go to .
NO- GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE 2

1.Stop engine.
2.Perform DTC CONFIRMATION PROCEDURE for DTC P1650. P1650.
3.Turn ignition switch ON.
4.Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
Is DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. CHECK STARTER RELAY CONTROL SIGNAL

1.Turn ignition switch ON.

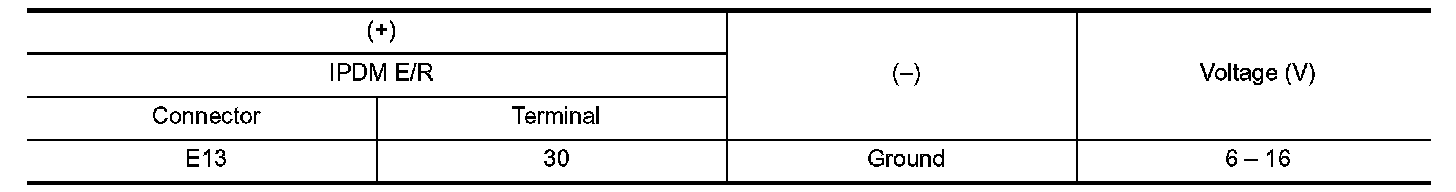

2.Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 2.

2. CHECK CRANKING REQUEST SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect IPDM E/R connector.
3.Disconnect ECM connector.

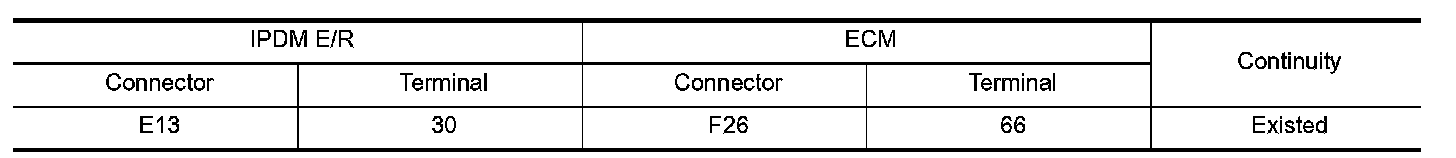

4.Check continuity between IPDM E/R harness connector and ECM harness connector.





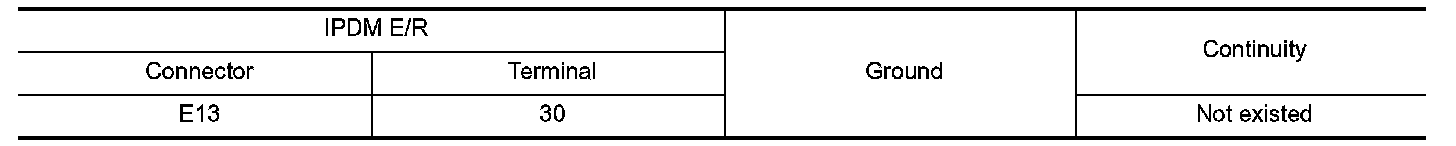

5.Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- Repair or replace harness.

3. REPLACE IPDM E/R

1.Replace IPDM E/R. IPDM E/R (Without I-Key).
2.Perform DTC CONFIRMATION PROCEDURE for DTC B210D. .
Is DTC detected?
YES- GO TO 4.
NO- INSPECTION END

4. REPLACE ECM

Replace ECM.
Service and Repair.
- INSPECTION END

5. PERFORM DTC CONFIRMATION PROCEDURE AGAIN

1.Turn ignition switch ON.
2.Select "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
3.Touch "ERASE".
4.Perform DTC CONFIRMATION PROCEDURE for DTC B210D. .
Is DTC detected?
YES- Replace IPDM E/R. IPDM E/R (Without I-Key).
NO- INSPECTION END
