With Intelligent Key System

B210B STARTER CONTROL RELAY

DTC Logic

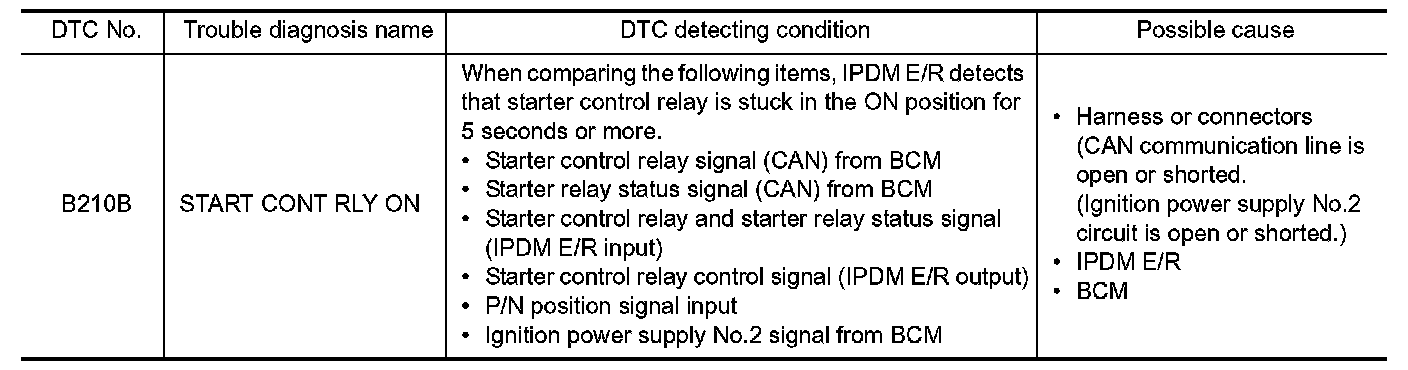

DTC DETECTION LOGIC

NOTE:
If DTC B210B is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. IPDM E/R With I-Key.






DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE 1

1.Press push-button ignition switch under the following conditions to start engine, and wait 5 seconds or more.
-Selector lever: In the P position
-Brake pedal: Depressed
-Shift lever: In the Neutral position
-Clutch pedal: Depressed
2.Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
Is DTC detected?
YES- Go to .
NO (M/T models)-INSPECTION END
NO (CVT models)-GO TO 2.

2. PERFORM DTC CONFIRMATION PROCEDURE 2

1.Stop engine.
2.Perform DTC CONFIRMATION PROCEDURE for DTC P1650. P1650.
3.Turn ignition switch ON.
4.Check DTC in "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
Is DTC detected?
YES- .
NO- INSPECTION END


Diagnosis Procedure


1. INSPECTION START

Perform inspection in accordance with procedure that confirms DTC.
Which procedure confirms DTC?
DTC confirmation procedure 1-GO TO 2.
DTC confirmation procedure 2-GO TO 4.

2. CHECK DTC OF BCM

Check DTC in "Self Diagnostic Result" mode of "BCM" using CONSULT.
Is DTC detected?
YES- Perform the trouble diagnosis related to the detected DTC. Testing and Inspection.
NO- GO TO 3.

3. INSPECTION START

1.Turn ignition switch ON.
2.Select "Self Diagnostic Result" mode of "IPDM E/R" using CONSULT.
3.Touch "ERASE".
4.Perform DTC CONFIRMATION PROCEDURE for DTC B210B. .
Is DTC detected?
YES- GO TO 6.
NO- INSPECTION END

4. CHECK IGNITION POWER SUPPLY NO.2 SIGNAL

1.Turn ignition switch OFF.
2.Disconnect IPDM E/R connector.

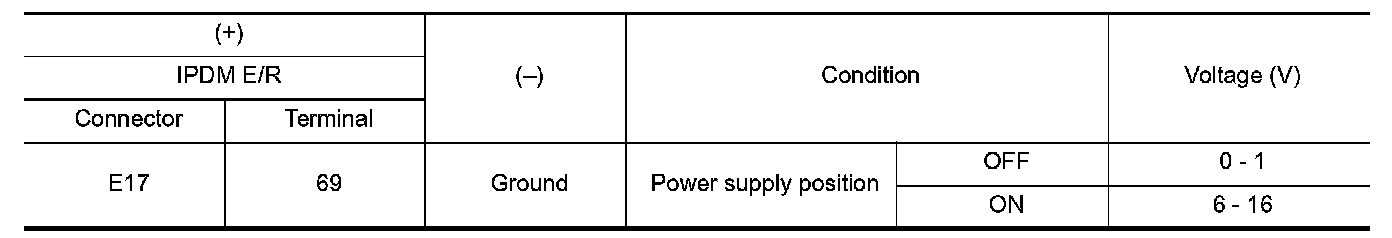

3.Check voltage between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- Replace IPDM E/R. IPDM E/R (With I-Key).
NO- GO TO 5.

5. CHECK BCM INPUT SIGNAL CIRCUIT

1.Disconnect BCM connector.

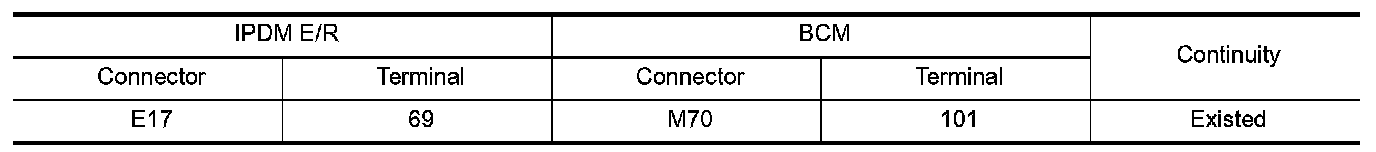

2.Check continuity between IPDM E/R harness connector and BCM harness connector.

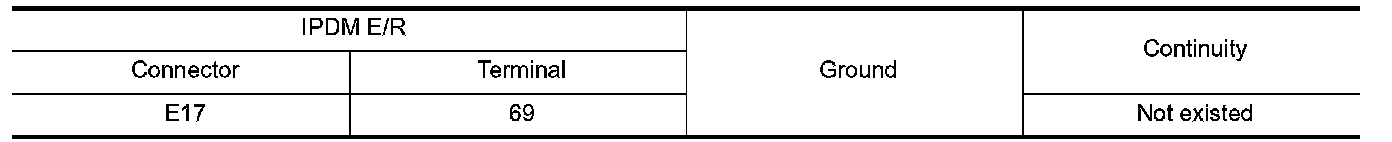

3.Check continuity between transmission range switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace harness.

6. REPLACE BCM

1.Replace BCM. With Intelligent Key System.
2.Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.
3.Perform DTC CONFIRMATION PROCEDURE for DTC B210B. .
Is the inspection result normal?
YES- INSPECTION END
NO- Replace IPDM E/R. IPDM E/R (With I-Key).
