Rear Window Defogger Power Supply And Ground Circuit

REAR WINDOW DEFOGGER POWER SUPPLY AND GROUND CIRCUIT

Description

Heats the heating wire with the power supply from the rear window defogger relay to prevent the rear window from fogging up.


Component Function Check


1. CHECK REAR WINDOW DEFOGGER

Check that the heating wire of rear window defogger is heated when turning the rear window defogger switch
ON.
Is the inspection result normal?
YES- Rear window defogger is OK.
NO- Refer to "Diagnosis Procedure".


Diagnosis Procedure

Regarding Wiring Diagram information, Rear Window Defogger Coupe or Rear Window Defogger Sedan.

1. CHECK FUSES

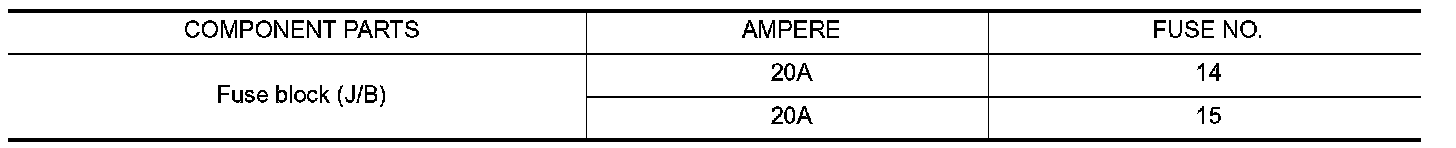

Check if any of the following fuses in fuse block (J/B) are blown.





Is the inspection result normal?
YES- GO TO 2
NO- If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2. CHECK REAR WINDOW DEFOGGER POWER SUPPLY CIRCUIT

1.Turn ignition switch ON.
DEF
2.Check voltage between fuse block (J/B) connector and ground.





Is the inspection result normal?
YES- GO TO 3
NO- Replace fuse block (J/B).

3. CHECK POWER SUPPLY CIRCUIT






1.Turn ignition switch ON.
2.Check voltage between rear window defogger connector and ground.





Is the inspection result normal?
YES- GO TO 4
NO- GO TO 5

4. CHECK GROUND CIRCUIT






1.Turn ignition switch OFF.
2.Disconnect rear window defogger.

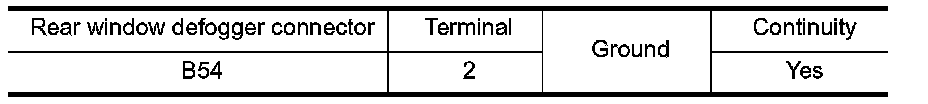

3.Check continuity between rear window defogger connector and ground.





Is the inspection result normal?
YES- GO TO 7
NO- Repair or replace harness.

5. CHECK HARNESS CONTINUITY 1






1.Turn ignition switch OFF.
2.Disconnect condenser and rear window defogger.

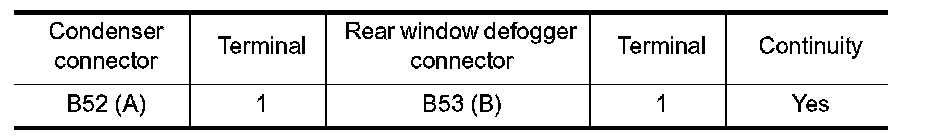

3.Check continuity between condenser connector (A) and rear window defogger connector (B).





Is the inspection result normal?
YES- GO TO 6
NO- Replace condenser. Coupe or Sedan.

6. CHECK HARNESS CONTINUITY 2






1.Disconnect fuse block (J/B).

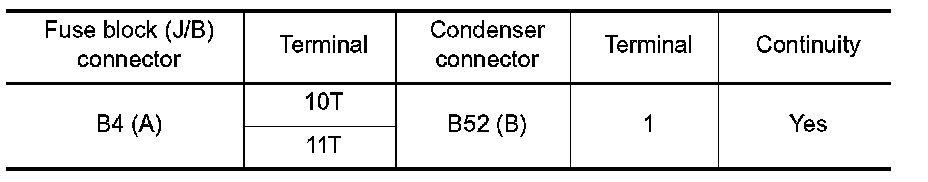

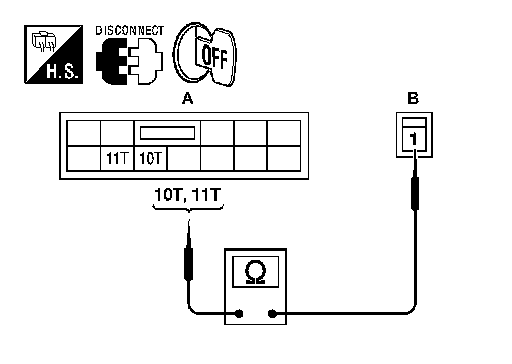

2.Check continuity between fuse block (J/B) connector (A) and condenser connector (B).





Is the inspection result normal?
YES- Check intermittent incident. Intermittent Incident.
NO- Replace or repair harness.

7. CHECK FILAMENT

Check filament.
Refer to "Component Inspection".
Is the inspection result normal?
YES- Intermittent Incident.
NO- Repair filament. Filament.


Component Inspection


1. CHECK FILAMENT

Check the filament for damage or open circuits.
Filament.
Is the inspection result normal?
YES- Inspection End.
NO- Repair filament. Filament.
