CENTER CONSOLE ASSEMBLY

Removal and Installation


REMOVAL


CAUTION:
Whenever a suitable tool is used, always wrap a cloth around the end of the tool to protect components from damage.
1.Remove the CVT or MT finisher. CVT Finisher (CVT) or Exploded View (MT).

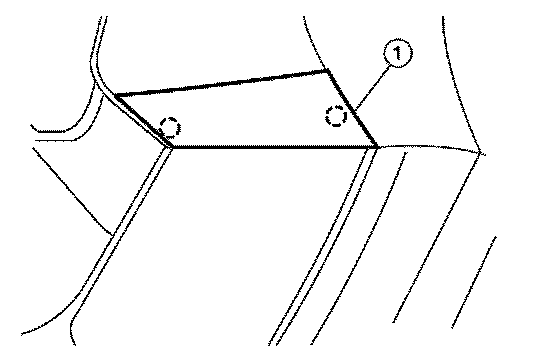

2.Release the pawls using a suitable tool and then remove cluster lid D (1).
Broken Circle indicates: Pawl

3.Release the clips using a suitable tool, then remove the finisher/storage bin.
4.Remove the instrument lower panel LH. Instrument Lower Panel LH.
5.Remove the console side finishers (RH/LH).

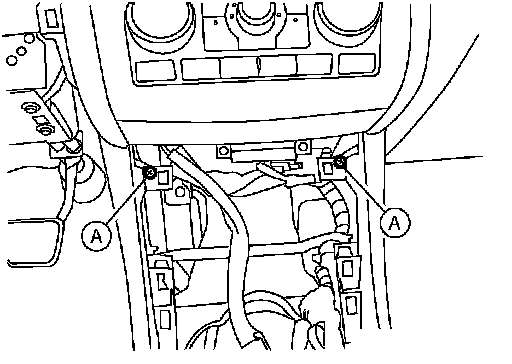

6.Remove the console upper screws (A).

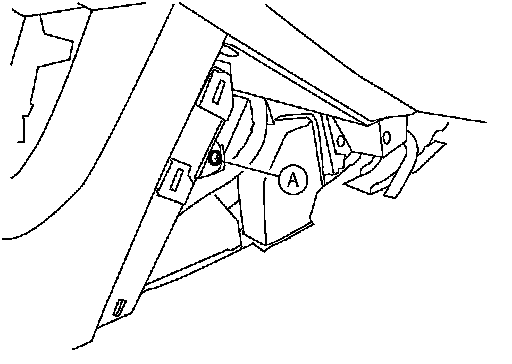

7.Remove the console side screws (A).
8.Position the front seats (RH/LH) forward.





9.Remove the console rear screw covers (RH/LH).

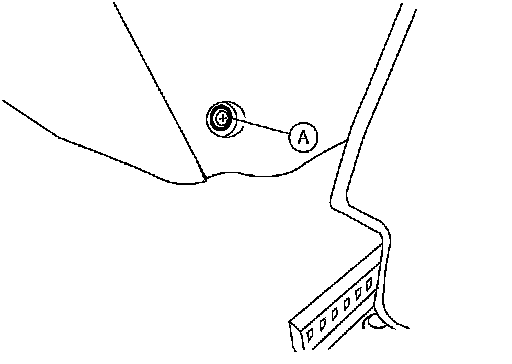

10.Remove the console rear screw (A) from each side (RH/LH).
11.Disconnect necessary harness connectors, then remove the console assembly.

INSTALLATION

Installation is in the reverse order of removal.
