DOOR

REAR DOOR : Adjustment


ADJUSTMENT

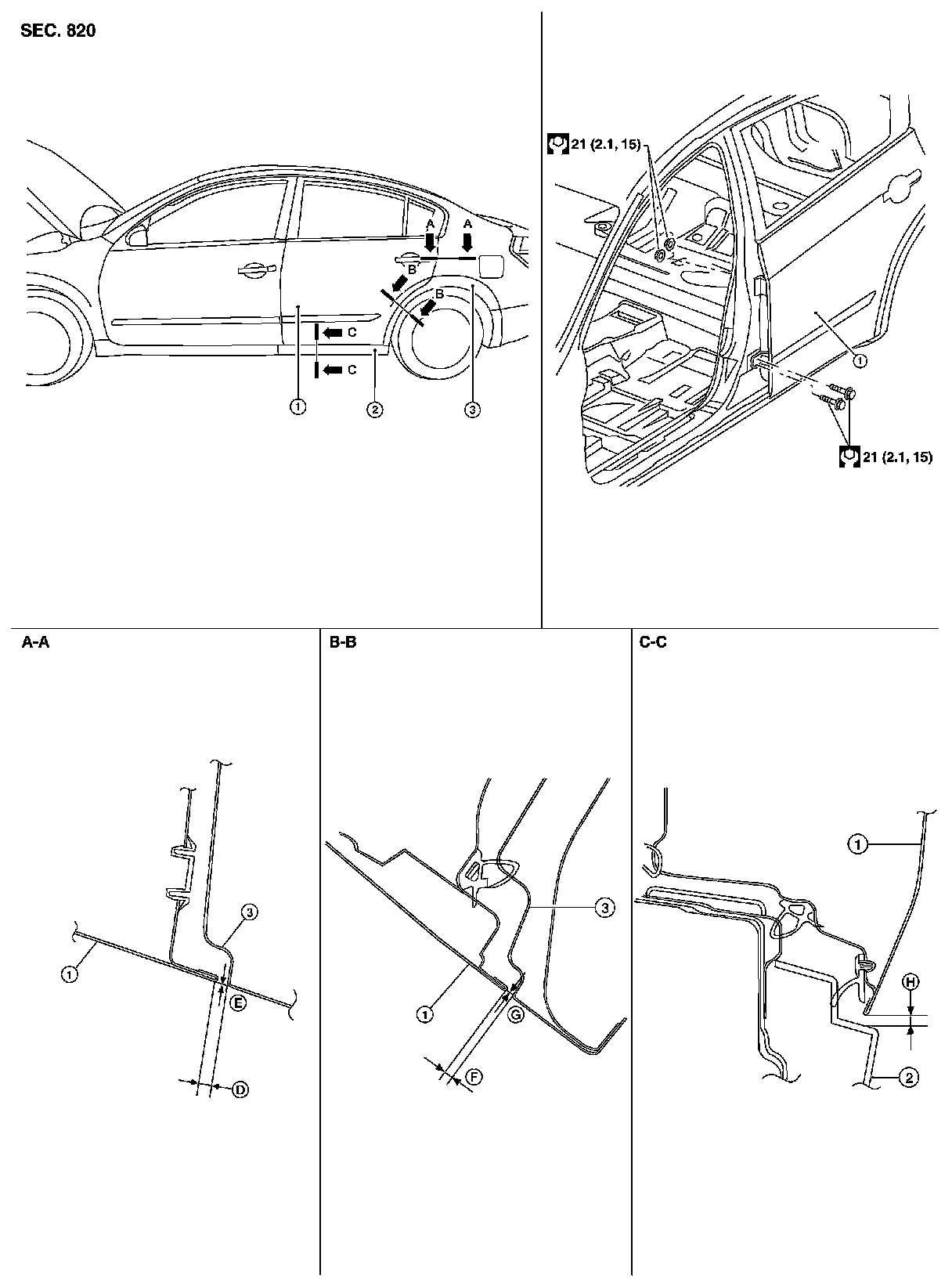

LONGITUDINAL CLEARANCE
1.Remove the center pillar upper and lower trim. Removal And Installation Sedan.
2.Loosen the upper pillar hinge nuts.
3.Loosen the lower pillar hinge bolts.

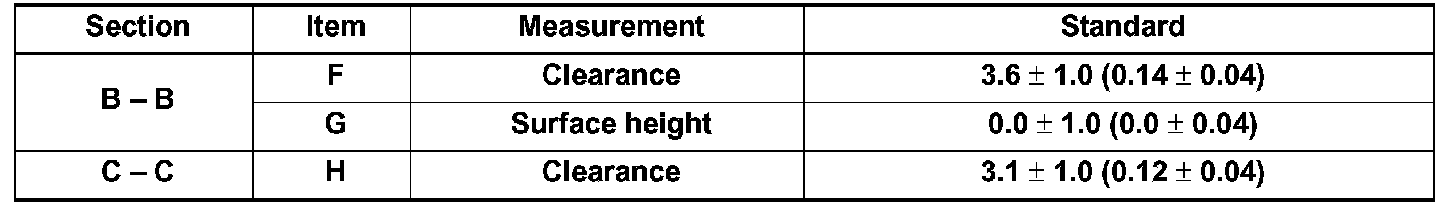

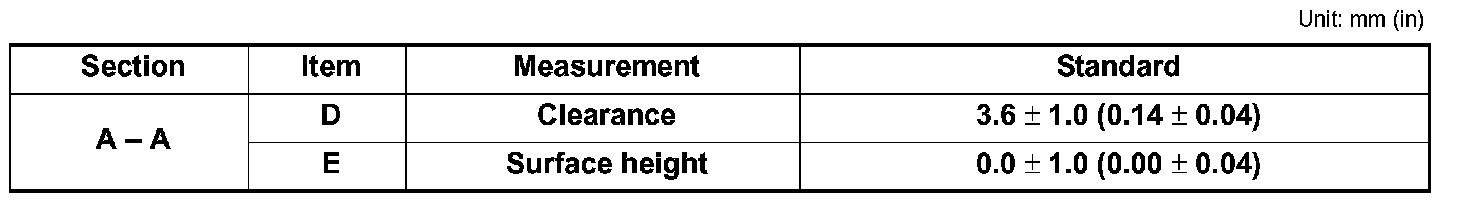

4.Move the rear door forward or backward as necessary until within specifications.
5.Tighten the lower pillar hinge bolts.
6.Tighten the upper pillar hinge nuts.
7.Install the center pillar upper and lower trim. Removal And Installation Sedan.
SURFACE HEIGHT ADJUSTMENT

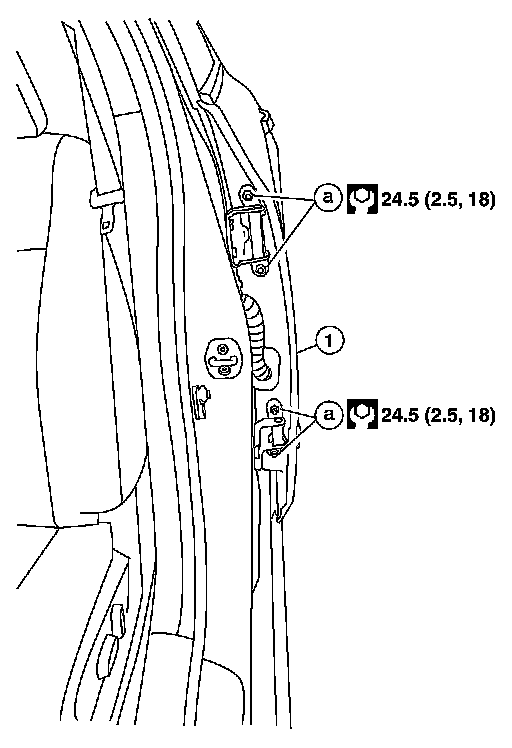

1.Loosen the rear door hinge nuts (a).
2.Move the top and/or the bottom of the rear door (1) in or out as necessary until it is within specifications.
3.Tighten the rear door hinge nuts (a) to specification.
