Removal and Installation

SHIFT CONTROL SYSTEM


Removal and Installation

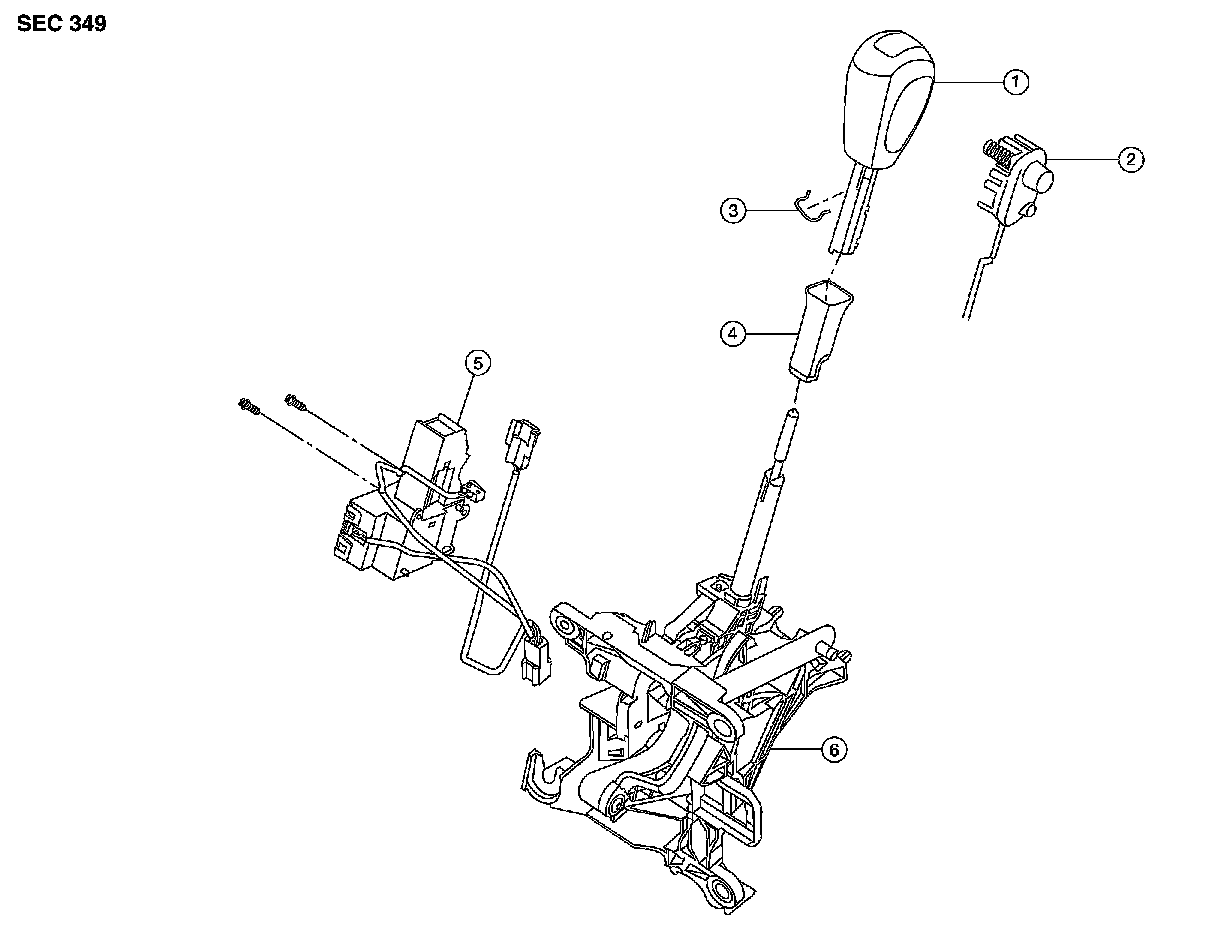

CVT SHIFT SELECTOR ASSEMBLY COMPONENTS

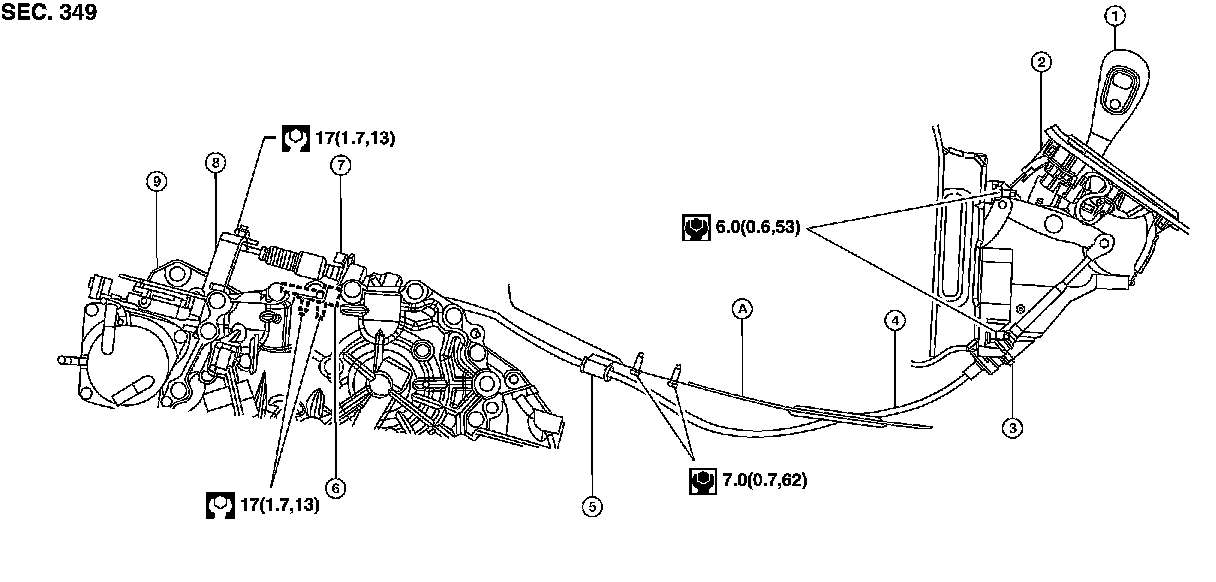

CONTROL CABLE COMPONENTS











REMOVAL

CAUTION:
Make sure that parking brake is applied before removal and installation.
1. Place the shift selector in the "P" position.
2. Remove the IP center assembly. Component Parts.
3. Disconnect the CVT shift selector assembly harness connector.
4. Remove the key interlock cable from the CVT shift selector assembly. Service and Repair, "Removal and
Installation".
5. Remove the control cable from the CVT shift selector assembly.
6. Remove the nuts and the CVT shift selector assembly.

INSTALLATION
Installation is in the reverse order of removal.

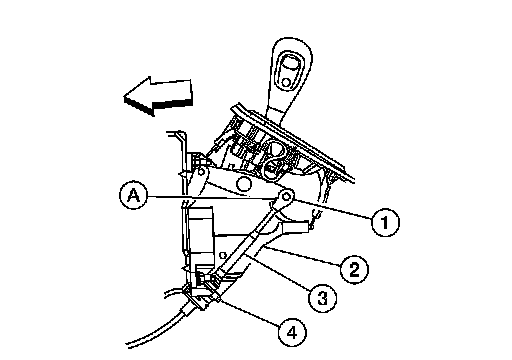

- When installing the control cable (3) to the CVT shift selector assembly (2), make sure that the control cable socket is fully pressed into the CVT shift selector assembly (2), and the control cable end (1) is fully pressed in with the ribbed surface (A) facing towards the front of the vehicle.
Arrow Indicates Vehicle Front
- After installation is completed, adjust and check the CVT position.
Shift Control System and Testing and Inspection CVT Shift Control System, "Checking of CVT Position".
