Yaw Rate Sensor: Service and Repair

G SENSOR


Removal and Installation


REMOVAL
1. Remove center console. Removal And Installation.
2. Disconnect harness connector.

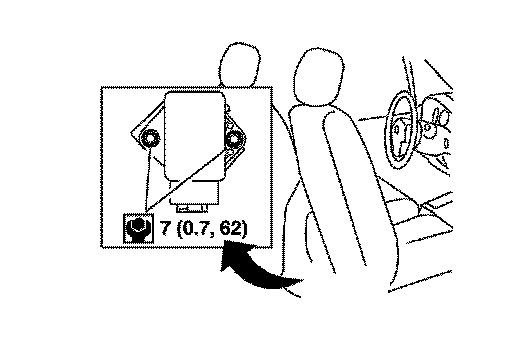

3. Remove attaching nuts and remove yaw rate/side/decel G sensor.

CAUTION:
- Do not drop or strike the yaw rate/side/decel G sensor.
- Do not use power tools to remove or install yaw rate/side/decel G sensor.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
- Do not drop or strike the yaw rate/side/decel G sensor.
