Transmission Position Sensor/Switch: Service and Repair

ON-VEHICLE SERVICE


Transmission Range Switch

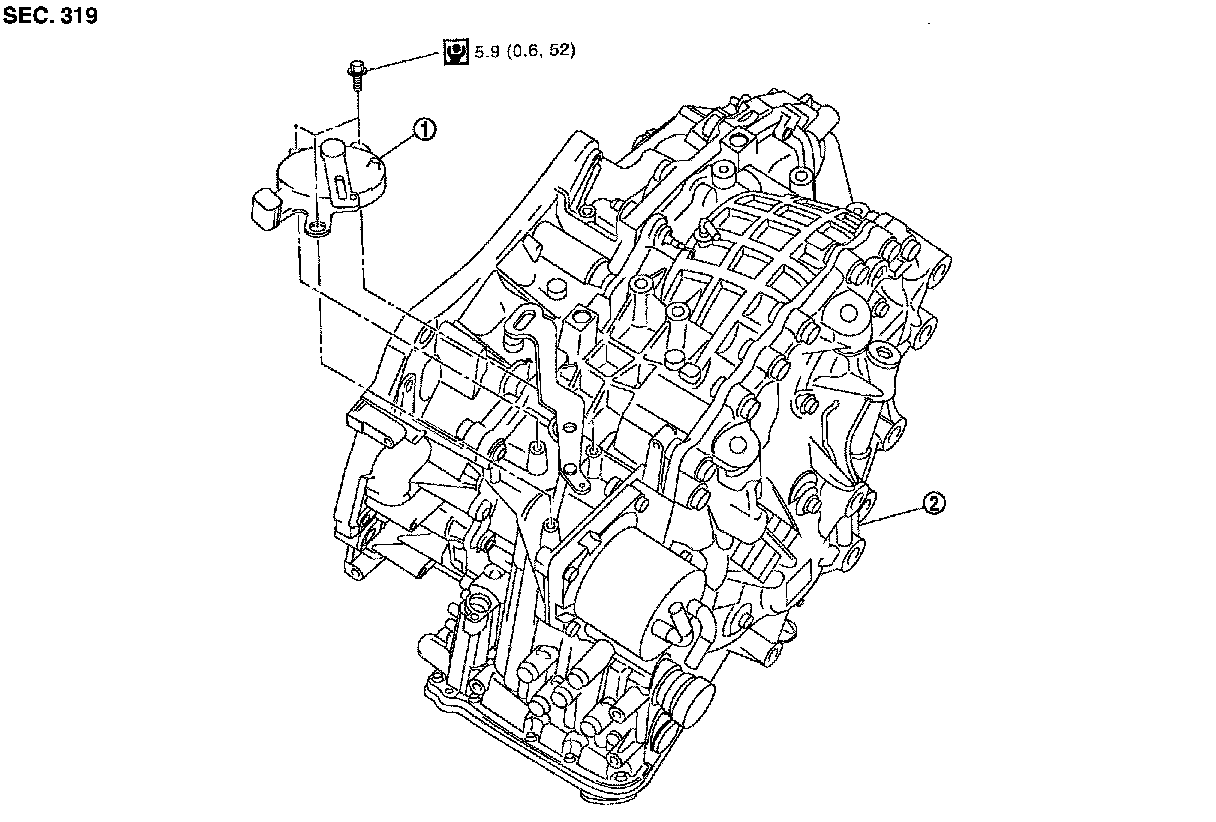

COMPONENTS











NOTE:
- Align transmission range switch position when installing.
- After installation of transmission range switch, check the continuity of transmission range switch. CVT Shift Control System.
- After installation is complete, adjust and check CVT position. Shift Control System, Testing and Inspection.
