Removal and Replacement

HEADLAMP (FOR USA)


Removal and Installation


REMOVAL
1. Remove front bumper fascia. Service and Repair.

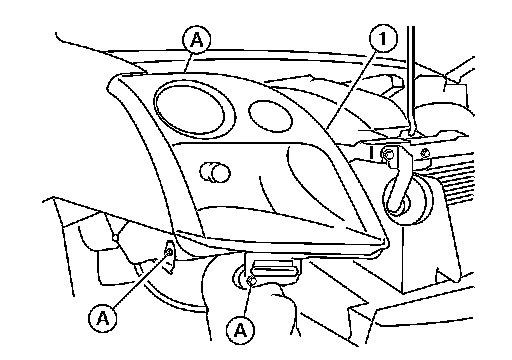

2. Remove the front combination lamp assembly bolts (A).
3. Pull the front combination lamp assembly (1) toward the vehicle front, detach the harness clip, disconnect connector, and remove the lamp assembly.

INSTALLATION
Installation is in the reverse order of removal.
- After installation, perform aiming adjustment. Adjustments.
